UPS Eaton Ellipse ECO 1200 USB IEC 1200VA 750W With 4 Hours Deep Discharge Protection
Eaton Ellipse ECO 1200 USB IEC UPS 1200VA 750W Eaton Ellipse ECO 500/650/800/1200/1600 VA Thanks to its efficient electrical design and EcoControl function (USB models), the Ellipse ECO saves up to 25% energy compared to previous generation inverters. It has a battery backup power supply that ...
Eaton Ellipse ECO 1200 USB
,Eaton Ellipse ECO UPS
,UPS Eaton Ellipse ECO 1200VA
Eaton Ellipse ECO 1200 USB IEC UPS 1200VA 750W

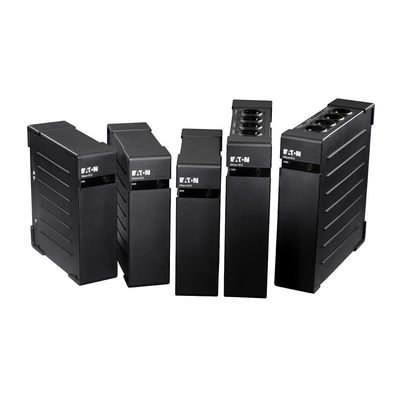

Eaton Ellipse ECO
500/650/800/1200/1600 VA
- Thanks to its efficient electrical design and EcoControl function (USB models), the Ellipse ECO saves up to 25% energy compared to previous generation inverters.
- It has a battery backup power supply that ensures the proper operation of your equipment in the event of a power outage.
- The Eaton Ellipse ECO also offers effective protection against damage due to power surges.
- It contains high-performance surge protection according to IEC 61643-1, which also protects Ethernet data connections, the Internet and telephone lines.
Ease of integration and installation
- The Eaton Ellipse ECO inverter is equipped with four sockets (models 500/650/800) or eight sockets (models 1200/1600) in IEC format, which makes it easy to connect typical IT equipment, including peripherals.
- Thanks to its particularly flat design, the Ellipse ECO can be installed vertically under a desk, horizontally under a monitor, in a 19" rack (2U kit optional) or wall-mounted.
- Eco Control function (USB models) to automatically turn off peripherals and save up to 25% energy.
- Standard surge arrester inverter IEC 61643-1
- All USB models come standard with USB cable and Eaton power management software (for Windows 10, Windows 8, Windows 7, Vista, XP, Linux and Mac OS) on CD.
- The HID-compatible interface ensures compatibility with all common operating systems, even without additional drivers.
Eaton Ellipse Eco 1200/1600 VA
1. 4 outlets with surge protection and battery backup
2. 4 outlets with overvoltage protection
2a. 2 EcoControl sockets
3. telephone/Internet and Ethernet line protection
4. USB port
5. replaceable batteries
6. Reset button in case of overload (circuit breaker)
| Specification | 500 | 650 | 650 USB | 800 USB | 1200 USB | 1600 USB |
| Rated power (VA/W) | 500VA / 300W | 650VA / 400W | 650VA / 400W | 800VA / 500W | 1200VA / 750W | 1600VA / 1000W |
| Application | ||||||
| Sockets Number | 4 | 4 | 4 | 4 | 8 | 8 |
| Characteristic | ||||||
| Nominal input voltage | 230 V | |||||
| Input voltage | 184V - 264V (adjustable to 161V - 284V) | |||||
| Output voltage | 230V (adjustable to 220V, 230V, 240V) | |||||
| Frequency | 50-60Hz automatic selection | |||||
| Input protection | Resettable circuit breaker | |||||
| Characteristic | ||||||
| Energy-saving design | Yes | Yes | Yes | Yes | Yes | Yes |
| EcoControl function | - | - | 20% | 20% | 25% | 25% |
| Surge protection | ||||||
| Battery | ||||||
| Battery type | Replaceable sealed lead-acid battery | |||||
| Automatic battery test | Yes | Yes | Yes | Yes | Yes | Yes |
| Cold start | Yes | Yes | Yes | Yes | Yes | Yes |
| Deep discharge protection | 4hours | 4hours | 4hours | 4hours | 4hours | 4hours |
| Battery replacement indicator | LED+ Audible Alarm | |||||
| Battery operating time at 50% load | 9mins | 9mins | 9mins | 11mins | 10mins | 11mins |
| Battery operating time at 70% load | 5mins | 6mins | 6mins | 6mins | 6mins | 6mins |
| Communication | ||||||
| Communication port | - | - | USB interface | USB interface | USB interface | USB interface |
| Software | Comes standard with Eaton smart power software (compatible with: Windows, Mac OS X, Linux) | |||||
| Line protection | Telephone / Fax / Modem / Internet and Ethernet | |||||
| Standard | ||||||
| Security/EMC | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB, CE | |||||
| Surge protection | IEC 61643-1 | |||||
| Size and weight | ||||||
| Size(mm) | 263 x 81 x 235 | 263 x 81 x 235 | 263 x 81 x 235 | 263 x 81 x 235 | 305 x 81 x 312 | 305 x 81 x 312 |
| Weight(kg) | 2.9 kg | 3.6 kg | 3.6 kg | 4.1 kg | 6.7 kg | 7.8 kg |
Key Specifications
- 480vAC Compatible
- UL Listed
- UL Listed UPS
-
