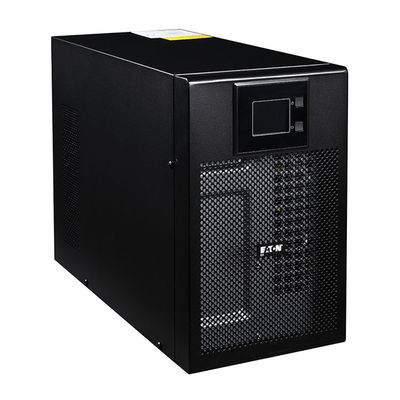

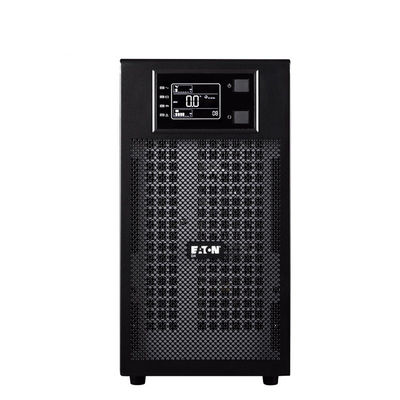

Eaton 1KW 2KW 3KW 6KW 10KW 15KW 20KW Single Phase Tower UPS for Security/Monitoring/Alarm
Product nameEaton DX UPSPower level1-20 KVAForm FactorTowerVoltage220/230/240VRated frequency40 Hz– 70 HzInput Voltage220/230/240VInput voltage range100VAC-300VAC / 120VAC-275VACRated input frequency40 Hz– 70 HzEfficiency98%Battery typeLead-acid batteriesBattery voltage24V/48V/72V/180V/192VBackup ...
Eaton single phase tower UPS
,Eaton UPS for security systems
,Eaton tower UPS with warranty
Product name | Eaton DX UPS | ||
Power level | 1-20 KVA | ||
Form Factor | Tower | ||
Voltage | 220/230/240V | ||
Rated frequency | 40 Hz– 70 Hz | ||
Input Voltage | 220/230/240V | ||
Input voltage range | 100VAC-300VAC / 120VAC-275VAC | ||
Rated input frequency | 40 Hz– 70 Hz | ||
Efficiency | 98% | ||
Battery type | Lead-acid batteries | ||
Battery voltage | 24V/48V/72V/180V/192V | ||
Backup time (standard machine) 100% linear load | 4 minutes | ||

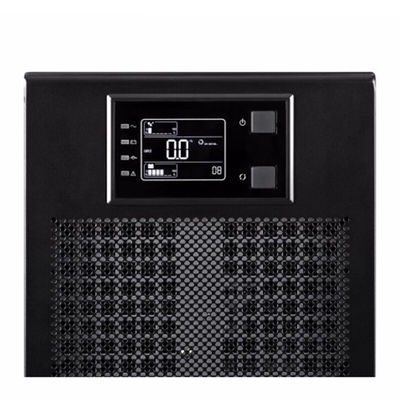

Interface | LCD+LED | ||

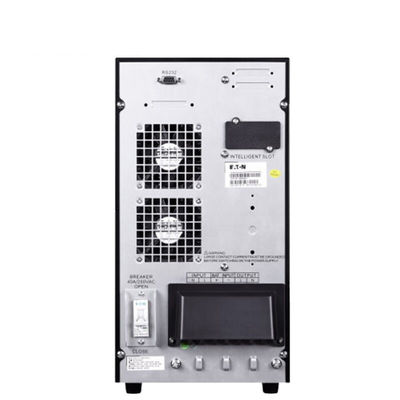

Communication | RS232 smart card slot | ||
Options | SNMPWEB card, CMC card, AS/400 card | ||
Operating temperature | 0 to 40°C | ||
Typical noise level | 55dB | ||
Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 | ||
EMC | IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B | ||
Approvals & marking | CE /CB report (TUV) / cULus / EAC / RCM / BIS | ||
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
-
