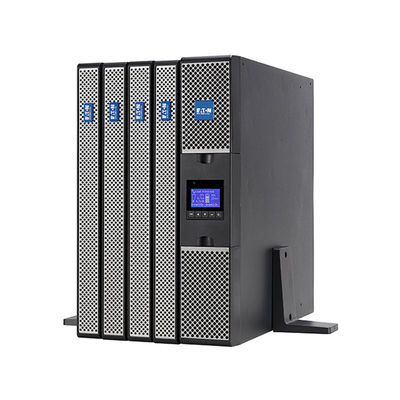

Eaton 9PX Lithium 1000VA 1500VA 2200VA 3000VA Online UPS for Security / Monitoring / Alarm
Product nameEaton 9PX Lithium UPSPower level1KVA-3KVAForm FactorRack/TowerTechnologyOnline UPSRated frequency40-70 HzInput Voltage200/208/220/230/240VOutput Voltage200/208/220/230/240VEfficiency98%Short circuit current90A/120AOverload capacity102-110% : 120s, 110-125%: 60s, 125-150%: 10s, >150%: ...
Eaton 9PX Lithium UPS
,Online UPS for security systems
,Eaton UPS with lithium battery
Product name | Eaton 9PX Lithium UPS | ||
Power level | 1KVA-3KVA | ||
Form Factor | Rack/Tower | ||
Technology | Online UPS | ||
Rated frequency | 40-70 Hz | ||
Input Voltage | 200/208/220/230/240V | ||
Output Voltage | 200/208/220/230/240V | ||
Efficiency | 98% | ||
Short circuit current | 90A/120A | ||
Overload capacity | 102-110% : 120s, 110-125%: 60s, 125-150%: 10s, >150%: 900ms | ||
Battery management | ABM® and temperature compensated charging method (user selectable), automatic battery test, deep discharge protection | ||
Communication Ports | 1 USB port + 1 RS232 serial port and relay contacts | ||
Communication Slot | 1 slot for Network-MS board (standard in Netpack version), ModBus-MS or Relay-MS board. | ||
Operating temeprature | 0 ~ 40°C | ||
Noise level | <50db | ||
Safety | IEC/EN 62040-1, UL 1778（1:1） | ||
EMC, Performance | IEC/EN 62040 -2, FCC Class A（1:1），IEC/EN 62040-3 | ||
Approvals | CE，CB（TUV），UL（1:1） | ||
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
-
