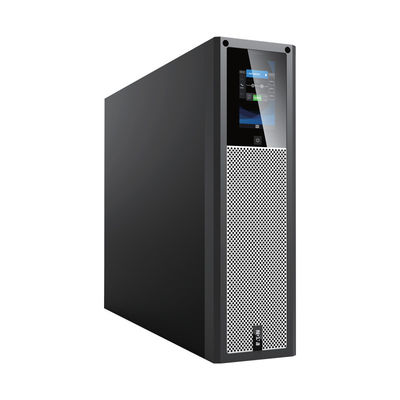

Eaton 9SX 15KVA 20KVA Three Phase 40Hz-70Hz 220/230/240V/380/400/415V UPS for Data Center
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Eaton |
| Model Number | Eaton 9SX |
| Price | $3,366.00 - $3,696.00/pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Phase | Three Phase |
|---|---|---|---|
| Protection | Short Circuit | Type | On-line |
| Application | Telecommunications | Product Name | Eaton 9SX (AP) UPS |
| Power Level | 15K-20KVA | Form Factor | Rack/tower |
| Technology | Online UPS | Rated Frequency | 40 Hz To 70 Hz |
| Input Voltage | 1 Phase 220/230/240V; 3 Phase 380/400/415V | Input Voltage Range | 160V~300V Full Load; 100~160V Liner Derating |
| Rated Input Frequency | 50Hz/60Hz | Output Connection | Terminal Block |
| Energy Saving | CQC |
Product Description
Product name | Eaton 9SX (AP) UPS | ||
Power level | 15K-20KVA | ||
Form Factor | rack/tower | ||
Technology | Online UPS | ||
Rated frequency | 40 Hz– 70 Hz | ||
Input Voltage | 1 phase 220/230/240V; 3 phase 380/400/415V | ||
Input voltage range | 160V~300V full load; 100~160V liner derating | ||
Rated input frequency | 50Hz/60Hz | ||
System compatibility | TN-S / IT | ||
Input-output phase connection | Input-output 3-1, 3-3, 1-1 | ||
Rated output voltage | 1 phase 220/230/240V; 3 phase 380/400/415V | ||
THDV | 1% linear load; 3% non-linear load | ||
Output connection | Terminal block | ||
Internal Batteries | None. 2 x EBMs as minimum to provide backup time. | ||
Battery voltage | ±240V (adjustable to ± 192V, use with correct battery) | ||
Charging current | 0~13A adjust | ||
Operation temperature | 0°C ~ 50 °C (0~40 no derating 40°C~ 50°C derating to 50%) | ||
Noise level | 55dB | ||
Safety | CE/TLC/RCM | ||
Energy saving | CQC | ||
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
1. May I take some samples to test before I placing the order?
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
