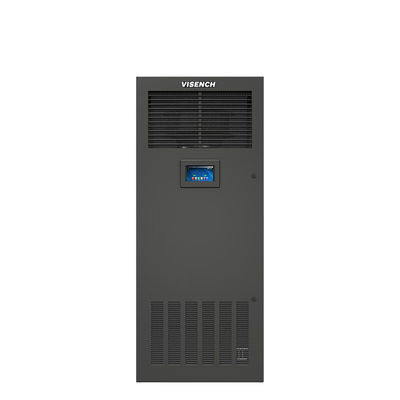

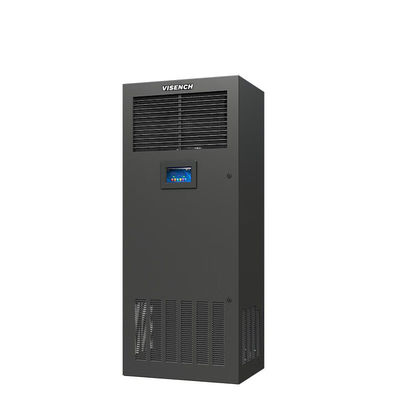

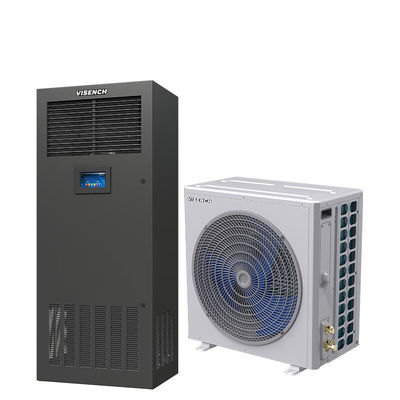

7.5KW 3P Single Cooling Air-cooled Precision Air Conditioner for Base Station Power Distribution Room
Product Summary
Product Description Specification Technical parameters and configuration table of precision air conditioners for small computer roomscategoryConstant temperature and humidity typeCooling onlyIndoor unit modelCSA1008F3Z3ACSA1013F3Z3ACSA1008F1Z3ACSA1013F1Z3AOutdoor unit modelCST008SP1ACST013SP1ACST008...
Key Attributes
Brand Name:
visench
Place of Origin:
Guangdong, China
Price:
$2,757.42 - $6,622.84/pieces
Product Custom Attributes
Highlight
7.5KW precision air conditioner
,air-cooled base station AC
,single cooling power distribution room AC
Applicable Industries:
Marine
Type:
Industrial Air Conditioner
Operating Voltage:
380vac
Mounting:
Floor Standing
Warranty:
1 Year
Dimension(L*W*H):
500*500*1740
Key Selling Points:
High Safety Level
Airflow:
3000m³/h
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Pressure Vessel, Motor, Gearbox
Weight (KG):
150 KG
Category:
Constant Temperature And Humidity Type
Energy Efficiency Ratio:
3.0
Power Specifications:
380VAC/50HZ
Indoor Unit Maximum Current:
11.5A/15.5A/7A/12A
Outdoor Unit Maximum Current:
1.1/1.2
Recommended Input Circuit Breaker:
25A/4P//16/4P
Number Of Presses:
1
Air Supply Method:
Come Forward To Blow The Air
Evaporator Form:
Large Area"/"type Evaporator
Weight(kg):
130
Condition:
New
Product Description
Product Description
Specification
Technical parameters and configuration table of precision air conditioners for small computer rooms | ||||||||||
category | Constant temperature and humidity type | Cooling only | ||||||||
Indoor unit model | CSA1008F3Z3A | CSA1013F3Z3A | CSA1008F1Z3A | CSA1013F1Z3A | ||||||
Outdoor unit model | CST008SP1A | CST013SP1A | CST008SP1A | CST013SP1A | ||||||
Energy efficiency ratio | 3.0 | 3.0 | 3.0 | 3.0 | ||||||
Power Specifications | 380VAC/50HZ | |||||||||
Indoor unit maximum current | 11.5A | 15.5A | 7A | 12A | ||||||
Outdoor unit maximum current | 1.1A | 2.2A | 1.1A | 2.2A | ||||||
Refrigeration capacity (kW) | 7.5 | 12.5 | 7.5 | 12.5 | ||||||
Sensible cooling capacity (kW) | 6.9 | 11.5 | 6.9 | 11.5 | ||||||
sensible heat ratio | 0.92 | |||||||||
Air supply volume (m3/h) | 2200 | 3000 | 2200 | 3000 | ||||||
Return air volume (m3/h) | 2200 | 3000 | 2200 | 3000 | ||||||
Heat exchange capacity(kw) | 11 | 18 | 11 | 18 | ||||||
PTC Electric heating power (kW) | 3 | 3 | _ | _ | ||||||
Electrode humidification amount (kg/h) | 3 | 3 | _ | _ | ||||||
compressor | Number of presses | 1 | ||||||||
Fixed frequency/frequency conversion | Fixed frequency | |||||||||
Compressor type | Highly Rotary Compressor | |||||||||
indoor fan | Air supply method | Come forward to blow the air | ||||||||
Number of fans | 1 | |||||||||
Fan form | EC centrifugal fan | |||||||||
outdoor fan | Number of fans | 1 | 2 | 1 | 2 | |||||
Fan form | Axial Fan | |||||||||
Evaporator form | large area"/"type evaporator | |||||||||
Expansion valve | type | Thermal expansion valve/electronic expansion valve | ||||||||
Filter | filter level | Medium and high efficiency:G4class | ||||||||
refrigerant | type | R410A | ||||||||
Indoor unit factory precharge (kg) | 1 | 1.5 | 1 | 1.5 | ||||||
Factory precharge of outdoor unit (kg) | 1 | 1.5 | 1 | 1.5 | ||||||
Noise value(dB) | Indoor unit | 56.5 | 60 | 56.5 | 60 | |||||
The outdoor unit | 57 | 61 | 57 | 61 | ||||||
Dimensions(mm) | Indoor unit(W*d*h) | 500*500*1740 | 700*500*1740 | 500*500*1740 | 700*500*1740 | |||||
Outdoor unit(W*d*h) | 850*400*730 | 1200*400*730 | 850*400*730 | 1200*400*730 | ||||||
weight(kg) | Indoor unit | 130 | 170 | 130 | 170 | |||||
The outdoor unit | 59.5 | 61 | 59.5 | 61 | ||||||
