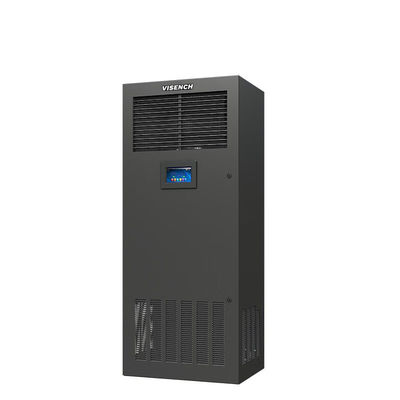

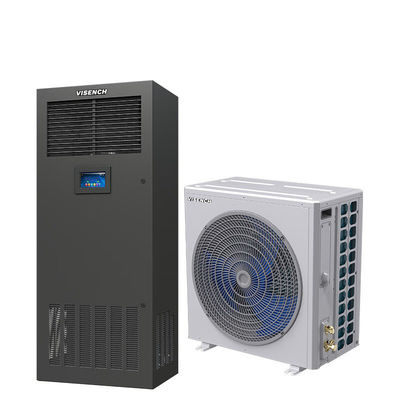

8KW 13KW 17KW 20KW Industrial Precision Type Air Conditioner for Marine Lab Server Room
Product Description Specification Technical parameters and configuration table of precision air conditioners for small computer roomscategoryConstant temperature and humidity typeCooling onlyIndoor unit modelCSA1008F3Z3ACSA1013F3Z3ACSA1008F1Z3ACSA1013F1Z3AOutdoor unit modelCST008SP1ACST013SP1ACST008...
industrial precision air conditioner marine
,server room precision air conditioner
,high capacity precision air conditioner
Technical parameters and configuration table of precision air conditioners for small computer rooms | ||||||||||
category | Constant temperature and humidity type | Cooling only | ||||||||
Indoor unit model | CSA1008F3Z3A | CSA1013F3Z3A | CSA1008F1Z3A | CSA1013F1Z3A | ||||||
Outdoor unit model | CST008SP1A | CST013SP1A | CST008SP1A | CST013SP1A | ||||||
Energy efficiency ratio | 3.0 | 3.0 | 3.0 | 3.0 | ||||||
Power Specifications | 380VAC/50HZ | |||||||||
Indoor unit maximum current | 11.5A | 15.5A | 7A | 12A | ||||||
Outdoor unit maximum current | 1.1A | 2.2A | 1.1A | 2.2A | ||||||
Refrigeration capacity (kW) | 7.5 | 12.5 | 7.5 | 12.5 | ||||||
Sensible cooling capacity (kW) | 6.9 | 11.5 | 6.9 | 11.5 | ||||||
sensible heat ratio | 0.92 | |||||||||
Air supply volume (m3/h) | 2200 | 3000 | 2200 | 3000 | ||||||
Return air volume (m3/h) | 2200 | 3000 | 2200 | 3000 | ||||||
Heat exchange capacity(kw) | 11 | 18 | 11 | 18 | ||||||
PTC Electric heating power (kW) | 3 | 3 | _ | _ | ||||||
Electrode humidification amount (kg/h) | 3 | 3 | _ | _ | ||||||
compressor | Number of presses | 1 | ||||||||
Fixed frequency/frequency conversion | Fixed frequency | |||||||||
Compressor type | Highly Rotary Compressor | |||||||||
indoor fan | Air supply method | Come forward to blow the air | ||||||||
Number of fans | 1 | |||||||||
Fan form | EC centrifugal fan | |||||||||
outdoor fan | Number of fans | 1 | 2 | 1 | 2 | |||||
Fan form | Axial Fan | |||||||||
Evaporator form | large area"/"type evaporator | |||||||||
Expansion valve | type | Thermal expansion valve/electronic expansion valve | ||||||||
Filter | filter level | Medium and high efficiency:G4class | ||||||||
refrigerant | type | R410A | ||||||||
Indoor unit factory precharge (kg) | 1 | 1.5 | 1 | 1.5 | ||||||
Factory precharge of outdoor unit (kg) | 1 | 1.5 | 1 | 1.5 | ||||||
Noise value(dB) | Indoor unit | 56.5 | 60 | 56.5 | 60 | |||||
The outdoor unit | 57 | 61 | 57 | 61 | ||||||
Dimensions(mm) | Indoor unit(W*d*h) | 500*500*1740 | 700*500*1740 | 500*500*1740 | 700*500*1740 | |||||
Outdoor unit(W*d*h) | 850*400*730 | 1200*400*730 | 850*400*730 | 1200*400*730 | ||||||
weight(kg) | Indoor unit | 130 | 170 | 130 | 170 | |||||
The outdoor unit | 59.5 | 61 | 59.5 | 61 | ||||||
We are based in Guangdong, China, start from 2015,sell to Mid East(23.00%),Southeast Asia(21.00%),South America(20.00%),Africa(10.00%),Oceania(6.00%),South Asia(5.00%),North America(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UPS, Lithium Battery, Lead Acid Battery, Room Cooling, PDU
4. why should you buy from us not from other suppliers?
Vesion is a global group company. Headquartered in Taipei, Vesion was founded in the 1980s. It has a history of producing industrial batteries and uninterruptible power supplies for more than 30 years. It has invested and built factories in Vietnam
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
-
