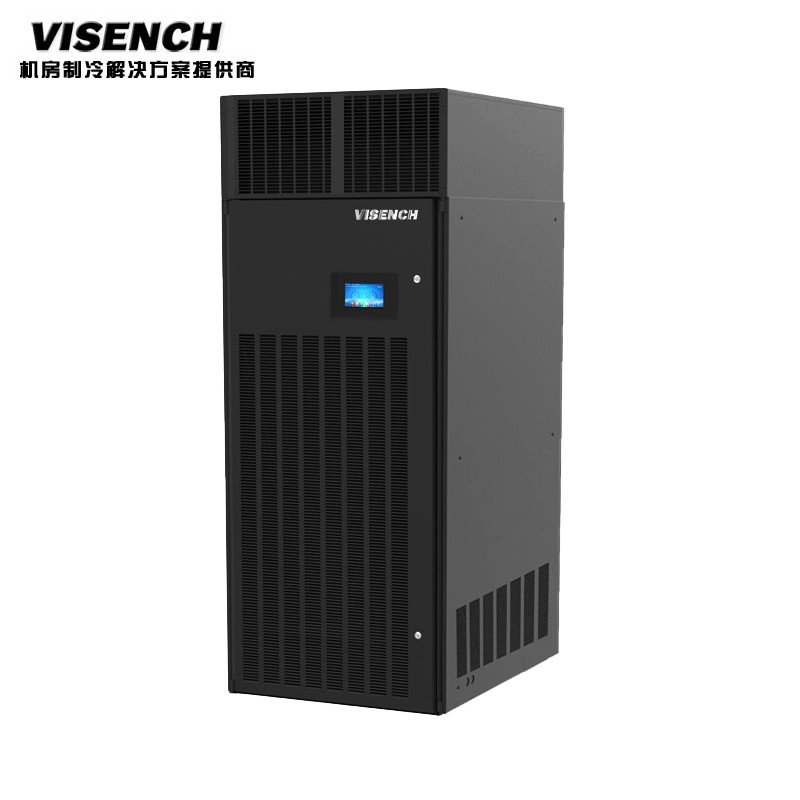

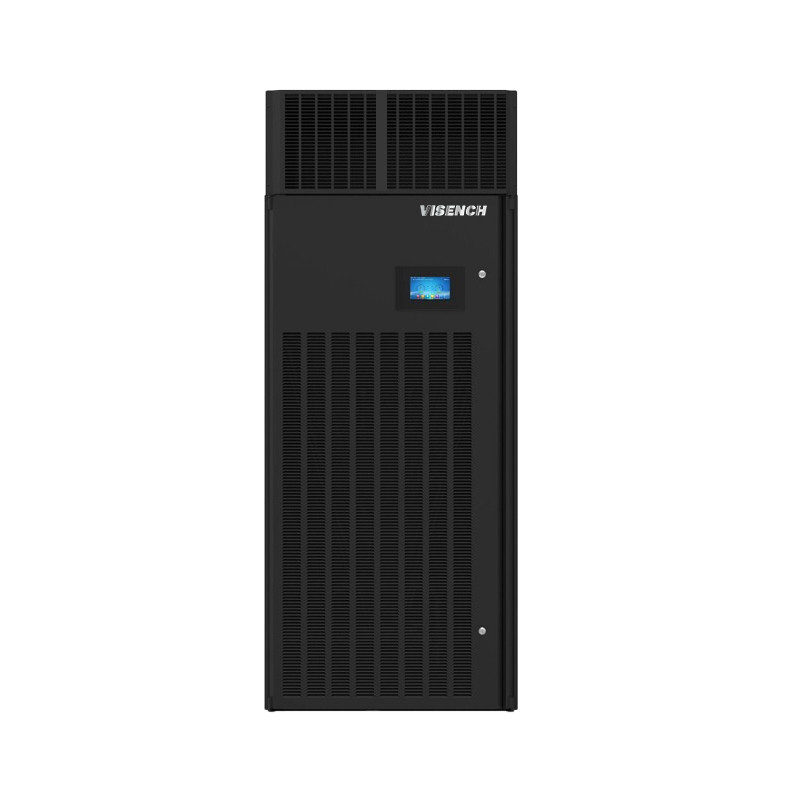

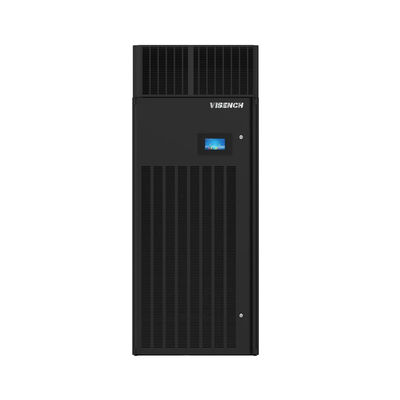

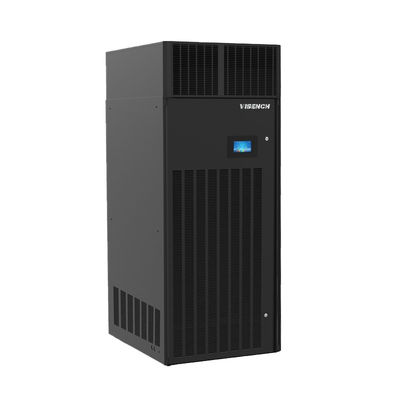

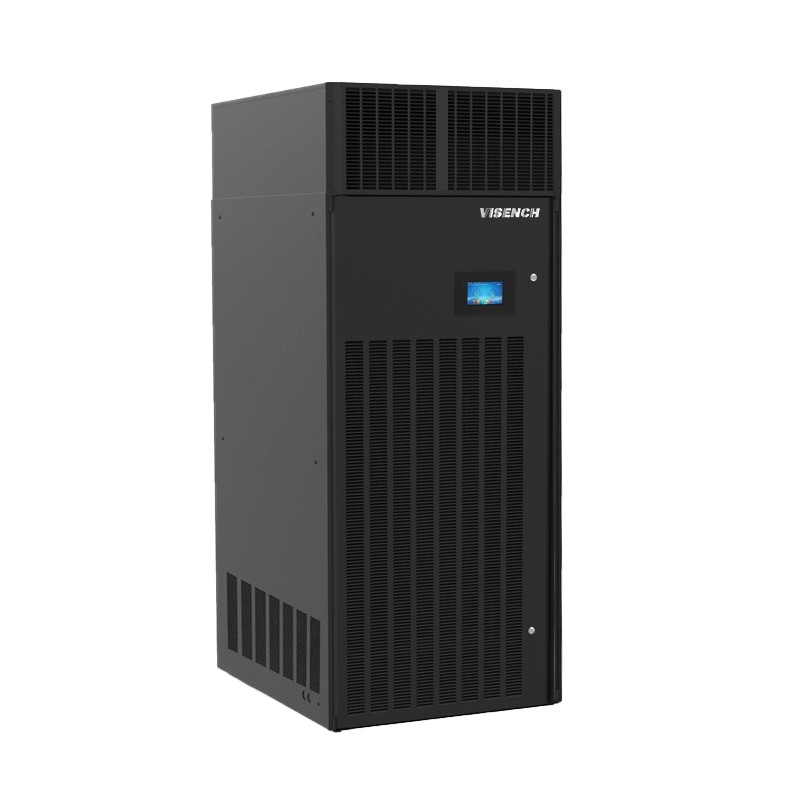

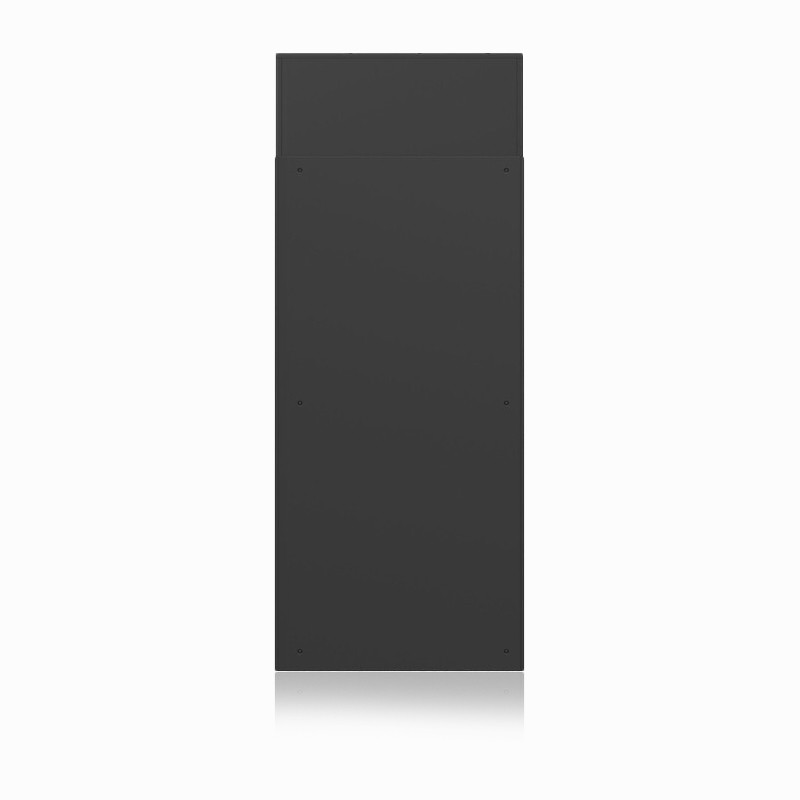

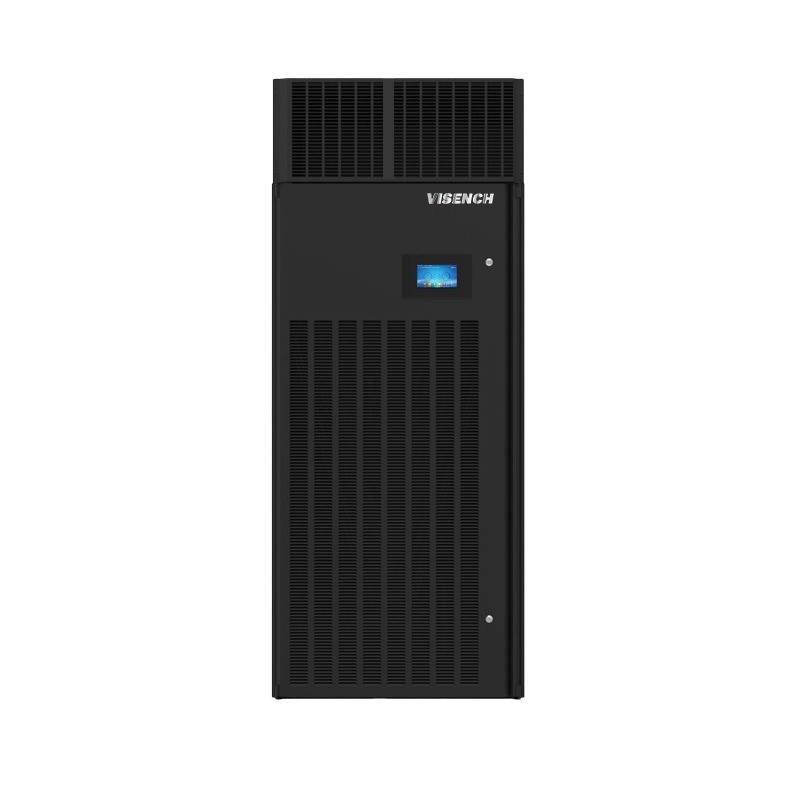

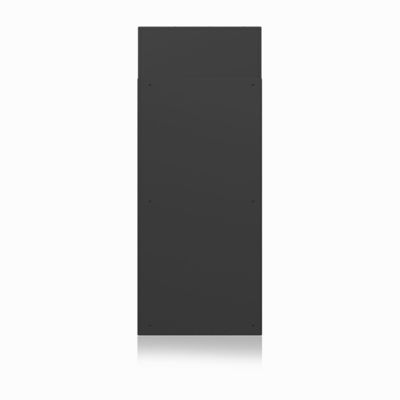

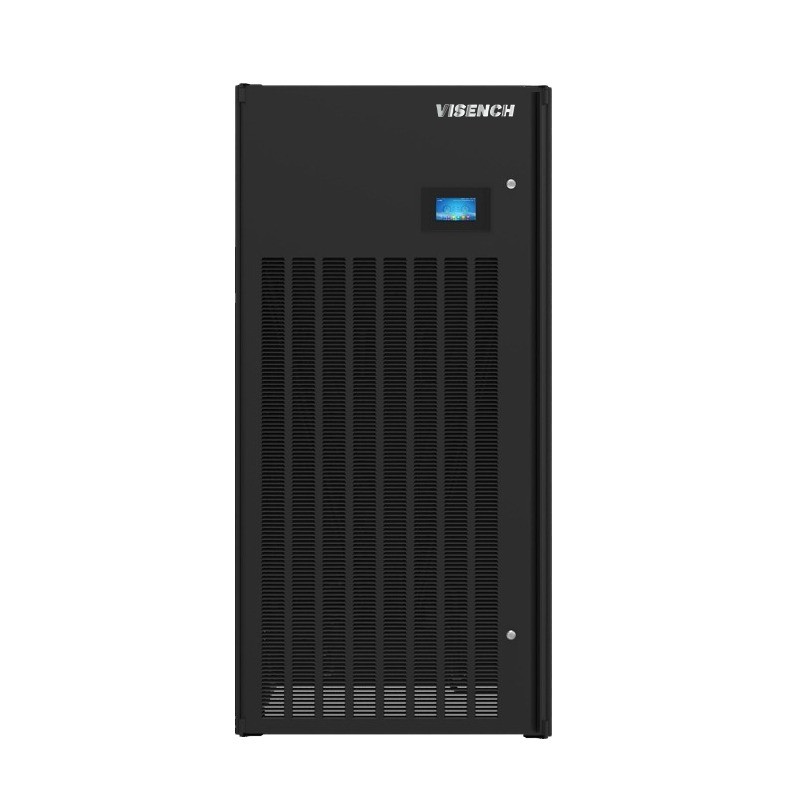

35KW 35000W 35KVA Precision Air Floor Standing Conditioning Room Level Single System
Product Description Specification Room-level precision air conditioning technical parameters and configuration table (single system)Air conditioner typeConstant temperature and humidity typeIndoor unit modelCMA1025UCMA1030UCMA1035UCMA1040UOutdoor unit modelCMT025SPCMT040SPCMT045SPCMT050SPEnergy ...
35KW precision air conditioner
,floor standing air conditioning system
,single system precision AC
Room-level precision air conditioning technical parameters and configuration table (single system) | ||||||||||
Air conditioner type | Constant temperature and humidity type | |||||||||
Indoor unit model | CMA1025U | CMA1030U | CMA1035U | CMA1040U | ||||||
Outdoor unit model | CMT025SP | CMT040SP | CMT045SP | CMT050SP | ||||||
Energy efficiency ratio | 3.01 | 3.09 | 3.05 | 3.01 | ||||||
Power Specifications | 380VAC/50HZ | |||||||||
Maximum current | 26A | 35A | 39A | 42A | ||||||
Recommended input space | 40A/4P | 50A/4P | 63A/4P | 63A/4P | ||||||
Cooling capacity (kW） | 20.2 | 30.5 | 35.4 | 40.2 | ||||||
Sensible cooling capacity (kW） | 18.6 | 27.9 | 32.4 | 36.9 | ||||||
sensible heat ratio | 0.92 | 0.91 | 0.92 | 0.92 | ||||||
Air volume (m³/h） | 5500 | 8500 | 10000 | 11500 | ||||||
Return air volume (m³/h） | 5500 | 8500 | 10000 | 11500 | ||||||
heat exchange capacity(kW) | 25 | 40 | 40 | 50 | ||||||
PTCElectric heating power (kW） | 6 | 8 | ||||||||
Electrode humidification capacity (kg/h） | 3 | 6 | 8 | 8 | ||||||
compressor | Number of presses | 1 | ||||||||
Fixed frequency/frequency conversion | Fixed frequency | |||||||||
Compressor type | scroll compressor | |||||||||
indoor fan | Air supply method | F: Come forward to blow the wind;D：Downward air supply | U: Top air supply (standard hood);D：Downward air supply | |||||||
Number of fans | 2 | 1 | ||||||||
Fan form | EC Centrifugal fan | |||||||||
outdoor fan | Number of fans | 2 | 3 | 3 | 2 | |||||
Fan form | Axial Fan | |||||||||
Evaporator form | type | Come forward to send air:Vtype; downward air supply:Atype | ||||||||
Expansion valve | type | Thermal expansion valve/electronic expansion valve | ||||||||
Filter | filter level | G4class | ||||||||
refrigerant | type | R410A | ||||||||
Indoor unit factory precharge (kg) | No precharge at the factory | |||||||||
Factory precharge of outdoor unit (kg) | ||||||||||
Noise value(dB) | Indoor unit | 66.8 | 62.5 | 64 | 65.8 | |||||
The outdoor unit | 63.5 | 65.5 | 66 | 67 | ||||||
Dimensions(mm) | Upward air supply indoor unit | 1200*500*1740 | 980*995*1950(Excluding hood, hood height420) | 980*995*1950 (Without hood, hood height420) | 980*995*1950 (Without hood, hood height420) | |||||
Downward air supply indoor unit | \ | 980*995*1950 | 980*995*1950 | 980*995*1950 | ||||||
The outdoor unit | 1200*400*985 | 1845*400*985 | 1845*400*985 | 2245*400*1135 | ||||||
weight(kg) | Indoor unit | 260 | 350 | 360 | 380 | |||||
The outdoor unit | 88 | 128 | 140 | 160 | ||||||
