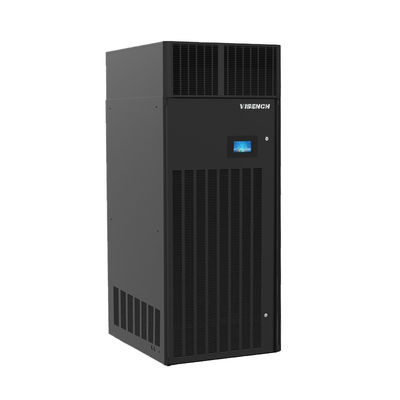

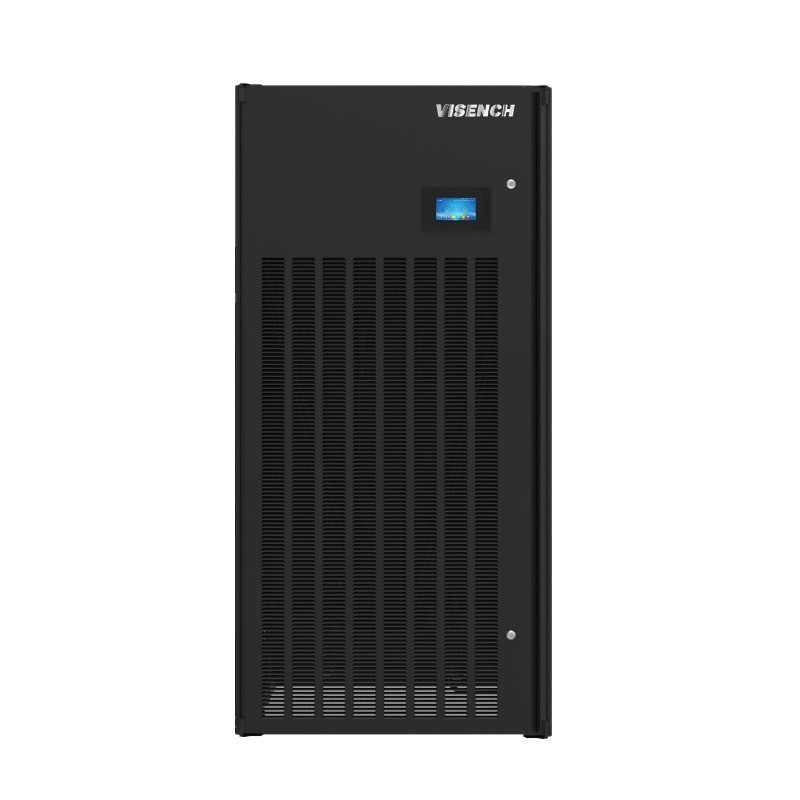

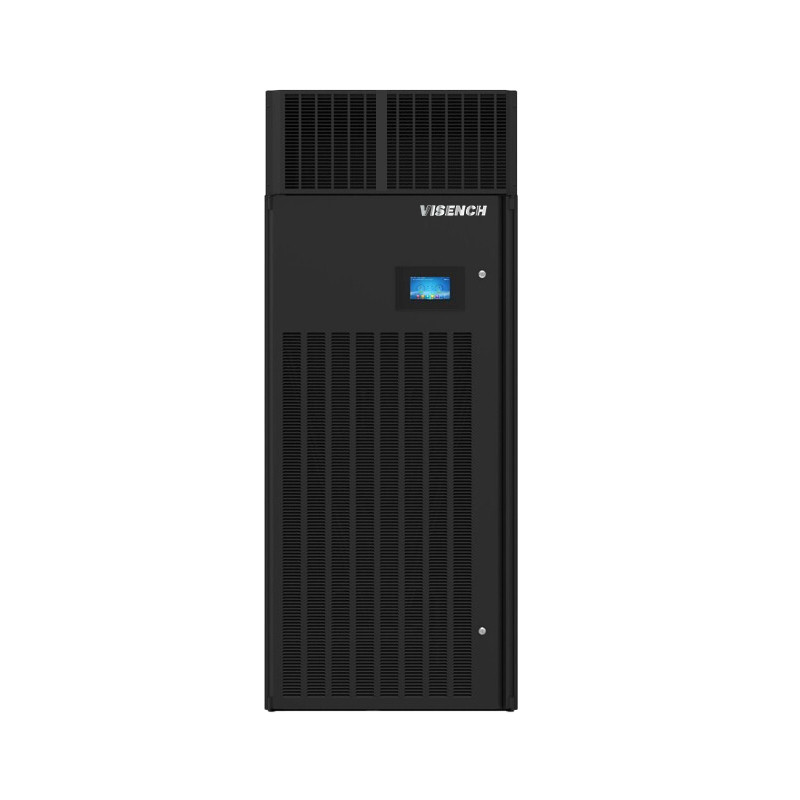

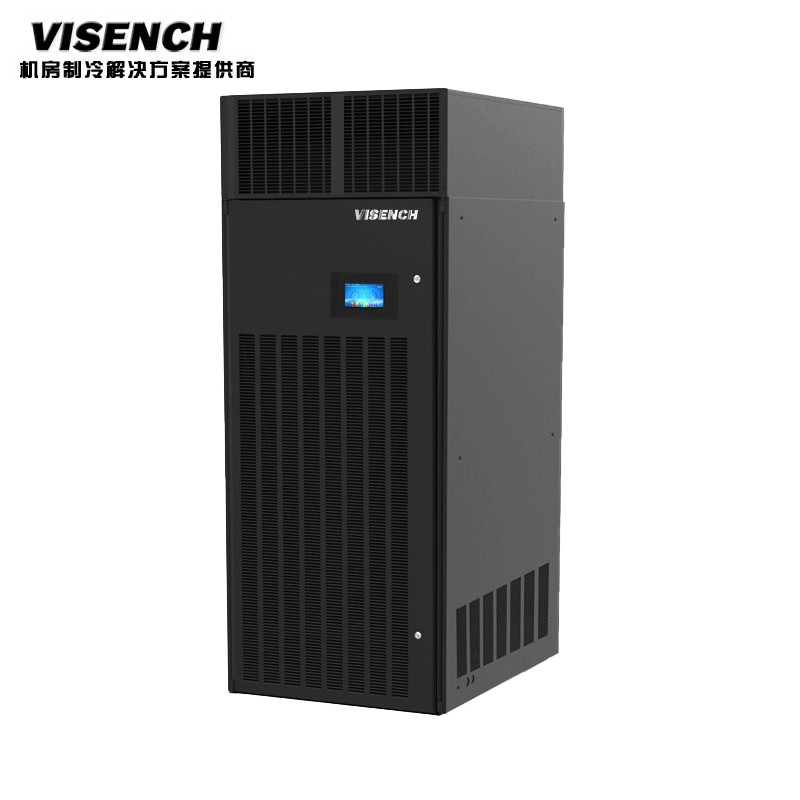

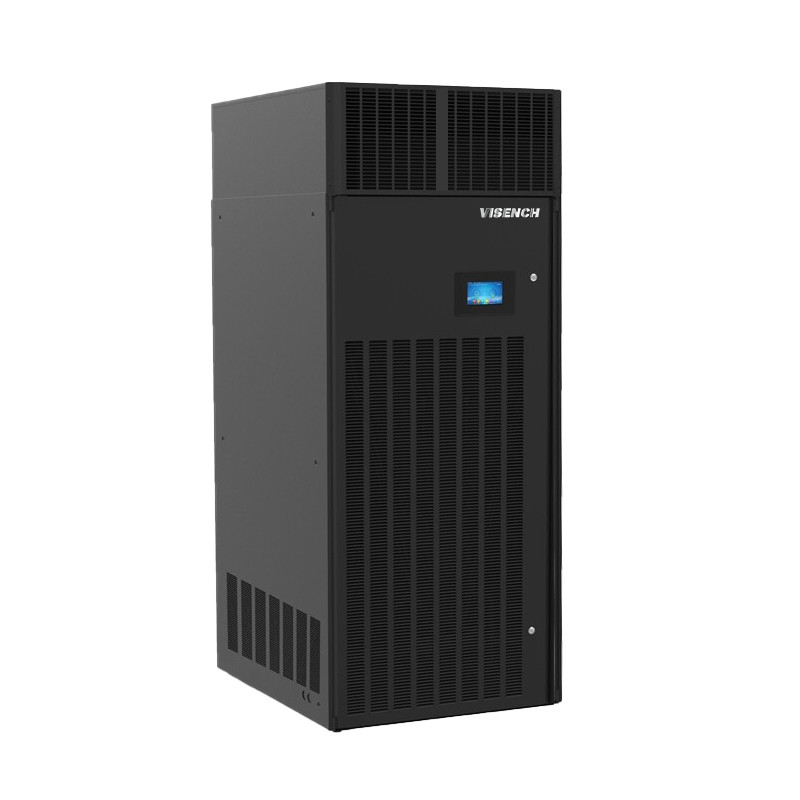

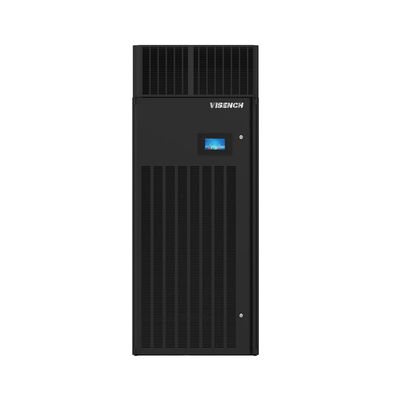

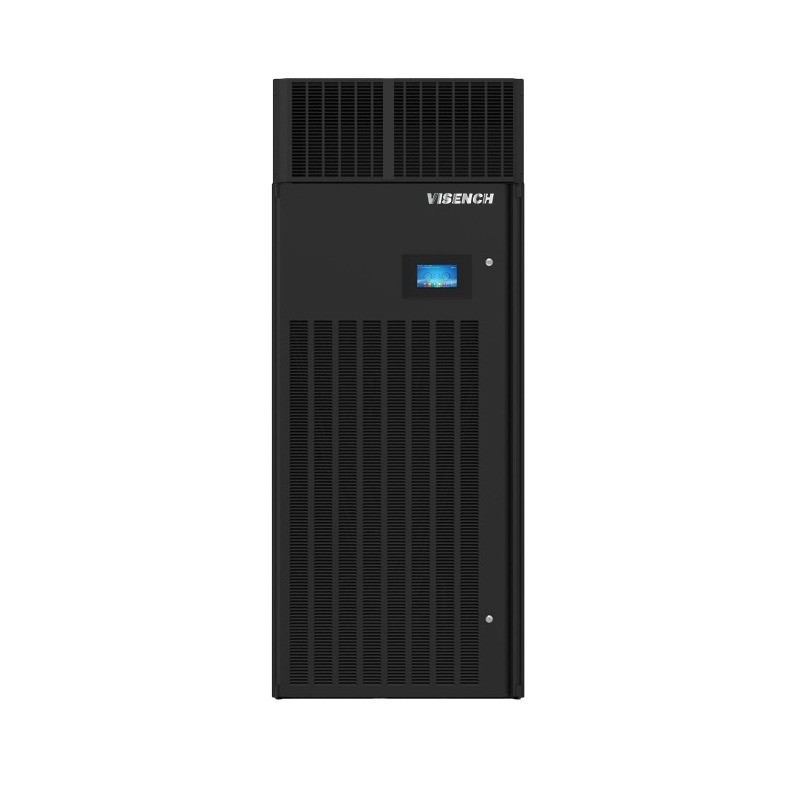

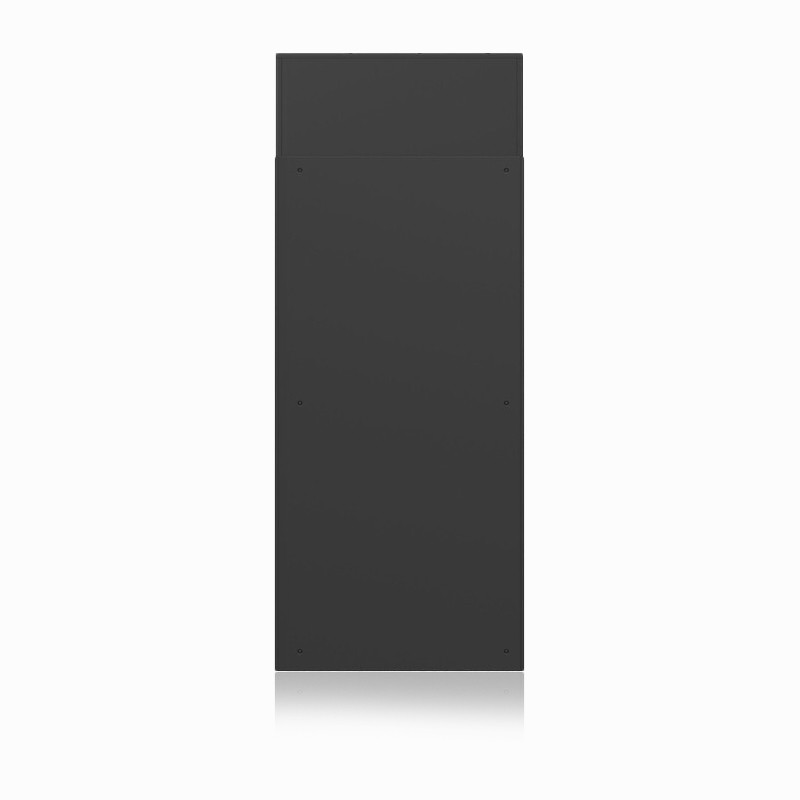

Data Center Air Conditioning with Top Air Supply Room Level Industrial Air Conditioner
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Visench |
| Price | $6,857.14 - $10,714.28/pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Industries | Manufacturing Plant | Type | Industrial Air Conditioner |
|---|---|---|---|
| Operating Voltage | 380VAC | Mounting | Floor Standing |
| Warranty | 1 Year | Dimension(L*W*H) | 1200*500*1740 |
| Key Selling Points | High Safety Level | Airflow | 5000m³/h |
| Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Pressure Vessel, Motor, Gearbox |
| Weight (KG) | 150 KG | Air Conditioner Type | Constant Temperature And Humidity Type |
| Power Specifications | 380VAC/50HZ | Indoor Unit Model | CSA018SAB |
| Outdoor Unit Model | ECA022 | Energy Efficiency Ratio | 3~3.9 |
| Fan | EC | Air Supply Method | Horizontal Upper/lower Air Supply |
| Refrigerant | R410 | Refrigeration Form | Air Cooling |
| System | Single | Condition | New |
Product Description
Product Description
Specification
Room-level precision air conditioning technical parameters and configuration table (single system) | ||||||||||
Air conditioner type | Constant temperature and humidity type | |||||||||
Indoor unit model | CMA1025U | CMA1030U | CMA1035U | CMA1040U | ||||||
Outdoor unit model | CMT025SP | CMT040SP | CMT045SP | CMT050SP | ||||||
Energy efficiency ratio | 3.01 | 3.09 | 3.05 | 3.01 | ||||||
Power Specifications | 380VAC/50HZ | |||||||||
Maximum current | 26A | 35A | 39A | 42A | ||||||
Recommended input space | 40A/4P | 50A/4P | 63A/4P | 63A/4P | ||||||
Cooling capacity (kW） | 20.2 | 30.5 | 35.4 | 40.2 | ||||||
Sensible cooling capacity (kW） | 18.6 | 27.9 | 32.4 | 36.9 | ||||||
sensible heat ratio | 0.92 | 0.91 | 0.92 | 0.92 | ||||||
Air volume (m³/h） | 5500 | 8500 | 10000 | 11500 | ||||||
Return air volume (m³/h） | 5500 | 8500 | 10000 | 11500 | ||||||
heat exchange capacity(kW) | 25 | 40 | 40 | 50 | ||||||
PTCElectric heating power (kW） | 6 | 8 | ||||||||
Electrode humidification capacity (kg/h） | 3 | 6 | 8 | 8 | ||||||
compressor | Number of presses | 1 | ||||||||
Fixed frequency/frequency conversion | Fixed frequency | |||||||||
Compressor type | scroll compressor | |||||||||
indoor fan | Air supply method | F: Come forward to blow the wind;D：Downward air supply | U: Top air supply (standard hood);D：Downward air supply | |||||||
Number of fans | 2 | 1 | ||||||||
Fan form | EC Centrifugal fan | |||||||||
outdoor fan | Number of fans | 2 | 3 | 3 | 2 | |||||
Fan form | Axial Fan | |||||||||
Evaporator form | type | Come forward to send air:Vtype; downward air supply:Atype | ||||||||
Expansion valve | type | Thermal expansion valve/electronic expansion valve | ||||||||
Filter | filter level | G4class | ||||||||
refrigerant | type | R410A | ||||||||
Indoor unit factory precharge (kg) | No precharge at the factory | |||||||||
Factory precharge of outdoor unit (kg) | ||||||||||
Noise value(dB) | Indoor unit | 66.8 | 62.5 | 64 | 65.8 | |||||
The outdoor unit | 63.5 | 65.5 | 66 | 67 | ||||||
Dimensions(mm) | Upward air supply indoor unit | 1200*500*1740 | 980*995*1950(Excluding hood, hood height420) | 980*995*1950 (Without hood, hood height420) | 980*995*1950 (Without hood, hood height420) | |||||
Downward air supply indoor unit | \ | 980*995*1950 | 980*995*1950 | 980*995*1950 | ||||||
The outdoor unit | 1200*400*985 | 1845*400*985 | 1845*400*985 | 2245*400*1135 | ||||||
weight(kg) | Indoor unit | 260 | 350 | 360 | 380 | |||||
The outdoor unit | 88 | 128 | 140 | 160 | ||||||
