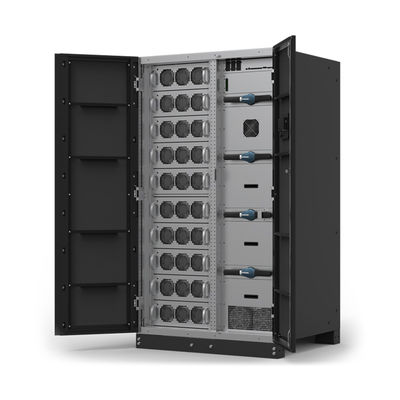

Factory direct 200kVA 300kVA 400kVA 500kVA 600kVA Santak Castle 3C3 HD UPS Internal Modular Design

Quality Factory direct 200kVA 300kVA 400kVA 500kVA 600kVA Santak Castle 3C3 HD UPS Internal Modular Design factory
Quality Factory direct 200kVA 300kVA 400kVA 500kVA 600kVA Santak Castle 3C3 HD UPS Internal Modular Design factory
Quality Factory direct 200kVA 300kVA 400kVA 500kVA 600kVA Santak Castle 3C3 HD UPS Internal Modular Design factory
Quality Factory direct 200kVA 300kVA 400kVA 500kVA 600kVA Santak Castle 3C3 HD UPS Internal Modular Design factory
Quality Factory direct 200kVA 300kVA 400kVA 500kVA 600kVA Santak Castle 3C3 HD UPS Internal Modular Design factory
Quality Factory direct 200kVA 300kVA 400kVA 500kVA 600kVA Santak Castle 3C3 HD UPS Internal Modular Design factory

Factory direct 200kVA 300kVA 400kVA 500kVA 600kVA Santak Castle 3C3 HD UPS Internal Modular Design

Product Summary

Santak Castle 3C3 HD UPS Santak Castle Series UPS CASTLE 3C3 HD 20-200kVA CASTLE 3C3 HD 20-200K 3C3 HD UPS is the new generation three phase tower UPS, which adopts the most advanced power electronics and digital signal control and protection technology. It performs higher efficiency, higher performance, and more convenient operation, and can provide users with high quality power supply guarantee in various industries. Typical application environment • Small and medium-sized

Key Attributes
Brand Name: Santak
Model Number: Santak Castle 3C3 HD UPS
Place of Origin: China
Certification: CE
Supply Ability: 1000pcs/months
Delivery Time: 30days
Payment Terms: T/T, Western Union, MoneyGram
Standard Packaging: cartons
Product Custom Attributes
Highlight

Santak Castle 3C3 HD UPS

,

modular UPS with internal design

,

high capacity UPS 600kVA

Product Name:
Santak Castle 3C3 HD Series
Rated Capacity:
20KVA-200KVA
Power Factor:
1
Input Voltage:
380/400/415VAC
Input Frequency:
50/ 60Hz
Output Voltage:
380/400/415VAC
Output Frequency:
50/ 60Hz
Overload Capacity:
111–125%: 10 Mins, 126–150%: 1 Minute
Online Mode:
96%
ECO Mode:
99%
Parallel:
4 Parallel Machines
Environment Humidity:
5 - 95%, No Condensation
Storage Environment:
–15 ~ +55℃
Operating Temperature:
0～40℃
Altitude:
≤ 1000m
Size:
330*668*521mm/330*690*975mm/550*850*1600mm
Weight:
41kg,45kg,90kg,149kg,245kg,270kg
Safety Standard:
GB4943； YD/T1095； GB/7260.2； IEC/62040-2
Product Description

Santak Castle 3C3 HD UPS



Santak Castle Series UPS

CASTLE 3C3 HD 20-200kVA





CASTLE 3C3 HD 20-200K

3C3 HD UPS is the new generation three phase tower UPS, which adopts the most advanced power electronics and digital signal control and protection technology. It performs higher efficiency, higher performance, and more convenient operation, and can provide users with high quality power supply guarantee in various industries.





Typical application environment

• Small and medium-sized data centers
• Computer data room
• Automation control system
• Transportation
• Banking, Finance
• Communication industry, 5G
• Production and manufacturing


Power range: 20/30/40/60/80kVA
Topology: Advanced three-level inverter, high-frequency IGBT conversion/
inversion technology
Input and output: 220V/380V three-phase four-wire
Frequency: 50/60 Hz


Product features
• Adopt the new generation of IGBT and optimized three-level inverter topology, with online efficiency up to 96% and ESS mode efficiency up to 99%.
• Output power factor 1.0.
• Internal modular design, MTTR<30 minutes.
• High power density, save more than 50% footprint.
• Intelligent battery management function to extend battery life cycle.
• 5" color touch screen for easy operation.
• Support lead-acid batteries and lithium batteries.
• Parallel UPS units up to 4, support common battery @2 UPS parallel.
• Support battery cold start.

Smaller size, saving space in computer room
The 3C3 HD adopts innovative modular design, optimizes the design and layout of rectifiers, inverters and other components. On the premise of ensuring reliability, the volume and weight of the product are greatly reduced, which greatly saves the computer room space and improves the utilization rate of the computer room. Compared to current mainstream products in the market, the 3C3 HD saves 50% in footprint space and 90% in volume.

Extra Low TCO (Total Cost of Ownership)
3C3 HD 20-80K UPS efficiency is up to 96% at online double conversion mode and 99% at ESS mode.
• ESS mode can provide up to 99% system efficiency, significantly reducing UPS power consumption and cooling power consumption.
• In ESS mode, UPS built-in filter protection devices can still provide surge protection to ensure high-quality power output.
• 3C3 HD can intelligently switch between ESS mode and double conversion mode automatically according to the quality of the power grid. The typical switching time is only 2-4ms.
• In ESS mode, the reliability of key components is further improved and the service life is longer.

Safe and reliable. Suitable for various application environments
DUSTPROOF DESIGN
Santak 3C3 HD has a dust filter to isolate dust from the outside of UPS, improving the adaptability to the harsh environments. At the same time, the internal layout and airflow distribution are optimized, which greatly reduces the dust accumulation.
• Dust filter complying with American fire protection standard UL94 and dust filter standard UL900.
• Easy to disassemble and clean. Low maintenance cost.

CAPACITORS HEALTH MONITORING
Santak 3C3 HD innovatively adopts a filter capacitor health monitoring function, through real-time temperature detection of the internal capacitor, monitors the health status of the capacitor, provides early warning information before the capacitor is damaged, avoids the occurrence of failure, and greatly guarantees the stability and reliability of power for critical loads
• Use temperature sensors to detect real-time temperature of all input and output filtering capacitors.
• Fully automatic intelligent judgment of capacitor life, providing warning information before the expiration of capacitor life to avoid faults.
• The protection measures will be activated as soon as possible in case of abnormal capacitor faults , avoiding further expansion of faults.

PCBA COATING
Short circuit caused by corrosion of PCBA is one of the important reasons for failure of UPS, especially in coastal cities. Santak 3C3 HD uses advanced intelligent PCBA coating technology to further improve the salt spray and corrosion resistance of the product.
• Full-automatic coating process to avoid manual operation error and ensure coating precision and consistency.
• Blue-ray detection technology is used to ensure the coating quality.

INTELLIGENT PARALLEL REDUNDANCY
The Santak 3C3 HD has built-in synchronous CAN communication, and no need to install a parallel card during parallel operation. It ensures output synchronous and load balance of each UPS in the parallel system, and ensures the reliability and redundancy of the parallel system.
• Point-to-point control, no
"master-slave" dependency parallel control.
• No traditional load sharing lines.
• Eliminate single point of failure in the system.
• Fast fault detection and breakaway technology.
• Reliability is further enhanced.

Convenient operation and maintenance
Santak 3C3 HD adopts a 5” colorful touch screen with 3 color LED indicators, which is convenient for users to check UPS running status and operate the UPS.

MENU ITEMS
Meters: Display the measurements of the system or critical load.
Control: Access various system control screens.
Statistics: Access and view the specific operating values of the system. Such operations shall be performed by Eaton service engineers only.
Log: Access the system logs, including alerts, notices and commands.
Info: Display the UPS and HMI information.
Settings: Access various screen control variables for system operation.
