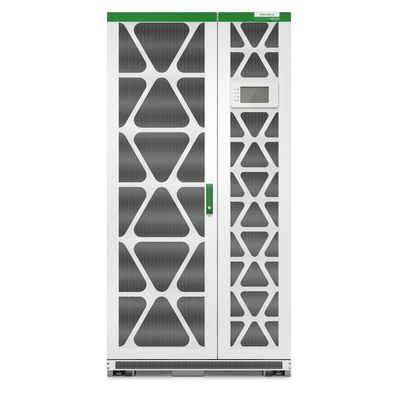

APC Easy UPS 3L 500kVA 500kW 400V 3:3 UPS E3LUPS500KHS For External Batteries

Quality APC Easy UPS 3L 500kVA 500kW 400V 3:3 UPS E3LUPS500KHS For External Batteries factory
Quality APC Easy UPS 3L 500kVA 500kW 400V 3:3 UPS E3LUPS500KHS For External Batteries factory
Quality APC Easy UPS 3L 500kVA 500kW 400V 3:3 UPS E3LUPS500KHS For External Batteries factory
Quality APC Easy UPS 3L 500kVA 500kW 400V 3:3 UPS E3LUPS500KHS For External Batteries factory
Quality APC Easy UPS 3L 500kVA 500kW 400V 3:3 UPS E3LUPS500KHS For External Batteries factory

APC Easy UPS 3L 500kVA 500kW 400V 3:3 UPS E3LUPS500KHS For External Batteries

Product Summary

Features The Schneider Electric Easy UPS 3L, part of the 3 phase Easy UPS range, is a easy-to-configure, easy-to-use, and easy-to-service 250-600 kVA 3-phase UPS that delivers high availability and predictability to medium and large commercial and industrial applications. Its fault-tolerant design ...

Key Attributes
Brand Name: APC
Model Number: E3LUPS500KHS
Place of Origin: China
Certification: CE EAC RCM
MOQ: 1
Payment Terms: L/C, D/A, D/P, T/T
Product Custom Attributes
Highlight

APC Easy UPS 3L 500kVA

,

Easy UPS 500kVA 500kW

Lead Time:
Special Order - Call For Quoted Lead Times
Main Input Voltage:
400 V 3 Phases
Other Input Voltage:
380 V 415 V
Other Output Voltage:
Other Output Voltage
Battery Voltage:
+/- 216...+/- 300 V
Weight:
688 Kg
Dimensions:
2117 X 1000 X 800 Mm
Topology:
Double Conversion Online
Efficiency:
Up To 96%
Display:
LCD
Communication Ports:
USB, RS232, SmartSlot
Frequency:
50/60Hz
Form Factor:
Tower
Product Description

Features

The Schneider Electric Easy UPS 3L, part of the 3 phase Easy UPS range, is a easy-to-configure, easy-to-use, and easy-to-service 250-600 kVA 3-phase UPS that delivers high availability and predictability to medium and large commercial and industrial applications. Its fault-tolerant design streamlines installation and service, its compact footprint saves valuable real estate, and its up to 96% efficiency brings predictability to your utility costs. With its exceptional combination of competitive specifications, compact footprint, and highly available parallel and redundant designs, the EcoStruxure connected Easy UPS 3L is the easy choice for business continuity on your shop floor or in your electrical room. Start-up service is included to optimize your system’s performance, quality, and safety.

Benefits

Convenience
  • Easy Loop Test - Verifies UPS performance before you connect your load, without the need for a load bank.
  • Easy to install fast - Quickly roll the compact and lightweight UPS into position.
  • Intuitive user interface - The intuitive graphical user interface allows for easy system configuration.
  • ECO Mode - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Front-access servicing - Simplifies installation and UPS maintenance while minimizing space requirements.
  • Straightforward installation - Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Protection
  • Optional SNMP Card - When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
  • Replaceable dust filters - protect the UPS in harsh environments.
  • Parallel capability - Multiple units can be placed in parallel to meet power capacity and redundancy requirements
  • Wide Input Voltage Window - Saves your battery power for when you really need it - during power cuts!

Specifications



Overview
Presentation Easy-to-configure, easy-to-use and easy-to-service 500 kVA 3 phase UPS with an exceptional combination of competitive specifications, compact footprint, and highly available parallel and redundant designs. The EcoStruxure Ready Schneider Electric Easy UPS 3L is the easy choice for business continuity on your shop floor, in your electrical room, or in your data center. Includes 5x8 start-up service.
Lead time Special Order - Call for Quoted Lead Times

Main
Main Input Voltage 400 V 3 phases
Other Input Voltage 380 V
415 V
Main Output Voltage 400 V 3 phases
Other Output Voltage 380 V
415 V
Rated power in W 500 kW
Rated power in VA 500 kVA
Provided equipment Dust filter
Installation manual
Start-up service

Batteries & Runtime
Efficiency View Efficiency Graph
action_new_window
Battery type External battery system
Battery voltage +/- 216...+/- 300 V
Maximum short-circuit current 35 kA
Discharge battery voltage +/- 172.8...+/- 240 V

Physical
Colour White (RAL 9003)
height 197 cm
Width 100 cm
Depth 85 cm
Net weight 640 kg
USB compatible Yes

Input
Maximum input current 899 A
Max short time withstand current 35 kA
Input harmonic distortion Less than 3 % for full load
Load power factor 0.5 leading to 0.5 lagging without derating
Input Power Factor at Full Load 0.99
Input voltage limits 323...477 V
Network frequency 40...70 Hz

Output
Maximum configurable power in VA 500 kVA
Maximum configurable power in W 500 kW
Output frequency 50 Hz sync to mains
60 Hz sync to mains
Output harmonic distortion < 2% linear load and < 4% non-linear load
Output overload operation 10 minutes at 125% and 60 seconds at 150%
UPS type Double conversion online

Conformance
product certifications CE
EAC
RCM

Environmental
ambient air temperature for operation 0…30 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...4921 ft
Ambient air temperature for storage -25…55 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…14999.82 m
Acoustic level 72 dB
heat dissipation 108507 Btu/h
IP degree of protection IP20

Communications & Management
control panel Touch screen LCD user interface

Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 211.5 cm
Package 1 Width 120 cm
Package 1 Length 101.5 cm
Package 1 Weight 688 kg

Contractual warranty
Warranty 1 year on-site repair or replace with factory authorized Start-Up
