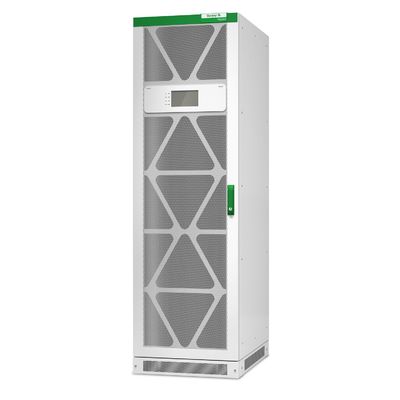

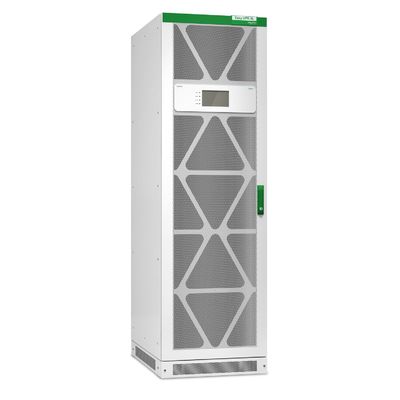

APC Easy UPS 3L 250kVA 250kW 400V 3:3 UPS Double Conversion Online
| Place of Origin | China |
|---|---|
| Brand Name | APC |
| Certification | CE EAC RCM |
| Model Number | E3LUPS250KHS |
| Minimum Order Quantity | 1 |
| Payment Terms | L/C, D/A, D/P, T/T |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Lead Time | Special Order - Call For Quoted Lead Times | Main Input Voltage | 400 V 3 Phases |
|---|---|---|---|
| Other Input Voltage | 380 V 415 V | Other Output Voltage | Other Output Voltage |
| Battery Voltage | +/- 216...+/- 300 V | Weight | 470 Kg |
| Dimensions | 2117 X 1000 X 800 Mm | Topology | Double Conversion Online |
| Efficiency | Up To 96% | Display | LCD |
| Communication Ports | USB, RS232, SmartSlot | Frequency | 50/60Hz |
| Form Factor | Tower | ||
| Highlight | APC Easy UPS 3L 250kVA,APC Easy UPS 250kVA 250kW |
||
You can tick the products you need and communicate with us in the message board.
| E3LUPS250KHS | 250 kVA/250 kW | |
|---|---|---|
| E3LUPS300KHS | 300 kVA/300 kW | |
| E3LUPS400KHS | 400 kVA/400 kW | |
| E3LUPS500KHS | 500 kVA/500 kW | |
| E3LUPS600KHS | 600 kVA/600 kW |
Product Description
Features
The Schneider Electric Easy UPS 3L, part of the 3 phase Easy UPS range, is a easy-to-configure, easy-to-use, and easy-to-service 250-600 kVA 3-phase UPS that delivers high availability and predictability to medium and large commercial and industrial applications. Its fault-tolerant design streamlines installation and service, its compact footprint saves valuable real estate, and its up to 96% efficiency brings predictability to your utility costs. With its exceptional combination of competitive specifications, compact footprint, and highly available parallel and redundant designs, the EcoStruxure connected Easy UPS 3L is the easy choice for business continuity on your shop floor or in your electrical room. Start-up service is included to optimize your system’s performance, quality, and safety.
Benefits
Convenience
- Easy Loop Test - Verifies UPS performance before you connect your load, without the need for a load bank.
- Easy to install fast - Quickly roll the compact and lightweight UPS into position.
- Intuitive user interface - The intuitive graphical user interface allows for easy system configuration.
- ECO Mode - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Front-access servicing - Simplifies installation and UPS maintenance while minimizing space requirements.
- Straightforward installation - Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
- Optional SNMP Card - When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
- Replaceable dust filters - protect the UPS in harsh environments.
- Parallel capability - Multiple units can be placed in parallel to meet power capacity and redundancy requirements
- Wide Input Voltage Window - Saves your battery power for when you really need it - during power cuts!
Specifications
| Presentation | Easy-to-configure, easy-to-use and easy-to-service 250 kVA 3 phase UPS with an exceptional combination of competitive specifications, compact footprint, and highly available parallel and redundant designs. The EcoStruxure connected Schneider Electric Easy UPS 3L is the easy choice for business continuity on your shop floor or in your electrical room. Includes 5x8 start-up service. |
|---|---|
| Lead time | Special Order - Call for Quoted Lead Times |
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| Rated power in W | 250 kW |
| Rated power in VA | 250 kVA |
| Provided equipment | Dust filter Installation manual Start-up service |
| Efficiency | View Efficiency Graph |
|---|---|
| Battery type | External battery system |
| Battery voltage | +/- 216...+/- 300 V |
| Maximum short-circuit current | 35 kA |
| Discharge battery voltage | +/- 172.8...+/- 240 V |
| Colour | White (RAL 9003) |
|---|---|
| height | 197 cm |
| Width | 60 cm |
| Depth | 85 cm |
| Net weight | 425 kg |
| USB compatible | Yes |
| Maximum input current | 451 A |
|---|---|
| Max short time withstand current | 35 kA |
| Input harmonic distortion | Less than 3 % for full load |
| Load power factor | 0.5 leading to 0.5 lagging without derating |
| Input voltage limits | 323...477 V |
| Network frequency | 40...70 Hz |
| Maximum configurable power in VA | 250 kVA |
|---|---|
| Maximum configurable power in W | 250 kW |
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| Output harmonic distortion | < 2% linear load and < 4% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| UPS type | Double conversion online |
| product certifications | CE EAC RCM |
|---|
| ambient air temperature for operation | 0…30 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...4921 ft |
| Ambient air temperature for storage | -25…55 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…14999.82 m |
| Acoustic level | 70 dB |
| heat dissipation | 49488 Btu/h |
| IP degree of protection | IP20 |
| control panel | Touch screen LCD user interface |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2117 mm |
| Package 1 Width | 1000 mm |
| Package 1 Length | 800 mm |
| Package 1 Weight | 470 kg |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
