Home > Products >

APC UPS

>

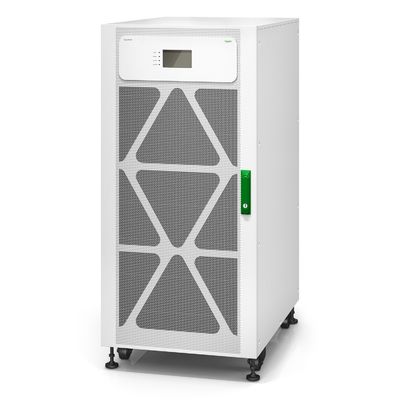

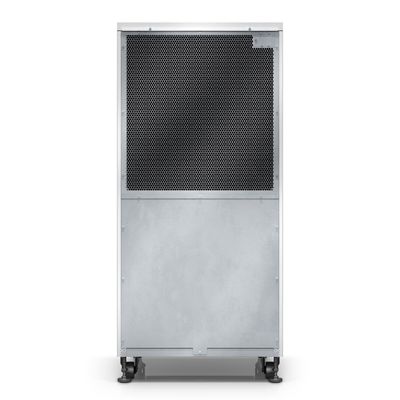

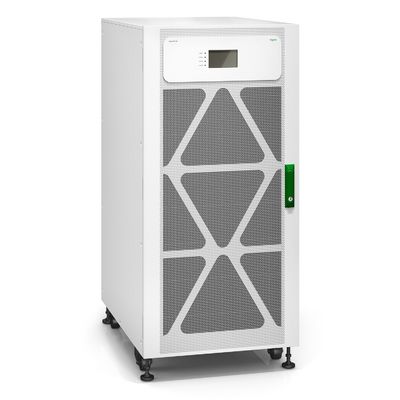

APC Easy UPS 3M 200kVA 400V 3:3 UPS E3MUPS200KHS For External Batteries

Quality APC Easy UPS 3M 200kVA 400V 3:3 UPS E3MUPS200KHS For External Batteries factory
Quality APC Easy UPS 3M 200kVA 400V 3:3 UPS E3MUPS200KHS For External Batteries factory
Quality APC Easy UPS 3M 200kVA 400V 3:3 UPS E3MUPS200KHS For External Batteries factory
Quality APC Easy UPS 3M 200kVA 400V 3:3 UPS E3MUPS200KHS For External Batteries factory

APC Easy UPS 3M 200kVA 400V 3:3 UPS E3MUPS200KHS For External Batteries

Product Summary

Features The Schneider Electric Easy UPS 3M, part of the 3 phase Easy UPS series, is an easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 60-200kVA 3 phase UPS ideal for small and medium data centers and other business critical applications. Easy UPS 3M supplies power stability and ...

Key Attributes
Brand Name: APC
Model Number: E3MUPS200KHS
Place of Origin: China
Certification: CE EAC RCM
MOQ: 1
Payment Terms: L/C, D/A, D/P, T/T
Product Custom Attributes
Highlight

APC Easy UPS 3M 200kVA

,

APC Easy UPS 200kVA

Lead Time:
Usually Ships Within 6 Weeks
Main Input Voltage:
400 V 3 Phases
Other Input Voltage:
380 V 415 V
Other Output Voltage:
380 V 415 V
Provided Equipment:
Dust Filter Installation Guide Start-up Service
Battery Type:
Sealed, Maintenance-free Lead-acid Battery
Noise Level:
Less Than 50 DBA
Efficiency:
Up To 96%
Topology:
Double Conversion Online
Communication Ports:
USB, RS-232, SmartSlot
Product Description

Features

The Schneider Electric Easy UPS 3M, part of the 3 phase Easy UPS series, is an easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 60-200kVA 3 phase UPS ideal for small and medium data centers and other business critical applications. Easy UPS 3M supplies power stability and long-lasting performance with advanced product features, robust electrical specifications and compact design to ensure your business continuity. Designed for fast and easy installation in the data center or electrical room, this EcoStruxure-ready UPS features a wide operating temperature window and strong overload protection, all in a lightweight footprint. With its exceptional combination of low Total Cost of Ownership, competitive specifications, and ease of use, the Schneider Electric Easy UPS 3M is the easy choice for your business continuity in the data center or electrical room. Start-up service is included to optimize your system’s performance, quality, and safety.

Benefits

Convenience
  • Easy Loop Test - Verifies UPS performance before you connect your load, without the need for a load bank.
  • Easy to install fast - Quickly roll the compact and lightweight UPS into position.
  • Intuitive user interface - The intuitive graphical user interface allows for easy system configuration.
  • ECO Mode - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Front-access servicing - Simplifies installation and UPS maintenance while minimizing space requirements.
  • Straightforward installation - Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Protection
  • Optional SNMP Card - When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
  • Replaceable dust filters - protect the UPS in harsh environments.
  • Parallel capability - Multiple units can be placed in parallel to meet power capacity and redundancy requirements
  • Wide Input Voltage Window - Saves your battery power for when you really need it - during power cuts!

Specifications



Overview
Presentation Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 200 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5x8 start-up service.
Lead time Usually Ships within 6 Weeks

Main
Main Input Voltage 400 V 3 phases
Other Input Voltage 380 V
415 V
Main Output Voltage 400 V 3 phases
Other Output Voltage 380 V
415 V
Rated power in W 200 kW
Rated power in VA 200 kVA
Provided equipment Dust filter
Installation guide
Start-up service

Batteries & Runtime
Efficiency View Efficiency Graph
action_new_window
Battery type External battery system
Number of battery filled slots 0
Number of battery free slots 0

Physical
Colour White (RAL 9003)
height 130 cm
Width 60 cm
Depth 85 cm
Net weight 304 kg
USB compatible Yes

Input
Maximum input current 336 A
Max short time withstand current 10 kA
Input harmonic distortion Less than 3 % for full load
Load power factor 0.5 leading to 0.5 lagging without derating
Input Power Factor at Full Load 0.99
Input voltage limits 342...477 V
Network frequency 40...70 Hz

Output
Maximum configurable power in VA 200 kVA
Maximum configurable power in W 200 kW
Output frequency 50 Hz sync to mains
60 Hz sync to mains
Harmonic distortion Less than 3 %
Output harmonic distortion < 3% linear load and < 5% non-linear load
Output overload operation 10 minutes at 125% and 60 seconds at 150%
Output voltage tolerance +/- 1 %
UPS type Double conversion online
Wave type Sine wave

Environmental
ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...4921 ft
Ambient air temperature for storage -25…55 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 72 dBA
heat dissipation 34121 Btu/h
IP degree of protection IP20

Communications & Management
control panel Touch screen LCD user interface

Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 150 cm
Package 1 Width 97.5 cm
Package 1 Length 72.5 cm
Package 1 Weight 338 kg

Contractual warranty
Warranty 1 year on-site repair or replace with factory authorized Start-Up
