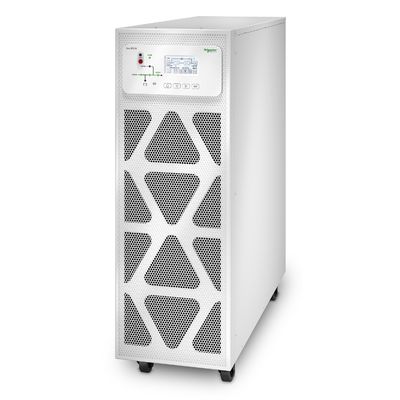

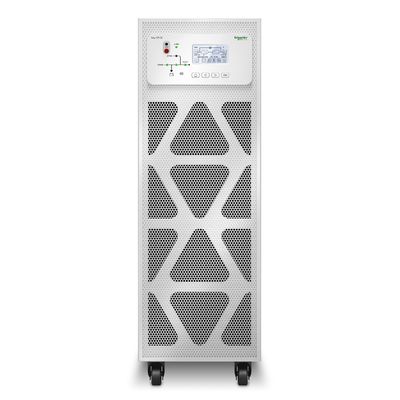

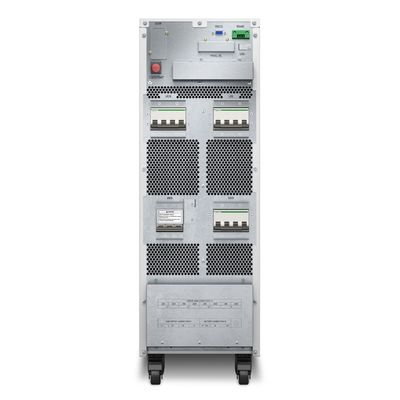

APC Easy UPS 3S 40 KVA 400V 3:3 UPS E3SUPS40KH For External Batteries
| Place of Origin | China |
|---|---|
| Brand Name | APC |
| Certification | CE EAC RCM |
| Model Number | E3SUPS40KH |
| Minimum Order Quantity | 1 |
| Payment Terms | L/C, D/A, D/P, T/T |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Easy UPS 3S 40 kVA,APC Easy UPS 3S 40 kVA,APC Easy UPS 40kVA 400V |
||
|---|---|---|---|
You can tick the products you need and communicate with us in the message board.
| E3SUPS10KH | 10 kVA/10 kW | |
|---|---|---|
| E3SUPS15KH | 15 kVA/15 kW | |
| E3SUPS20KH | 20 kVA/20 kW | |
| E3SUPS30KH | 30 kVA/30 kW | |
| E3SUPS40KH | 40 kVA/40 kW |
Product Description
Features
The Schneider Electric Easy UPS 3S supplies power stability with robust electrical specifications and long-lasting performance to ensure your business continuity. Designed for fast and easy installation in the data center or electrical room, this EcoStruxure connected UPS features a wide operating temperature window and strong overload protection, all in a compact and lightweight footprint. With its exceptional combination of advanced product features, competitive specifications and ease of installation, use, and service, the Schneider Electric Easy UPS 3S is the easy choice for your business continuity. Schneider Electric recommends purchasing Start-Up Service to optimize your system’s performance, quality, and safety.
Benefits
Convenience
- Easy Loop Test - Verifies UPS performance before you connect your load, without the need for a load bank.
- Easy to install fast - Quickly roll the compact and lightweight UPS into position.
- Intuitive user interface - The intuitive graphical user interface allows for easy system configuration.
- ECO Mode - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Front-access servicing - Simplifies installation and UPS maintenance while minimizing space requirements.
- Straightforward installation - Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
- Optional SNMP Card - When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
- Replaceable dust filters - protect the UPS in harsh environments.
- Parallel capability - Multiple units can be placed in parallel to meet power capacity and redundancy requirements
- Wide Input Voltage Window - Saves your battery power for when you really need it - during power cuts!
Specifications
| Presentation | High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution. |
|---|---|
| Lead time | Usually Ships within 6 Weeks |
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| Rated power in W | 20 kW |
| Rated power in VA | 20 kVA |
| Provided equipment | Dust filter Installation guide |
| Efficiency | View Efficiency Graph |
|---|---|
| Battery type | External battery system |
| Maximum short-circuit current | 10 kA |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Colour | White (RAL 9003) |
|---|---|
| height | 77 cm |
| Width | 25 cm |
| Depth | 80 cm |
| Net weight | 58 kg |
| USB compatible | Yes |
| Maximum input current | 37 A |
|---|---|
| Load power factor | 0.9 leading to 0.9 lagging |
| Input Power Factor at Full Load | 0.99 |
| Input voltage limits | 304...477 V |
| Network frequency | 45...65 Hz |
| Maximum configurable power in VA | 20 kVA |
|---|---|
| Maximum configurable power in W | 20 kW |
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| Harmonic distortion | Less than 3 % |
| Output harmonic distortion | < 3% linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| UPS type | Double conversion online |
| Bypass type | Built-in maintenance bypass |
| Crest factor | 3 : 1 |
| product certifications | CE EAC RCM |
|---|
| ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3281 ft |
| Ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…14999.82 m |
| Acoustic level | 60 dBA |
| heat dissipation | 900 W |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 101.5 cm |
| Package 1 Width | 98.2 cm |
| Package 1 Length | 40 cm |
| Package 1 Weight | 75 kg |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
