11kVA 10kW Eaton 9PX UPS Rack / Tower 3:1 Power Module 9PX11KIPM31
| Place of Origin | China |
|---|---|
| Brand Name | Eaton |
| Certification | CE |
| Model Number | Eaton 9PX UPS |
| Packaging Details | cartons |
| Delivery Time | 60days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/months |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Eaton 9PX UPS | Power Level | 1 KVA - 11 KVA |
|---|---|---|---|
| Form Factor | Rack/Tower | Technology | Online UPS |
| Rated Frequency | 50-60 Hz | Input Voltage | 200/208/220/230/240V |
| Output Voltage | 200/208/220/230/240V | Efficiency | 98% |
| Short Circuit Current | 90A/120A | Overload Capacity | 102-110% : 120s, 110-125%: 60s, 125-150%: 10s, >150%: 900ms |
| Battery Management | ABM® And Temperature Compensated Charging Method (user Selectable), Automatic Battery Test, Deep Discharge Protection | Communication Ports | 1 USB Port + 1 RS232 Serial Port And Relay Contacts |
| Communication Slot | 1 Slot For Network-MS Board (standard In Netpack Version), ModBus-MS Or Relay-MS Board. | Operating Temeprature | 0 ~ 40°C |
| Noise Level | <50db | Safety | IEC/EN 62040-1, UL 1778（1:1） |
| EMC, Performance | IEC/EN 62040 -2, FCC Class A（1:1），IEC/EN 62040-3 | Approvals | CE，CB（TUV），UL（1:1） |
| Highlight | 11kVA Eaton 9PX UPS,10kW Eaton 9PX UPS,9PX11KIPM31 |
||
You can tick the products you need and communicate with us in the message board.
| Model | Power | |
|---|---|---|
| 9PX1000iRT2U | 1000VA/1000W | |
| 9PX1500IRT2U | 1500VA/1500W | |
| 9PX2200iRT2U | 2200VA/2200W | |
| 9PX2200iRT3U | 2200VA/2200W | |
| 9PX3000iRT2U | 3000VA/3000W | |
| 9PX3000iRT3U | 3000VA/3000W | |
| 9PX5Ki | 5000VA/4500W | |
| 9PX6Ki | 6000VA/5400W | |
| 9PX8KiPM | 8000VA/7200W | |
| 9PX11KiPM | 11000VA/10000W | |
| 9PX6KIPM31 | 6000VA/5400W | |
| 9PX8KIPM31 | 8000VA/7200W | |
| 9PX11KIPM31 | 11000VA/10000W |
Product Description

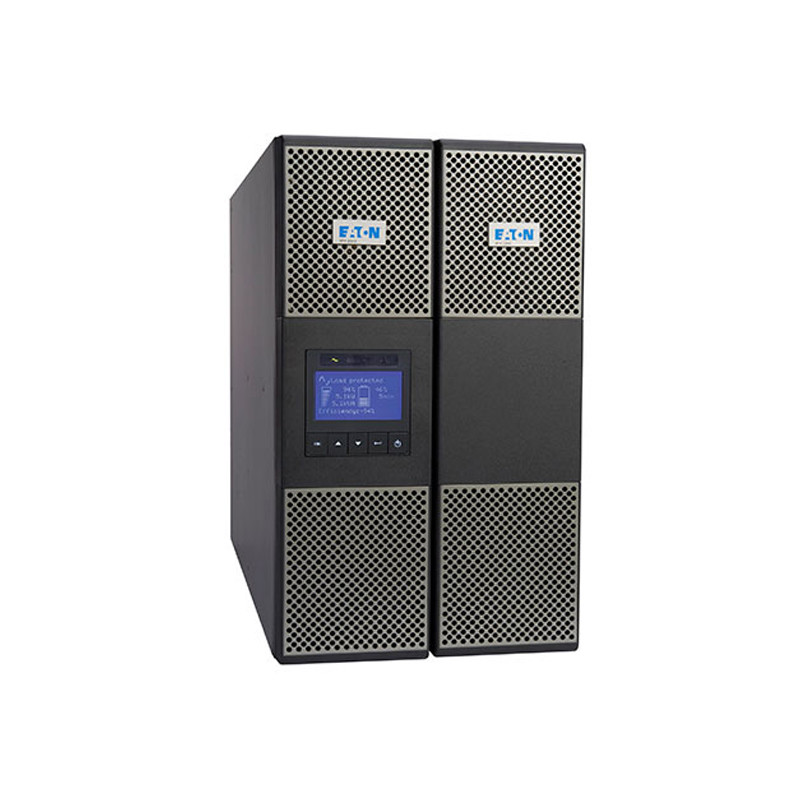

Eaton 9PX Rack/Tower 11kVA 10kW UPS 3:1 Power Module 9PX11KIPM31
Eaton Powerware 9PX 11kVA 3:1 Power Module (no internal batteries, add 1 x 9PXEBM240 minimum to make UPS) 9PX11KiPM31
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
- Online double conversion topology
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology (available in Q2 2013)
- Maintenance ByPass available as standard (on HotSwap/BP version)
- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Part Number: 9PX11KiPM31
General
Topology On-line double conversion with PFC (Power Factor Correction) system
Configuration Rack/Tower
Rating (VA/Watts) 11000/10000
Dimensions (H x W x D, mm) 440 x 260 x 700
Weight (kg) 88
Topology On-line double conversion with PFC (Power Factor Correction) system
Configuration Rack/Tower
Rating (VA/Watts) 11000/10000
Dimensions (H x W x D, mm) 440 x 260 x 700
Weight (kg) 88
Input Voltage Range 305V-480V without derating (up to 175V-480V with derating)
Nominal Voltage 380/400/415V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz
Short Circuit Current 150 A
THDI <5%
