Eaton 9PX6KIPM31 3:1 Power Module UPS 6000VA 5400W 3U UPS
| Place of Origin | China |
|---|---|
| Brand Name | Eaton |
| Certification | CE |
| Model Number | Eaton 9PX UPS |
| Packaging Details | cartons |
| Delivery Time | 60days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/months |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Eaton 9PX UPS | Power Level | 1 KVA - 11 KVA |
|---|---|---|---|
| Form Factor | Rack/Tower | Technology | Online UPS |
| Rated Frequency | 50-60 Hz | Input Voltage | 200/208/220/230/240V |
| Output Voltage | 200/208/220/230/240V | Efficiency | 98% |
| Short Circuit Current | 90A/120A | Overload Capacity | 102-110% : 120s, 110-125%: 60s, 125-150%: 10s, >150%: 900ms |
| Battery Management | ABM® And Temperature Compensated Charging Method (user Selectable), Automatic Battery Test, Deep Discharge Protection | Communication Ports | 1 USB Port + 1 RS232 Serial Port And Relay Contacts |
| Communication Slot | 1 Slot For Network-MS Board (standard In Netpack Version), ModBus-MS Or Relay-MS Board. | Operating Temeprature | 0 ~ 40°C |
| Noise Level | <50db | Safety | IEC/EN 62040-1, UL 1778（1:1） |
| EMC, Performance | IEC/EN 62040 -2, FCC Class A（1:1），IEC/EN 62040-3 | Approvals | CE，CB（TUV），UL（1:1） |
| Highlight | Eaton 9PX6KIPM31,Power Module UPS 6000VA,Eaton Power Module UPS |
||
You can tick the products you need and communicate with us in the message board.
| Model | Power | |
|---|---|---|
| 9PX1000iRT2U | 1000VA/1000W | |
| 9PX1500IRT2U | 1500VA/1500W | |
| 9PX2200iRT2U | 2200VA/2200W | |
| 9PX2200iRT3U | 2200VA/2200W | |
| 9PX3000iRT2U | 3000VA/3000W | |
| 9PX3000iRT3U | 3000VA/3000W | |
| 9PX5Ki | 5000VA/4500W | |
| 9PX6Ki | 6000VA/5400W | |
| 9PX8KiPM | 8000VA/7200W | |
| 9PX11KiPM | 11000VA/10000W | |
| 9PX6KIPM31 | 6000VA/5400W | |
| 9PX8KIPM31 | 8000VA/7200W | |
| 9PX11KIPM31 | 11000VA/10000W |
Product Description

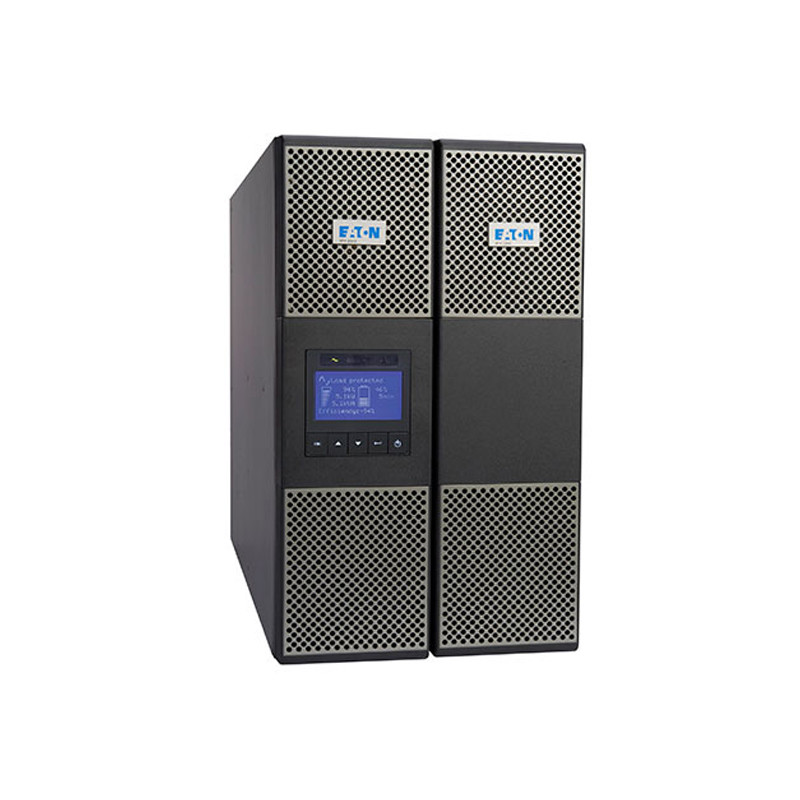

Eaton 9PX6KIPM31 3:1 Power Module 6000VA/5400W 3U UPS
The Eaton 9PX UPS series delivers energy-efficient power protection for small-to-medium-sized data centres, IT rooms, and critical infrastructure. IT and facilities managers who are worried about energy costs and looking for next-generation power protection solutions will find the 9PX to be a great choice. It offers online double-conversion protection while using 40% less energy, making it a great choice for both groups.
The 9PX (5-11kVA) may be paralleled to generate twice the power of a unitary product at no additional expense.
Energy Star certified, the Eaton 9PX offers the best level of energy and cooling expense savings. 9PX can measure energy consumption down to the outlet group level. Monitor kWh numbers using the LCD or Eaton's Intelligent Power Software.
With an optional network card and Eaton's Intelligent Power Software Suite, which works with all major operating systems, the 9PX works well with leading virtualization environments and cloud orchestration platforms.
- Online double-conversion technology to constantly monitor power conditions & regulate voltage & frequency
- Internal bypass allows service continuity in case of internal fault
- 0.9 power factor delivers 28% more power than other UPSs in its class
- Versatile 3U rack/tower format (rack-mounting kit sold separately)
- Innovative graphical LCD display brings all operating information at first sight
- Load segment control enables prioritised shutdowns of non-essential equipment during outages
- Parallel operation using HotSync technology
- Eaton ABM battery management technology
- External hot-swappable battery modules can be added for longer power availability
- (1) USB port, (1) RS232 serial port (USB & RS232 ports cannot be used simultaneously), (4) dry contacts (DB9), (1) mini terminal block for remote On/Off & (1) for remote power Off, (1) DB15 for parallel operation
- (1) slot for Network-M2, Network-MS, ModBus-MS or Relay-MS management cards
- Input: Terminal block (three-phase)
- Output: Terminal block
- 2-year warranty on electronics & batteries
General
Device Type:
- UPS - Power Factor Correction (PFC) - rack-mountable / external
Battery Enclosure Type:
- Plug-in module
Height (Rack Units):
- 3U
Rack Size:
- 19"
Power Device
UPS Technology:
- On-line
Supported Power Modules Qty:
- 12
Input Voltage:
- AC 380/400/415 V
Input Voltage Range:
- AC 305 - 480 V
Frequency Provided:
- 50/60 Hz
Frequency Required:
- 50/60 Hz
Input Connectors:
- Hardwire
Power Output Connectors Details:
- 4 x power IEC 60320 C19
- 1 x hardwire
Output Voltage:
- AC 200/208/220/230/240/250 V ± 1% - 50/60 Hz
Power Capacity:
- 5400 Watt / 6000 VA
Surge Suppression:
- Yes
Battery
Type:
- Expandable
Networking
Remote Management Interface:
- RS-232, USB
Expansion / Connectivity
Interfaces:
- 1 x RS-232 - 9 pin D-Sub (DB-9)
- 1 x USB - 4 pin USB Type B
- 1 x EPO (emergency power off)
Expansion Slots:
- 1 (total) / 1 (free) x expansion slot
Miscellaneous
Features:
- Advance Battery Management (ABM), LCD display, LED indicators, deep discharge protection, automatic self-test
Compliant Standards:
- CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2
Software / System Requirements
OS Required:
- Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
Sustainability Information
ENERGY STAR:
- Yes
Manufacturer Warranty
Service & Support:
- Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature:
- 32 °F
Max Operating Temperature:
- 104 °F
Sound Emission:
- 48 dB
Dimensions & Weight
Width:
- 17.3 in
Depth:
- 27.6 in
Height:
- 5.1 in
Weight:
- 50.71 lbs
