Eaton Powerware 9PX 6kVA 1:1 UPS Online Rack / Tower Eaton 9PX6Ki
| Place of Origin | China |
|---|---|
| Brand Name | Eaton |
| Certification | CE |
| Model Number | Eaton 9PX UPS |
| Packaging Details | cartons |
| Delivery Time | 60days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/months |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Eaton 9PX UPS | Power Level | 1 KVA - 11 KVA |
|---|---|---|---|
| Form Factor | Rack/Tower | Technology | Online UPS |
| Rated Frequency | 50-60 Hz | Input Voltage | 200/208/220/230/240V |
| Output Voltage | 200/208/220/230/240V | Efficiency | 98% |
| Short Circuit Current | 90A/120A | Overload Capacity | 102-110% : 120s, 110-125%: 60s, 125-150%: 10s, >150%: 900ms |
| Battery Management | ABM® And Temperature Compensated Charging Method (user Selectable), Automatic Battery Test, Deep Discharge Protection | Communication Ports | 1 USB Port + 1 RS232 Serial Port And Relay Contacts |
| Communication Slot | 1 Slot For Network-MS Board (standard In Netpack Version), ModBus-MS Or Relay-MS Board. | Operating Temeprature | 0 ~ 40°C |
| Noise Level | <50db | Safety | IEC/EN 62040-1, UL 1778（1:1） |
| EMC, Performance | IEC/EN 62040 -2, FCC Class A（1:1），IEC/EN 62040-3 | Approvals | CE，CB（TUV），UL（1:1） |
| Highlight | Eaton Powerware 9PX,Eaton 9PX6Ki |
||
You can tick the products you need and communicate with us in the message board.
| Model | Power | |
|---|---|---|
| 9PX1000iRT2U | 1000VA/1000W | |
| 9PX1500IRT2U | 1500VA/1500W | |
| 9PX2200iRT2U | 2200VA/2200W | |
| 9PX2200iRT3U | 2200VA/2200W | |
| 9PX3000iRT2U | 3000VA/3000W | |
| 9PX3000iRT3U | 3000VA/3000W | |
| 9PX5Ki | 5000VA/4500W | |
| 9PX6Ki | 6000VA/5400W | |
| 9PX8KiPM | 8000VA/7200W | |
| 9PX11KiPM | 11000VA/10000W | |
| 9PX6KIPM31 | 6000VA/5400W | |
| 9PX8KIPM31 | 8000VA/7200W | |
| 9PX11KIPM31 | 11000VA/10000W |
Product Description

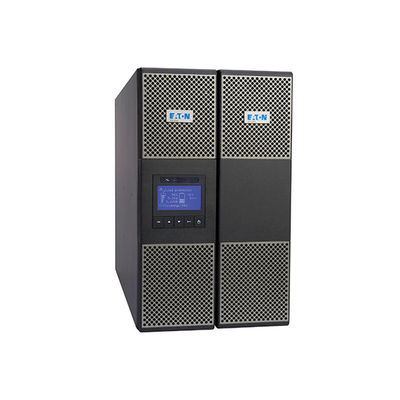

Eaton Powerware 9PX 6kVA 1:1 UPS Online Rack/Tower 9PX6Ki
The Eaton 9PX 6000 VA 1:1 UPS 9PX6KI is an on-line double conversion with PFC (Power Factor Correction) system. This proven, best-in-class online UPS featuring ABM technology extends battery service life up to 50 percent. With a double-conversion topology for constant power conditioning and battery packs for extended runtime, this UPS is built for scalable deployment and features a graphical LCD interface.
You may also check all the UPS models in various brands we have at The Telecomshop.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 36-month manufacturer's warranty.
FEATURES
• Reliable.
• Versatile.
• Powerful.
• Efficient.
QUICK SPECIFICATIONS
• Product Type: Dual Conversion Online UPS
• Emergency Power OFF: Yes
• Certifications & Standards:
- IEC/EN 62040-1
- UL 1778
- CSA 22.2
- IEC/EN 62040 -2
- FCC Class A
- IEC/EN 62040-3 (Performance)
- C-Tick
- CE
- CB report (TUV)
- UL
• Backup/Run Time (Half Load): 8 Minute
• Backup/Run Time (Full Load): 3 Minute
• Weight (Approximate): 48 kg
• Form Factor: Rack/Tower
• Rack Height: 3U
• Height: 130 mm
• Width: 440 mm
• Depth: 685 mm
• Plug/Connector Type: Hardwired
• Receptacle Type:
- IEC 60320 C19
- IEC 60320 C13
- Hardwired
• Receptacle Detail:
- 2 x IEC 60320 C19
- 8 x IEC 60320 C13
• Input Voltage:
- 220 V AC
- 110 V AC
• Output Voltage:
- 200 V AC
- 230 V AC
- 240 V AC
- 208 V AC
- 220 V AC
• Load Capacity: 6 kVA/5.40 kW
• Output Frequency: 60 Hz
• Input Frequency: 70 Hz
