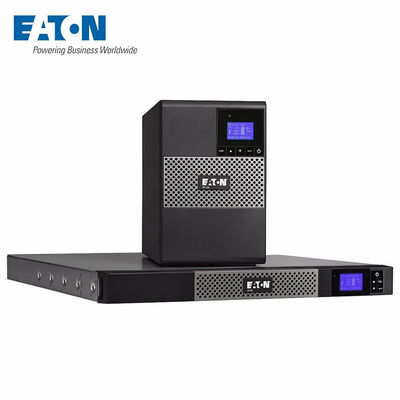

Overload Protection Eaton 5P UPS 1150VA 770W Eaton 5P 1150I Rack1U
Eaton 5P Rackmount Compact 1150 VA UPS Eaton 5P 1150i Rack1U The new Eaton 5P is the next generation line-ineractive UPS, with advanced LCD and energy measurement functions. The 5P is the perfect UPS for protecting IT and network devices such as servers, switches, routers, and storage devices. ...
Overload Protection Eaton 5P UPS
,Eaton 5P UPS 1150VA
,Eaton 5P 1150I Rack1U
Eaton 5P Rackmount Compact 1150 VA UPS
Eaton 5P 1150i Rack1U
General Data:
- 1150 VA / 770 W.
- 160 - 294 V.
- 7 min battery life at 70% load
- 1 USB and 1 serial ports as well as relay contacts
- 1 mini terminal block for remote on/off and remote shutdown
- 1 slot for network MS, Modbus MS or relay MS cards
- Line-Interactive Technology
- 6 Cold Appliance Sockets
- Automatic Battery Test
Ideal protection for:
- Servers
- Networks
- Storage Devices
Standards:
- IEC/EN 62040-1
- UL 1778
- IEC/EN 62040-2
- IEC/EN 62040-3
- CB Report
- CE mark
The new graphical LCD display provides clear information on the status and measurement data of the UPS at a glance (in seven languages). The advanced configuration options are also accessible via easy-to-use navigation keys.
Energy-efficient UPS: Thanks to its optimized electrical design, the 5P operates with up to 98% efficiency and thus reduces cooling and power costs.
Output with pure sine wave: In battery operation, the 5P delivers a high-quality output voltage and thus also supplies sensitive devices such as power factor corrected servers (PFC).
Stronger batteries that also live longer: Eaton's ABM® technology uses an innovative three-stage charging technology that extends battery life by up to 50%.
The batteries can be replaced without having to shut down the connected equipment (hot-swapping).
Further technical details can be found in the data sheet.
- Electrical values
-
- Performance
- 770 W
- Performance
- 1150 VA
- Output voltage
- 230 V AC
- Input voltage
- 160-294 VAC
- Implementation
-
- Operating duration half demand
- 12 Min.
- General
-
- Output
- 6x Katgerätebuchsen
- Approval
- CE, CB
- Type
- UPS
- Colour
- Black
- Input
- IEC plug
- Interfaces
-
- Seriell Port
- 1x
- USB
- 1x
- Measures
-
- Width
- 438 mm
- Depth
- 509 mm
- Height
- 43.2 mm
- Specials
-
- Overload protection
- Yes
- Weights
-
- Weight
- 14.6 kg
- Display
-
- Display
- LCD display
- Power supply
-
- Mains voltage input
- 230 V AC
- Mains frequency
- 50/60 Hz
- Mains plug
- F - earthed mains plug CEE 7/4
- Power supply, on device
- C14 - cold device socket (m)
- Output voltage
- 230 V AC
- Output voltage, connection
- Socket output, type F - protective contact
- Manufacturer specifications
-
- Manufacturer
- EATON
- Factory number
- 5P1150IR
- Package weight
- 18.6 kg
- RoHS
- conform
-
