CE Eaton 5P UPS / Eaton 5P 850VA Line Interactive Rackmount High Frequency
| Place of Origin | China |
|---|---|
| Brand Name | Eaton |
| Certification | CE |
| Model Number | Eaton 5P UPS |
| Packaging Details | cartons |
| Delivery Time | 60days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/months |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Eaton 5P UPS | Power Level | 650 - 1550 VA |
|---|---|---|---|
| Technology | Line-Interactive High Frequency | Form Factor | Rack, Tower And Wall-mount |
| Rated Frequency | 50-60 Hz | Input Voltage | 160V-294V |
| Output Voltage | 200V / 208V / 220V / 230V / 240V | Switched Outlet Group | 2 Outlet Groups |
| Typical Backup Times At 50 And 70% Load | 9/6mins 12/7mins 12/7mins 13/8mins | Battery Management | ABM® & Temperature Compensated Charging Method |
| Communication Ports | 1 USB Port + 1 RS232 Serial Port And Relay Contacts | Communication Slot | 1 Slot For Network-M2 Card , INDGW-M2 Or Relay-MS Cards |
| Operating Temeprature | 0 To 35°C | Noise Level | <40dB |
| Safety | IEC/EN 62040-1, UL 1778 | EMC, Performance | IEC/EN 62040 -2 , IEC/EN 62040-3 |
| Approvals | CE, CB Report (TUV) | ||
| Highlight | CE Eaton 5P UPS,Eaton 5P UPS High Frequency,Eaton 5P 850VA |
||
You can tick the products you need and communicate with us in the message board.
| Model | Power | |
|---|---|---|
| 5P650iR | 650VA/420W | |
| 5P850iR | 850VA/600W | |
| 5P1150iR | 1150VA/770W | |
| 5P1550iR | 1550VA/1100W | |
| 5P650i | 650VA/420W | |
| 5P850i | 850VA/600W | |
| 5P1150i | 1150VA/770W | |
| 5P1550i | 1550VA/1100W |
Product Description

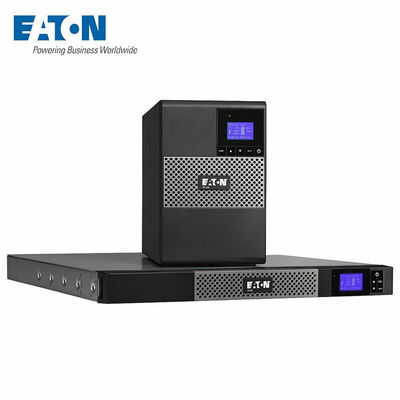

Eaton 5P 850VA Line Interactive Rackmount UPS
Eaton 5P850iR
Eaton 5P UPS, 850 VA, 600 W, Rack, 1U
Eaton 5P850iR. Puissance de sortie, capacité (VA): 850 VA, Puissance de sortie: 600W, tension de voltage à l'entrée (min): 150V. Types de sortie AC: C13 coupler, Prise mâle: C14 coupler. Temps de secours type à demi de charge: 12 min. Elément de format: Rackmount, Grille de montage: 1U, Couleur: Noir, Gris. Forme d'onde: Sine, Niveau sonore: 40 dB Le nouvel onduleur Eaton 5P est à la pointe de la technologie line interactive. De 650VA à 1550VA, il est muni d'un écran LCD dernière génération et de la fonction de mesure d'énergie. 5P est l'onduleur idéal pour la protection de vos équipements réseaux & IT, de vos serveurs, switches, routeurs et autres équipements de stockage. Disponible en version Tour ou Rack.
| Brand | Eaton |
|---|---|
| Item model number | 5P850IR |
| Item Weight | 17.6 pounds |
| Product Dimensions | 19.69 x 16.93 x 1.57 inches |
| Item Dimensions LxWxH | 19.69 x 16.93 x 1.57 inches |
| Number of Processors | 1 |
| Voltage | 294 Volts |
| Batteries | 1 Lithium Ion batteries required. |
| Manufacturer | Eaton |
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY - MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
WATTAGE
600 W
OUTPUT POWER FACTOR
0.7
FORM FACTOR
Rack
ENCLOSURE
Black/silver
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE - MIN
150 V
OUTPUT VOLTAGE - MAX
240 V
SECONDARY FREQUENCY - MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lead-acid maintenance-free (replaceable)
EFFICIENCY
97
SPECIAL FEATURES
- Automatic Voltage Regulation (AVR)
- High-density protection for networks: 1U only
- Energy efficient, reduce energy and cooling costs
- Delivers clean sinewave output
- 1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
- Fully integrates with Eaton Intelligent Power Manager software
- 1 USB port + 1 serial port
- Advanced Battery Management (ABM) technology to increase battery lifetime
- Next-generation graphical LCD display
- Hot swappable batteries
- Remote reboot and runtime optimization thanks to 2 manageable outlet groups
CONSTRUCTION TYPE
482.6 mm (19 inch) device
OUTPUT VOLTAGE - MIN
200 V
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
TOPOLOGY
Line-interactive
BTU RATING
Online: 123
RUNTIME AT HALF LOAD
12 min
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
INPUT VOLTAGE - MAX
294 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
4
VA RATING
850 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(4) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
- Rack-mounting kit
- Cable locking system
- USB cable
- Serial cable
- (2) IEC-IEC cables
- Quickstart guide
- Safety instructions
NOISE LEVEL
<40 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
USER INTERFACE
Multilingual graphical LCD display
BATTERY QUANTITY
2
RACK SIZE
1U
VOLTAGE
230V
TEMPERATURE RANGE
0-90% non-condensing
ETHERNET INTERFACE
No
COMMUNICATION
- USB port (HID compliant)
- Serial port (RS232)
- Mini-terminal block for remote On/Off and Remote Power Off
- Dry contacts (2 outputs, optocoupler, RJ)
RELATIVE HUMIDITY
0-90% non-condensing
RACK MOUNTING KIT
Yes
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
4 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY - MIN
47 Hz
BATTERY RATING
12 V / 7 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
160-294 V (adjustable to 150 V-294 V)
NOMINAL FREQUENCY
50-60 Hz
PRIMARY FREQUENCY - MAX
70 Hz
ALTITUDE
2000m
PRODUCT NAME
Eaton 5P UPS
CATALOG NUMBER
5P850IR
UPC
743172042910
PRODUCT LENGTH/DEPTH
509 mm
PRODUCT HEIGHT
43.2 mm
PRODUCT WIDTH
438 mm
PRODUCT WEIGHT
13.8 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
CE Marked
TUV
TUV
CERTIFICATIONS
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
