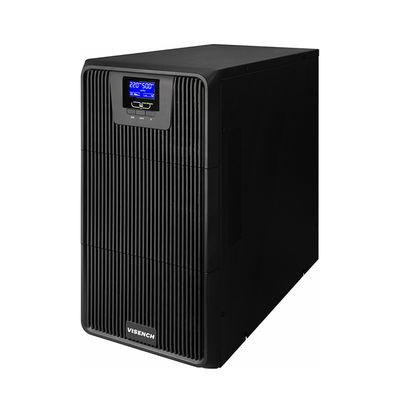

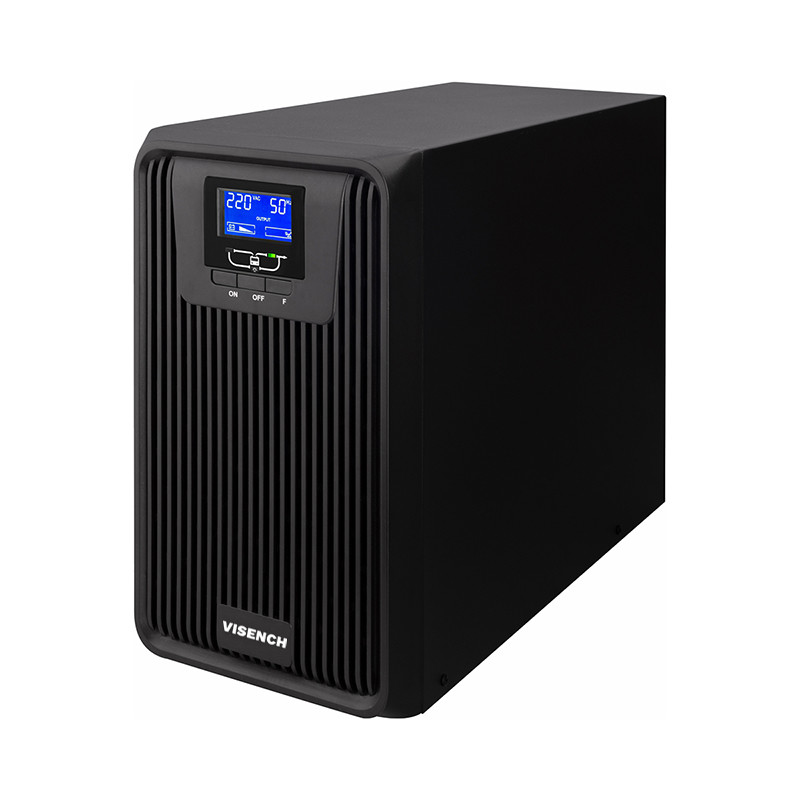

10KVA-20KVA Visench 3CK Series UPS True Online Double Conversion
| Place of Origin | China |
|---|---|
| Brand Name | Visench |
| Certification | CE |
| Model Number | Visench 3CK series UPS |
| Packaging Details | cartons |
| Delivery Time | 30days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/months |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | On-line UPS (10-20kVA) | Rated Capacity | 10KVA-20KVA |
|---|---|---|---|
| Power Factor | 0.9 | Input Voltage | 380VAC |
| Input Frequency | 50/60Hz | Output Voltage | 220V/230V/240V ±1%, |
| Output Frequency | 50/60Hz | Overload Capacity | 105%-125% : 10min, 125%-150% : 30s |
| Parallel | Maximum Parallel Machine: 3 Units | Display | LCD |
| Communication Interface | RS232/USB/MODBUS | Environment Humidity | 5 - 95%, No Condensation |
| Storage Environment | –15 ~ +55℃ | Operating Temperature | 0～40℃ |
| Altitude | ≤ 1000m | Size | 533*260*501mm |
| Weight | 23kg/32kg/33kg | Safety Standard | IEC/EN 62040-1,IEC/EN 62040-2 IEC 61000 |
| Highlight | 10KVA True Online UPS,20KVA True Online UPS,10KVA True Online Double Conversion UPS |
||
You can tick the products you need and communicate with us in the message board.
| Model | Power | |
|---|---|---|
| 3C10KS | 10KVA | |
| 3C15KS | 15KVA | |
| 3C20KS | 20KVA |
Product Description
Visench 3CK series UPS 10KVA-20KVA
True On-Line UPS
Functions & features:
DSP system
Wide AVR range
True on-line UPS
IGBT technology
Double Conversion
Overload and short circuit protection LCD display
N+X parallel connection(6-20KVA)
Cold start
Intelligent slot for SNMP adaptor(optional) On-line maintenance service
Isolation transformer(optional)
Product Certification
CE:
Standard:
EN 62040-2:2006
(EN 61000-4-2:2009,
EN 61000-4-3:2006+A 1:2008+A2:2010, EN 61000-4-4:2004+A 1:2010,
EN 61000-4-5:2006,
EN 61000-4-6:2009,
EN 61000-4-8:2010,
EN 61000-4-11 :2004,
EN 61000-2-2:2002)
