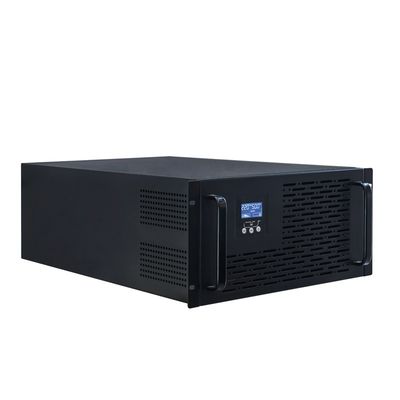

33-15KL Pure Sine Wave 3 Phase Online ups 15kva Overcurrent Protect Rack Mount UPS System Backup Power For Medical
High Frequency Online UPS XT Series (single phase) PRODUCT FEATURES 1. Advanced CPU digital control technology 2. Active input power factor correction (PFC) 3. Frequency adaptive system 4. Ultra wide input voltage range 5. Output power factor is 0.9 6. Ultra wide input frequency range 7. Strong scalability 8. Green and environmental protection PARAMETER 1-3KVA Model X1KVA 1KS 2KVA 2KS 3KVA 3KS Rated Power 1kVA/0.9kW 2kVA/1.8kW 3kVA/2.7kW Input Voltage Range 90-285Vac 1P2W+G
3 phase online UPS 15kva
,rack mount UPS system backup power
,medical pure sine wave UPS
High Frequency Online UPS
XT Series (single phase)
PRODUCT FEATURES
1. Advanced CPU digital control technology
2. Active input power factor correction (PFC)
3. Frequency adaptive system
4. Ultra wide input voltage range
5. Output power factor is 0.9
6. Ultra wide input frequency range
7. Strong scalability
8. Green and environmental protection
| PARAMETER 1-3KVA | |||||||
| Model | X1KVA | 1KS | 2KVA | 2KS | 3KVA | 3KS | |
| Rated Power | 1kVA/0.9kW | 2kVA/1.8kW | 3kVA/2.7kW | ||||
| Input | Voltage Range | 90-285Vac 1P2W+G | |||||
| Working Frequency Range | 40-70Hz (settable) | ||||||
| Input Power Factor | ≥0.99 | ||||||
| Output | Rated Voltage and Accuracy | 220Vac(1±2%) 1P2W+G | |||||
| Output Frequency | 46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery) | ||||||
| Rated Current | 4.5A | 9.1A | 13.6A | ||||
| Output Power Factor | 0.9 | ||||||
| Output Harmonic Wave | ≤4% (Full R load) | ||||||
| Crest Factor | 3: | 1 | |||||
| Output Overload | Overload pre-warning :100%±2%＜Load Output warning:102%±2%≤Load≤110%±2%: Convert to bypass mode and alarm after 30mins; Output warning:110%±2%＜Load≤130%±2%: Convert to bypass mode and alarm after 10mins; Output warning:130%±2%＜Load≤150%±2%: Convert to bypass mode and alarm after 30s; Convert to bypass mode and alarm after 200ms, Load＞150%±2% |
||||||
| Conversion time between Mains Power and Battery | 0ms | ||||||
| Efficiency | ≥90% (Normal mode) | ||||||
| Battery | Rated Voltage | 24Vdc | 36Vdc | 48Vdc | 72Vdc | 72Vdc | 96Vdc |
| Quantity | 2 | External | 4 | External | 6 | External | |
| Charging Current | 1A | 5.5A | 1A | 5.5A | 1A | 5.5A | |
| Dimension (LxWxH) mm | 280x144x230 | 400x144x230 | 425x190x328 | 400x144x230 | |||
| Weight | 7.8kg | 4.2kg | 13.3kg | 6.4kg | 23.4kg | 6.5kg | |
| Working Temperature | 0℃-40℃ | ||||||
| Working Humidity | 20%-95% (non-condensing) | ||||||
| Noise | ≤50dB | ||||||
-
