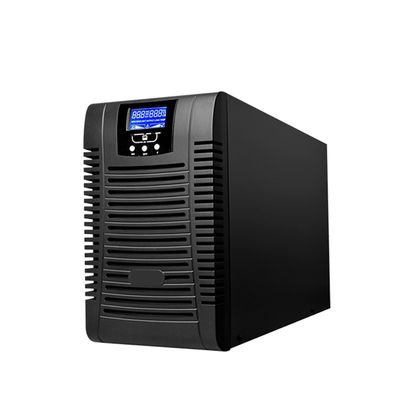

Wide Input Voltage 220v Pure Sine Wave High Frequency Power Supply Single Phase Online Ups For Telecom Library
| Place of Origin | China |
|---|---|
| Brand Name | Visench |
| Model Number | 1K |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton |
| Delivery Time | 30days |
| Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conversion Time | 0ms | Environment Humidity | 5 - 95%, No Condensation |
|---|---|---|---|
| Parallel | Maximum Parallel Machine: 3 Units | Rated Capacity | 1KVA -10KVA |
| Input Voltage | 220V | Output Voltage | 220V |
| Waveform | Sine Wave | Battery Type | Sealed Lead Acid |
| Product Standards | IEC61000, IEC62040, GB7260, GB4943 | Protection | Overload, Short Circuit, Surge, Overcharge |
| Input Frequency | 50/60Hz | Safety Standard | IEC/EN 62040-1,IEC/EN 62040-2 IEC 61000 |
| Temperature | 0-40℃ | Humidity | 20-90% |
| Battery Quantity | Internal: 6/12V, External: 12/24V |
Product Description
High Frequency Online UPS
XT Series (single phase)
PRODUCT FEATURES
1. Advanced CPU digital control technology
2. Active input power factor correction (PFC)
3. Frequency adaptive system
4. Ultra wide input voltage range
5. Output power factor is 0.9
6. Ultra wide input frequency range
7. Strong scalability
8. Green and environmental protection
| PARAMETER 1-3KVA | |||||||
| Model | X1KVA | 1KS | 2KVA | 2KS | 3KVA | 3KS | |
| Rated Power | 1kVA/0.9kW | 2kVA/1.8kW | 3kVA/2.7kW | ||||
| Input | Voltage Range | 90-285Vac 1P2W+G | |||||
| Working Frequency Range | 40-70Hz (settable) | ||||||
| Input Power Factor | ≥0.99 | ||||||
| Output | Rated Voltage and Accuracy | 220Vac(1±2%) 1P2W+G | |||||
| Output Frequency | 46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery) | ||||||
| Rated Current | 4.5A | 9.1A | 13.6A | ||||
| Output Power Factor | 0.9 | ||||||
| Output Harmonic Wave | ≤4% (Full R load) | ||||||
| Crest Factor | 3: | 1 | |||||
| Output Overload | Overload pre-warning :100%±2%＜Load Output warning:102%±2%≤Load≤110%±2%: Convert to bypass mode and alarm after 30mins; Output warning:110%±2%＜Load≤130%±2%: Convert to bypass mode and alarm after 10mins; Output warning:130%±2%＜Load≤150%±2%: Convert to bypass mode and alarm after 30s; Convert to bypass mode and alarm after 200ms, Load＞150%±2% |
||||||
| Conversion time between Mains Power and Battery | 0ms | ||||||
| Efficiency | ≥90% (Normal mode) | ||||||
| Battery | Rated Voltage | 24Vdc | 36Vdc | 48Vdc | 72Vdc | 72Vdc | 96Vdc |
| Quantity | 2 | External | 4 | External | 6 | External | |
| Charging Current | 1A | 5.5A | 1A | 5.5A | 1A | 5.5A | |
| Dimension (LxWxH) mm | 280x144x230 | 400x144x230 | 425x190x328 | 400x144x230 | |||
| Weight | 7.8kg | 4.2kg | 13.3kg | 6.4kg | 23.4kg | 6.5kg | |
| Working Temperature | 0℃-40℃ | ||||||
| Working Humidity | 20%-95% (non-condensing) | ||||||
| Noise | ≤50dB | ||||||
