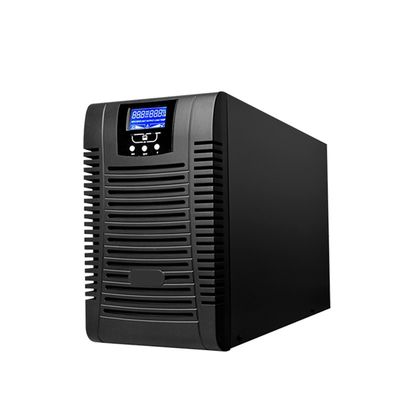

High Frequency Three Phase 10kva 10kw Emergency Uninterrupted Power Supply Pure Sine Wave Online Tower Ups
XT Series (three-three phase) PRODUCT SPECIFICATION ADVANCED POINTS 1. Large input voltage range: full load: 207Vac-475Vac; no-load:210Vac-475Vac 2. Large input frequency range: The UPS can work in mains INV mode if the input ranges from 40 to 70Hz. 3. High output accuracy: ±1% output voltage error. PRODUCT FEATURES 1. High-frequency online three-in and three-out UPS, the output can be connected to unbalanced load, and the input three-phase always keeps the load balanced. 2.
10kva high frequency UPS
,three phase pure sine wave UPS
,tower UPS with uninterrupted power supply
XT Series (three-three phase)
PRODUCT SPECIFICATION ADVANCED POINTS
1. Large input voltage range: full load: 207Vac-475Vac; no-load:210Vac-475Vac
2. Large input frequency range: The UPS can work in mains INV mode if the input ranges from 40 to 70Hz.
3. High output accuracy: ±1% output voltage error.
PRODUCT FEATURES
1. High-frequency online three-in and three-out UPS, the output can be connected to unbalanced load, and the input three-phase always keeps the load balanced.
2. Fully digital control,more stable performance.
3. Energy-saved and environmental protection, efficiency is up to 93%
4. Support N+X parallel redundancy
5. The most optimized tower structure design has the smallest volume compared to similar products on the market
6. A single set of battery supplies power to the system, reducing the number of batteries and save cost.
7. 10-20K standard machine integrated design with battery built-in, easy to install and use.
8. Visualized LCD display interface, clear and intuitive display of three-phase working information.
9. Intelligent mobile monitoring cards are supported to monitor UPS data in real time through mobile apps.
| PARAMETER XT33 10-40KVA | |||||||
| Model | XT33 10KVA | XT33 10KS | XT33 20KVA | XT33 20KS | XT33 30KS | XT33 40KS | |
| Rated Power | 10kVA/9kW | 20kVA/18kW | 30kVA/27kW | 40kVA/36kW | |||
| Input | Voltage Range | 207-475Vac 3P4W+G | |||||
| Working Frequency Range | 40-70Hz (settable) | ||||||
| Input Power Factor | ≥0.99 | ||||||
| Output | Rated Voltage and Accuracy | 380Vac(1±1%) 3P4W+G | |||||
| Output Frequency | 46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery) | ||||||
| Rated Current | 15A | 30A | 45A | 61A | |||
| Output Power Factor | 0.9 | ||||||
| Output Harmonic Wave | ≤3% (Full R load) | ||||||
| Crest Factor | 3: | 1 | |||||
| Output Overload | 105%±5%＜Load≤125%±5%: Convert to bypass output and alarm after 1min; 125%±5%＜Load≤150%±5%: Convert to bypass output and alarm after 30s; Load＞150%±5%: Convert to bypass output and alarm after 300ms. |
||||||
| Conversion time between Mains Power and Battery | 0ms | ||||||
| Efficiency | ＞92% | ＞91% | |||||
| Battery | Rated Voltage | 192Vdc | ±192Vdc | ||||
| Quantity | 16 | 32 | |||||
| Charging Current | 1A | 5.5A | 1A | 7.5A | 5.5A | ||
| Dimension (LxWxH) mm | 560x260x717 | 533x260x501 | 710x260x717 | 710x260x717 | |||
| Weight | 72kg | 26kg | 98kg | 57.5kg | 58.5kg | 62kg | |
| Working Temperature | 0℃-40℃ | ||||||
| Working Humidity | 20%-95% (non-condensing) | ||||||
| Noise | ≤60dB | ||||||
-
