33-40KL Data Centre ECO mode Rack Mount UPS system Switching Power Supply Surge Protector Online UPS 40kva
High Frequency Online UPS XT Series (single phase) PRODUCT FEATURES 1. Advanced CPU digital control technology 2. Active input power factor correction (PFC) 3. Frequency adaptive system 4. Ultra wide input voltage range 5. Output power factor is 0.9 6. Ultra wide input frequency range 7. Strong ...

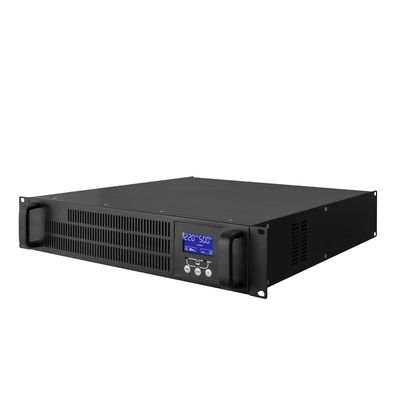

40kva rack mount UPS system
,data centre online UPS
,high frequency switching power supply
High Frequency Online UPS
XT Series (single phase)
PRODUCT FEATURES
1. Advanced CPU digital control technology
2. Active input power factor correction (PFC)
3. Frequency adaptive system
4. Ultra wide input voltage range
5. Output power factor is 0.9
6. Ultra wide input frequency range
7. Strong scalability
8. Green and environmental protection
| PARAMETER 1-3KVA | |||||||
| Model | X1KVA | 1KS | 2KVA | 2KS | 3KVA | 3KS | |
| Rated Power | 1kVA/0.9kW | 2kVA/1.8kW | 3kVA/2.7kW | ||||
| Input | Voltage Range | 90-285Vac 1P2W+G | |||||
| Working Frequency Range | 40-70Hz (settable) | ||||||
| Input Power Factor | ≥0.99 | ||||||
| Output | Rated Voltage and Accuracy | 220Vac(1±2%) 1P2W+G | |||||
| Output Frequency | 46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery) | ||||||
| Rated Current | 4.5A | 9.1A | 13.6A | ||||
| Output Power Factor | 0.9 | ||||||
| Output Harmonic Wave | ≤4% (Full R load) | ||||||
| Crest Factor | 3: | 1 | |||||
| Output Overload | Overload pre-warning :100%±2%＜Load Output warning:102%±2%≤Load≤110%±2%: Convert to bypass mode and alarm after 30mins; Output warning:110%±2%＜Load≤130%±2%: Convert to bypass mode and alarm after 10mins; Output warning:130%±2%＜Load≤150%±2%: Convert to bypass mode and alarm after 30s; Convert to bypass mode and alarm after 200ms, Load＞150%±2% |
||||||
| Conversion time between Mains Power and Battery | 0ms | ||||||
| Efficiency | ≥90% (Normal mode) | ||||||
| Battery | Rated Voltage | 24Vdc | 36Vdc | 48Vdc | 72Vdc | 72Vdc | 96Vdc |
| Quantity | 2 | External | 4 | External | 6 | External | |
| Charging Current | 1A | 5.5A | 1A | 5.5A | 1A | 5.5A | |
| Dimension (LxWxH) mm | 280x144x230 | 400x144x230 | 425x190x328 | 400x144x230 | |||
| Weight | 7.8kg | 4.2kg | 13.3kg | 6.4kg | 23.4kg | 6.5kg | |
| Working Temperature | 0℃-40℃ | ||||||
| Working Humidity | 20%-95% (non-condensing) | ||||||
| Noise | ≤50dB | ||||||
-
