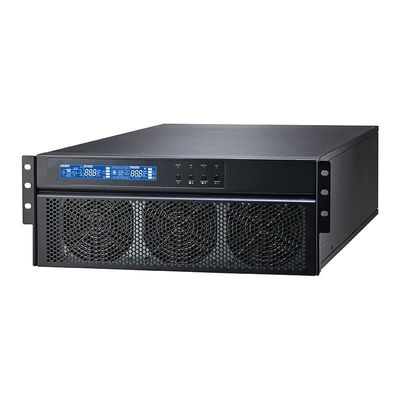

Uninterrupted Power Supply 2U 3U Rack Mountable Online UPS 1Kva 2Kva 10Kva Wifi Router UPS Pure Sine Wave
RTX Series PRODUCT FEATURES 1. 19 inches standard design of rack mount, compact structure . 2. Sin wave output provides best power supply guarantee. 3. 0 conversion time between mains mode and battery mode. 4. It has detection function of input zero line and fire line. 5. Having voltage surge ...
rack mountable online UPS 10Kva
,pure sine wave UPS for wifi router
,high frequency UPS with warranty
RTX Series
PRODUCT FEATURES
1. 19 inches standard design of rack mount, compact structure .
2. Sin wave output provides best power supply guarantee.
3. 0 conversion time between mains mode and battery mode.
4. It has detection function of input zero line and fire line.
5. Having voltage surge protection function and strong anti-interference function.
6. Equipped with correction function of input power factor
7. Supporting mobile smart monitoring card , users can real-time monitor every data of the UPS by mobile APP.
| PARAMETER RTX31 10-20K | ||||
| Model | RTX31 10KS | RTX31 15KS | RTX31 20KS | |
| Rated Power | 10kVA/9kW | 15kVA/13.5kW | 20kVA/18kW | |
| Input | Voltage Range | 207-475Vac 3P4W+G | ||
| Working Frequency Range | 40-70Hz (settable) | |||
| Input Power Factor | ≥0.95 | |||
| Output | Rated Voltage and Accuracy | 220Vac(1±1%) 1P2W+G | ||
| Output Frequency | 46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery) | |||
| Rated Current | 45A | 68A | 91A | |
| Output Power Factor | 0.9 | |||
| Output Harmonic Wave | ≤3% | |||
| Crest Factor | 3: | 1 | ||
| Output Overload | 105%±5%＜Load≤125%±5%: Convert to bypass output and alarm after 1 min; 125%±5%＜Load≤150%±5%: Convert to bypass output and alarm after 30s; Load＞150%±5%: Convert to bypass output and alarm after 300ms. |
|||
| Conversion time between Mains Power and Battery | 0ms | |||
| Efficiency | ＞92% | |||
| Battery | Rated Voltage | 192Vdc | ||
| Quantity | 16 | |||
| Charging Current | 5.5A | |||
| Dimension (LxWxH) mm | 665x482.6x132.5 | 655x482.6x265 | ||
| Weight | 23kg | 34kg | 35kg | |
| Working Temperature | 0℃-40℃ | |||
| Working Humidity | 20%-95% | |||
| Noise | ≤60dB | |||
-
20KVA-200KVA High Frequency UPS Double Conversion Visench 3C3 Series UPS
Visench 3C3 series UPS 20KVA-200KVA Functions & features: On-line UPS DSP system IGBT technology CPU control 20KHz SPWM modulation Larger LCD display Double conversion
-
Visench Fortress 3P3P 120KVA 120KW Three Phase UPS Power Supply Tpwer Online UPS For Networking Data Center
Visench Fortress 3P3P 120KVA 120KW Three Phase UPS Power Supply Tpwer Online UPS For Networking Data Center Specification Item Visench Fortress 3P3P 120KVA Visench Fortress 3P3P Series Capacity 100KVA 120KVA 180KVA 200KVA 240KVA 300KVA Place of Origin Guangdong, China Brand Name Visench Battery Type Lead Acid Battery Phase Three Phase Protection Unbalanced Loads Type On-line Application Computer/Networking/Data Center Rated input voltage (Vac) 380 V Rated output voltage (V)
-
33-15KL Pure Sine Wave 3 Phase Online ups 15kva Overcurrent Protect Rack Mount UPS System Backup Power For Medical
High Frequency Online UPS XT Series (single phase) PRODUCT FEATURES 1. Advanced CPU digital control technology 2. Active input power factor correction (PFC) 3. Frequency adaptive system 4. Ultra wide input voltage range 5. Output power factor is 0.9 6. Ultra wide input frequency range 7. Strong scalability 8. Green and environmental protection PARAMETER 1-3KVA Model X1KVA 1KS 2KVA 2KS 3KVA 3KS Rated Power 1kVA/0.9kW 2kVA/1.8kW 3kVA/2.7kW Input Voltage Range 90-285Vac 1P2W+G
