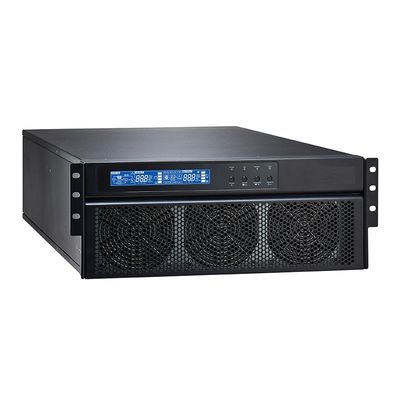

Single phase high frequency online rack ups 220Vac 2U 3U 19Inch 20Kva 30Kva 40Kva Rack Mount UPS For Server Room
RTX Series PRODUCT FEATURES 1. 19 inches standard design of rack mount, compact structure . 2. Sin wave output provides best power supply guarantee. 3. 0 conversion time between mains mode and battery mode. 4. It has detection function of input zero line and fire line. 5. Having voltage surge ...
single phase rack mount UPS
,high frequency UPS for server room
,19Inch rack UPS 20Kva 30Kva
RTX Series
PRODUCT FEATURES
1. 19 inches standard design of rack mount, compact structure .
2. Sin wave output provides best power supply guarantee.
3. 0 conversion time between mains mode and battery mode.
4. It has detection function of input zero line and fire line.
5. Having voltage surge protection function and strong anti-interference function.
6. Equipped with correction function of input power factor
7. Supporting mobile smart monitoring card , users can real-time monitor every data of the UPS by mobile APP.
| PARAMETER RTX31 10-20K | ||||
| Model | RTX31 10KS | RTX31 15KS | RTX31 20KS | |
| Rated Power | 10kVA/9kW | 15kVA/13.5kW | 20kVA/18kW | |
| Input | Voltage Range | 207-475Vac 3P4W+G | ||
| Working Frequency Range | 40-70Hz (settable) | |||
| Input Power Factor | ≥0.95 | |||
| Output | Rated Voltage and Accuracy | 220Vac(1±1%) 1P2W+G | ||
| Output Frequency | 46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery) | |||
| Rated Current | 45A | 68A | 91A | |
| Output Power Factor | 0.9 | |||
| Output Harmonic Wave | ≤3% | |||
| Crest Factor | 3: | 1 | ||
| Output Overload | 105%±5%＜Load≤125%±5%: Convert to bypass output and alarm after 1 min; 125%±5%＜Load≤150%±5%: Convert to bypass output and alarm after 30s; Load＞150%±5%: Convert to bypass output and alarm after 300ms. |
|||
| Conversion time between Mains Power and Battery | 0ms | |||
| Efficiency | ＞92% | |||
| Battery | Rated Voltage | 192Vdc | ||
| Quantity | 16 | |||
| Charging Current | 5.5A | |||
| Dimension (LxWxH) mm | 665x482.6x132.5 | 655x482.6x265 | ||
| Weight | 23kg | 34kg | 35kg | |
| Working Temperature | 0℃-40℃ | |||
| Working Humidity | 20%-95% | |||
| Noise | ≤60dB | |||
-
