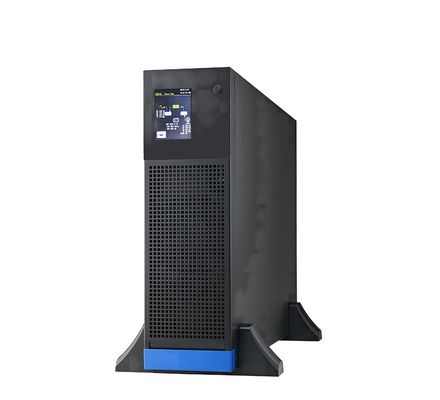

UPS 19 Inch Rack Mount UPS 30KVA 40KVA 60KVA for bank,public security and Telecom uninterrupted power supply
RTX Series PRODUCT FEATURES 1. 19 inches standard design of rack mount, compact structure . 2. Sin wave output provides best power supply guarantee. 3. 0 conversion time between mains mode and battery mode. 4. It has detection function of input zero line and fire line. 5. Having voltage surge ...
19 inch rack mount UPS
,30KVA UPS for telecom
,uninterrupted power supply UPS
RTX Series
PRODUCT FEATURES
1. 19 inches standard design of rack mount, compact structure .
2. Sin wave output provides best power supply guarantee.
3. 0 conversion time between mains mode and battery mode.
4. It has detection function of input zero line and fire line.
5. Having voltage surge protection function and strong anti-interference function.
6. Equipped with correction function of input power factor
7. Supporting mobile smart monitoring card , users can real-time monitor every data of the UPS by mobile APP.
| PARAMETER RTX31 10-20K | ||||
| Model | RTX31 10KS | RTX31 15KS | RTX31 20KS | |
| Rated Power | 10kVA/9kW | 15kVA/13.5kW | 20kVA/18kW | |
| Input | Voltage Range | 207-475Vac 3P4W+G | ||
| Working Frequency Range | 40-70Hz (settable) | |||
| Input Power Factor | ≥0.95 | |||
| Output | Rated Voltage and Accuracy | 220Vac(1±1%) 1P2W+G | ||
| Output Frequency | 46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery) | |||
| Rated Current | 45A | 68A | 91A | |
| Output Power Factor | 0.9 | |||
| Output Harmonic Wave | ≤3% | |||
| Crest Factor | 3: | 1 | ||
| Output Overload | 105%±5%＜Load≤125%±5%: Convert to bypass output and alarm after 1 min; 125%±5%＜Load≤150%±5%: Convert to bypass output and alarm after 30s; Load＞150%±5%: Convert to bypass output and alarm after 300ms. |
|||
| Conversion time between Mains Power and Battery | 0ms | |||
| Efficiency | ＞92% | |||
| Battery | Rated Voltage | 192Vdc | ||
| Quantity | 16 | |||
| Charging Current | 5.5A | |||
| Dimension (LxWxH) mm | 665x482.6x132.5 | 655x482.6x265 | ||
| Weight | 23kg | 34kg | 35kg | |
| Working Temperature | 0℃-40℃ | |||
| Working Humidity | 20%-95% | |||
| Noise | ≤60dB | |||
-
