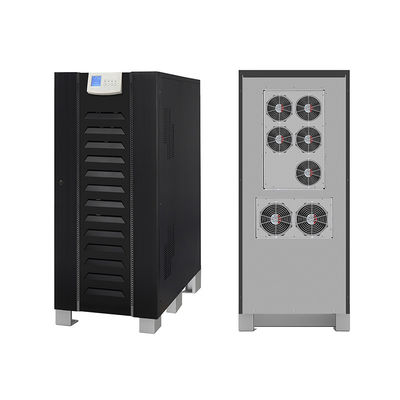

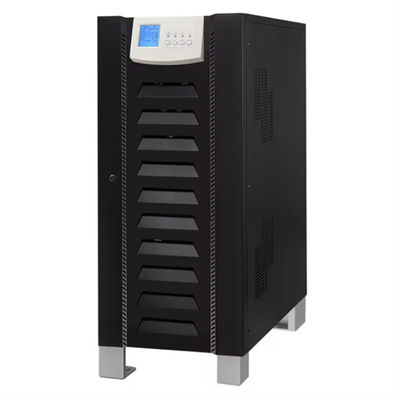

Visench Giant 31-40K 40KVA 40KW 40000W 40000VA Pure Sine Wave 220V/230V/240VAC Online UPS

Place of Origin	Guangdong, China
Brand Name	Visench
Model Number	Visench Giant
Price	$1,868.00 - $3,261.00/pieces

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Warranty	1year	Phase	Three Phase
Protection	Short Circuit	Type	On-line
Application	Security / Monitoring / Alarm	Electric Energy	10000 Wh
Product Name	Giant 3p1p	Rated Capacity	10KVA-40KVA
Power Factor	0.8	Input Voltage	3x380VAC/400VAC (3Ph + N Or 3Ph + N + G)
Frequency	50Hz/60Hz +5 Hz (+10%)	Output Voltage	220VAC1230VAC1240VAC (Adjustable)
Waveform	Pure Sinewave	PHASE	3Phase
Size(mm)	656 X405 X817	Weight(Kgs)	118/120/145/193/278
Highlight	40000W Online UPS , 40000VA Online UPS , 40KVA Online UPS

Leave a Message

Product Description

Product name	Giant 3p1p
Rated Capacity	10KVA-40KVA
Power Factor	0.8
Input Voltage	3x380VAC/400VAC (3Ph + N or 3Ph + N + G)
Frequency	50Hz/60Hz +5 Hz (+10%)
Output Voltage	220VAC1230VAC1240VAC (Adjustable)
Waveform	Pure Sinewave
Battery Type	6 pulse
PHASE	3Phase
Frequency Stability	± 1%
Short-circuit Capability	60~100ms
Connection Type	Hardwire 3-wire(1Ph+N+G)
Crest Factor	3:01
Rated output voltage	384 VDC
Operating Temperature	0-35c
Size(mm)	656 x405 x817
Weight(Kgs)	118/120/145/193/278

MODEL

Giant31-10k

Giant 31-15k

Giant31-20k

Giant31-30k

Giant 31-40k

CAPACITY

10KVA/8KW

15KVA/12KW

20KVA/16KW

30KVA/24KW

40KVA/32KW

Input

Nominal Voltage

3*380VAC/400VAC(3PH + N or 3ph + N+ G

Acceptable Voltage Range

165VAC～280VAC (Ph-N)/285VAC~485VAC (Ph-Ph)

Frequency

50Hz/60Hz±5 Hz(±10%)

INVERTER

Nominal Voltage

220VAC/230VAC/240VAC(Adjustable)

Waveform

Pure Sinewave

Output Voltage Stability

Steady state

±1%

Transient state

±5%

Frequency

50 Hz/60 Hz

Frequency Stability

±1%

Frequency Synchronisation Range

±5Hz(Equal to bypass working range)

Frequency Synchronisation Speed

1~2 Hz/s

Power Factor

0.8

Crest Factor

3:1

Total Harmonic Distortion (THDv)

<2%(Linear Load);<5%(Non-linear Load)

Dynamic in-rush Voltage Range

0%>100%->0%(R Load)100%->20%(R Load)±3%

Dynamic Recovery Time (III Grade)

0%~100%RCD load;<60 ms recover to 90%of nominal voltage

Transfer Time

0 ms

Overload Capability

0%～110%continuous running;110%～150%for 10 min~1 min;>160%for 200ms

Short-circuit Capability

60~100ms

Transient Response Time

<5ms

BYPASS

Connection Type

Hardwire 3-wire (1Ph+N+G)

Input Voltage Range

220VAC±25%

Overload Capability/Short-circuit Capability

1.5 In~1.8 In 1h~30s

1.8 In~>2.0 In 30s~200ms

SYSTEM

Efficiency (@linear load )

≥88%

≥90%

ECO Mode (Non-parallel models)

Yes

EPO Function

Yes

Standard

IEC 61000-4-5 Protection surge,IEC 62040-2 EMC/EMI,IEC62040-1 Safety

BATTERY &CHARGER

Rectifier

Type

6 pulse

Rated output voltage

384 VDC

Charger voltage

190VDC~435VDC(Adjustable)

Charging current(max)

Default 10A,Maximum=Capacity/Battery Voltage

Default 10A,Maximum 40A,5A@Full load

Battery

Type

Support VRLA Battery

Numbers

32 pcs (29～32 adjustable)

Cold Start

Yes

PHYSICAL

IP Protection

IP20 (Default),IP21/IP31 (Option)

Dimensions,DxWxH(mm)

656x405x817

821x432x1159

Net Weight (Kgs)

118

120

145

193

278

ENVIRONMENT

Operating Temperature

0~35°C continuous running,40℃ 8-hour running at nomina linput voltage,recharging batteries and no overload 45°C derating to
85%with linear load

Operating Humidity

0~90%(non-condensing)

Noise Level

Less than 70dB @1 Meter

MANAGEMENT

Modbus RS-232/RS485

Supports WindowsB Family,Linux and MAC

Dry Contacts

6 outputs and 2 inputs

Optional SNMP

Power management from SNMP manager and web browser
