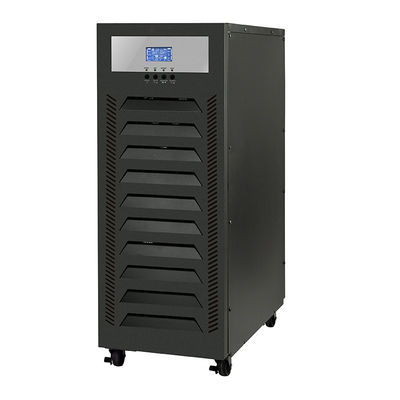

6KW 7.5KW 10KW Visench Giant Elite 3Phase Industrial Tower UPS For Computer/Networking
Product Summary
Product nameGiant Elite 3p1pRated Capacity6kva-10kvaVoltage Regulation± 1%Input Voltage3x360VAC1380VAC1400VAC(3Ph+N+G)Frequency40 Hz~ 55 Hz @ 50Hz system ; 56 Hz~ 64 Hz @ 60Hz systemOutput Voltage208VAC1220VAC/230VAC (Se lectable)WaveformPure SinewaveBattery Type12V/ 9AhPHASE3-phase in / 1-phase ...
Key Attributes
Brand Name:
Visench
Model Number:
Visench Giant Elite
Place of Origin:
Guangdong, China
Price:
$867.00 - $1,008.00/pieces
Product Custom Attributes
Highlight
10KW Industrial Tower UPS
,6KW Industrial Tower UPS
,7.5KW Industrial Tower UPS
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Computer/networking
Electric Energy:
6000 Wh
Product Name:
Giant Elite 3p1p
Rated Capacity:
6kva-10kva
Voltage Regulation:
± 1%
Input Voltage:
3x360VAC1380VAC1400VAC(3Ph+N+G)
Output Voltage:
208VAC1220VAC/230VAC (Se Lectable)
Waveform:
Pure Sinewave
Battery Type:
12V/ 9Ah
PHASE:
3-phase In / 1-phase Out
Size(mm):
592x300x826
Weight(Kgs):
129/137/152/160/168
Product Description
Product name | Giant Elite 3p1p |
Rated Capacity | 6kva-10kva |
Voltage Regulation | ± 1% |
Input Voltage | 3x360VAC1380VAC1400VAC(3Ph+N+G) |
Frequency | 40 Hz~ 55 Hz @ 50Hz system ; 56 Hz~ 64 Hz @ 60Hz system |
Output Voltage | 208VAC1220VAC/230VAC (Se lectable) |
Waveform | Pure Sinewave |
Battery Type | 12V/ 9Ah |
PHASE | 3-phase in / 1-phase out |
Harmonic Distortion | ≤ 3 % THD (Linear Load); ≤ 5 % THD (Non-inear Load) |
Current Crest Ratio | 3:01 |
Battery Mode | 92.00% |
Frequency Range | 50 Hz ± 0.1 Hz or 60Hz± 0.1 HZ |
Inverter to Bypass | Zero |
Operating Temperature | 0 ~ 50°C |
Size(mm) | 592x300x826 |
Weight(Kgs) | 129/137/152/160/168 |
MODEL | Giant Elite 31-6K(L) | Giant Elite 31-7.5K(L) | Giant Elite 31-10K(L) | |||||||||||
PHASE | 3-phase in /1-phase out | |||||||||||||
CAPACITY* | 6KVA/4.8KW | 7.5KVA/6KW | 10KVA/8KW | |||||||||||
INPUT | ||||||||||||||
Nominal Voltage | 3x360VAC/380VAC/400VAC(3Ph+N+G) | |||||||||||||
Voltage Range | 286VAC～493VAC @16 pcs of batteries;320VAC~493VAC @18 pcs of batteries | |||||||||||||
Freguency | 40 Hz～55 Hz@50Hz system;58 Hz~84 Hz @6OHz system | |||||||||||||
OUTPUT | ||||||||||||||
Output Voltage | 208VAC/220VAC/230VAC(Selectable) | |||||||||||||
Voltage Regulation | ±1% | |||||||||||||
Frequency Range (Synchronized Range) | 45Hz~55 Hz or 56 Hz~64 Hz | |||||||||||||
Frequency Range (Batt.Mode) | 50Hz±0.1 Hz or 60Hz±0.1 Hz | |||||||||||||
Curent Crest Ratio | 3:1 | |||||||||||||
Hamonic Distortion | ≤3%THD(Linear Load);≤5%THD (Non-linear Load) | |||||||||||||
Transfer Time | AC to DC | Zero | ||||||||||||
Inverter to Bypass | Zero | |||||||||||||
Waveform(Batt.Mode) | Pure Sinewave | |||||||||||||
EFFICIENCY | ||||||||||||||
AC Mode | 83% | |||||||||||||
Battery Mode | 92% | |||||||||||||
BATTERY | ||||||||||||||
Standard Model | Battery Type | 12V /9Ah | ||||||||||||
Battery Numbers* | 16 pcs | |||||||||||||
Recharging Time | 6 hours recover to 90% capacity | |||||||||||||
Charging Current (max.) | 2A | |||||||||||||
Charging Voltage | 218.4V±1% | |||||||||||||
Long-run Model | Battery Type | Depending on the applications | ||||||||||||
Numbers | 16 pcs | 18 pcs | 16 pcs | 18 pcs | 16 pcs | 18 pcs | ||||||||
Changing Current (max.) | Default:8A;2A/4A/BA(Adjustable) | |||||||||||||
Charging Voltage | 218.4V±1% | 245.7V±1% | 218.4V±1% | 245.7V±1% | 218.4V±1% | 245.7V±1% | ||||||||
INDICATORS | ||||||||||||||
LCD | UPS status,load level,battery level,inputloutput voltage and frequency,fault code/waming code | |||||||||||||
ALARM | ||||||||||||||
Battery Mode | Sounding every 4 seconds | |||||||||||||
Low Battery | Sounding every second | |||||||||||||
Overload | Sounding twice every second | |||||||||||||
Fault | Continously sounding | |||||||||||||
PHYSICAL | ||||||||||||||
Standard Model | Dimensions,DxWxH (mm) | 502x300x826 | 592x380x826 | 592x300x826 | 592x360x828 | 592x300x826 | 592x360x826 | |||||||
Net Weight (Kgs) | 129 | 137 | 152 | 160 | 160 | 168 | ||||||||
Long-run Model | Dimensions,DxWxH (mm) | 592x300x828 | ||||||||||||
Net Weight (Kgs) | 84 | 107 | 115 | |||||||||||
ENVIRONMENT | ||||||||||||||
Operating Temperature | 0~50°℃(battery life cycle will be shorten when temperature is above 25°℃) | |||||||||||||
Operating Humidity | <95% and non-condensing | |||||||||||||
Noise Level | Less than 80dBA @1 Meter | |||||||||||||
MANAGEMENT | ||||||||||||||
Smart RS-232/USB | Supports Windows 2000/2003/XPNista/2008/7/8/10,Linux,Unix,and MAC | |||||||||||||
Optional SNMP | Power management from SNMP manager and web browser | |||||||||||||
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
1. May I take some samples to test before I placing the order?
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
-
