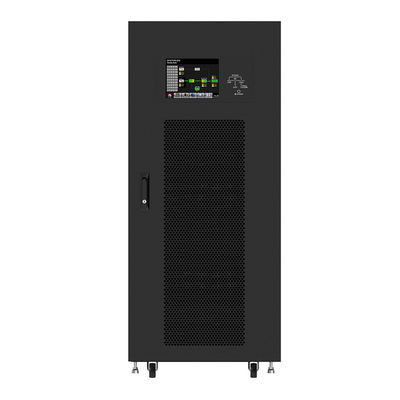

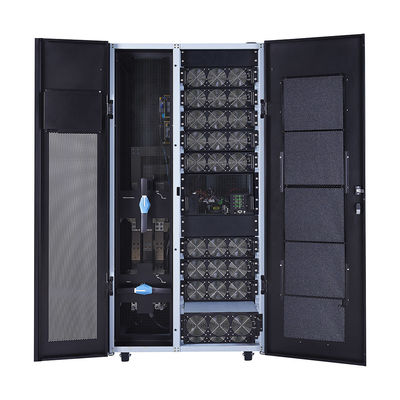

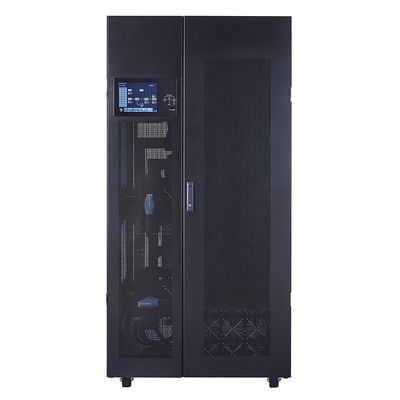

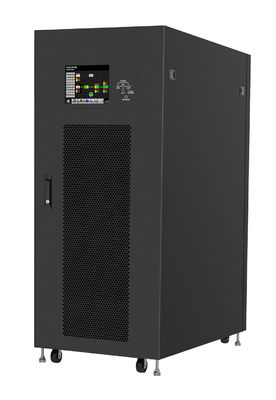

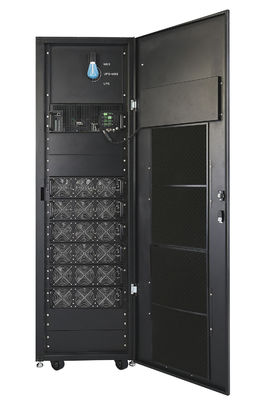

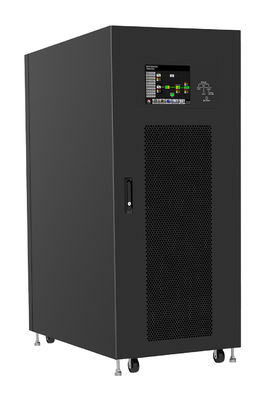

300KVA 300KW 300000W 300000VA Visench Power Module A 42U-300 Online Ups for Computer/Networking
Product Summary
Product nameAPlus（60kw power module）Rated Capacity120KVA-600KVAPower Factor0.99Input Voltage3 x 380/4001415 VAC (3Ph+N)Frequency40Hz ~70HzOutput Voltage3 x 380/4001415 VAC (3Ph+N)Altitude*0.99 @100%Load,>0.98 @50%LoadHarmonic Distortion (THDi)150%Harmonic Distortion≤2%THD(Linear Load);≤4%THD(Non...
Key Attributes
Brand Name:
Visench
Model Number:
Visench APlus 60kw Power Module
Place of Origin:
Guangdong, China
Price:
$1,620.00 - $7,869.00/pieces
Product Custom Attributes
Highlight
300000VA Online Ups
,300000W Online Ups
,300KVA Online Ups
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Computer/networking
Electric Energy:
60000 Wh
Product Name:
APlus(60kw Power Module)
Rated Capacity:
60KVA-600KVA
Power Factor:
0.99
Input Voltage:
3 X 380/4001415 VAC (3Ph+N)
Frequency:
40Hz To 70Hz
Output Voltage:
3 X 380/4001415 VAC (3Ph+N)
Battery Type:
External Battery
PHASE:
3-phase In / 3-phase Out
Size(mm):
100x600X1475
Weight(Kgs):
308/352/516/654/932/1020
Product Description
Product name | APlus（60kw power module） |
Rated Capacity | 120KVA-600KVA |
Power Factor | 0.99 |
Input Voltage | 3 x 380/4001415 VAC (3Ph+N) |
Frequency | 40Hz ~70Hz |
Output Voltage | 3 x 380/4001415 VAC (3Ph+N) |
Altitude* | <1000m for Nominal power |
Battery Type | External Battery |
PHASE | 3-phase in / 3-phase out |
Harmonic Distortion | < 3% @ 100% load |
Eficiency | 96% |
Safety | IEC/EN 62040-1 |
Frequency Range | 46Hz~ 54Hz or 56Hz~ 64Hz |
EMC | IEC/EN 62040-2 Category c3 |
Operating Temperature | 0~40°C |
Size(mm) | 100x600X1475 |
Weight(Kgs) | 308/352/516/654/932/1020 |
MODEL | A+30U-120 | A+30U-180 | A+42U-300 | A+42U-420 | A+42U-480 | A+42U-600 | ||||||
PHASE | 3-phase in /3-phase out | |||||||||||
CABINET CAPACITY* | 120 KW | 180 KW | 300 KW | 420KW | 480KW | 600KW | ||||||
BATTERY TYPE | Extemal Battery | |||||||||||
ONE POWER MODULE CAPACTY | 60KVA/60KW | |||||||||||
MAX.POWER MODULE NO | 2 | 3 | 5 | 7 | 8 | 10 | ||||||
PHYSICAL | ||||||||||||
Cabinet Dimension (DxWxH)mm | 1100x600x1475 | 1100x600x1475 | 1100x600x2010 | 1100x600x2010 | 1065x1000x2000 | 1065x1000x2000 | ||||||
Net Weight (Kg) | 308 | 352 | 516 | 654 | 932 | 1020 | ||||||
INPUT | ||
Nominal Voltage | 3x380/400/415 VAC (3Ph+N) | |
Voltage Range | 30%～+20% | |
Nominal Frequency | 50/60Hz(Auto Sensing) | |
Frequency Range | 40Hz~70Hz | |
Power Facto | >0.99 @100%Load,>0.98 @50%Load | |
Harmonic Distortion (THDi) | <3%@100%load | |
OUTPUT | ||
Nominal Voltage | 3x380/400/415 VAC (3Ph+N) | |
Voltage Regulation(Steady state) | ≤±1%Typical (balanced load);≤±2%Typical (unbalanced load) | |
Nominal Frequency | 50/60Hz | |
Frequency Range(Synchronized) | 46Hz~54Hz or 56Hz～64Hz | |
Overdoad Capability | 1 hour for ≤110%,10 mins for 111%～125%,1 min for 126%~150%and 200ms for>150% | |
Harmonic Distortion | ≤2%THD(Linear Load);≤4%THD(Non-linear Load) | |
Eficiency | 96% | |
BATTERY/CHARGER | ||
Nominal Voltage | +1-192V～+1-240V (Selectable) | |
Maximum Voltage | +/-240V (12Vx40 Pcs) | |
Minimum Voltage | +/-192V(12Vx32 Pcs) | |
Floating Charge Voltage | 2.28V/Cell (2.25~2.33 Selectable) | |
Boost Charging Voltage | 2.35V/Cell | |
Temperature Compensation | Yes | |
Maximum Charging Current (Per Power Module) | 18A(Adjustable) | |
ENVIRONMENT | ||
Operating Temperature | 0~40℃ | |
Relative Humidity | D~958%pon-condensing | |
Altitude* | <1000m for Nominal power | |
IP Protection | IP 20 | |
MANAGEMENT | ||
Smart RS-232/USB | Supports Windows Family,Linux and MAC | |
Optional SNMP | Power management from SNMP manager and web browser | |
STANDARDS | ||
Safety | IEC/EN 62040-1 | |
EMC | IEC/EN 62040-2 Category C3 | |
