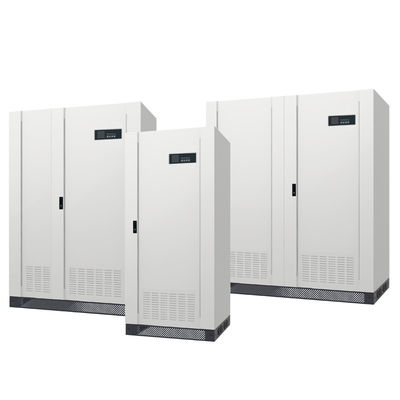

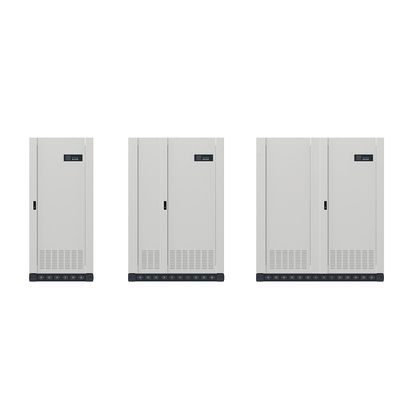

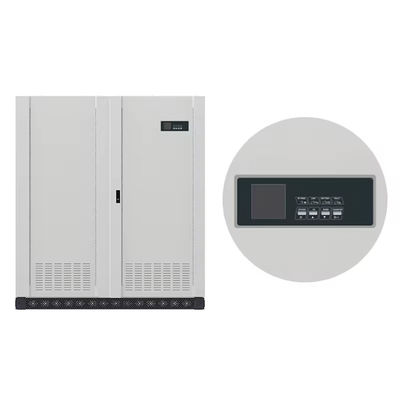

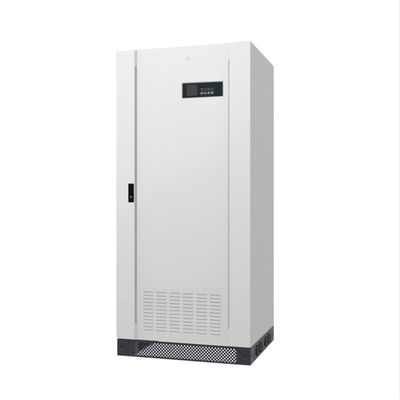

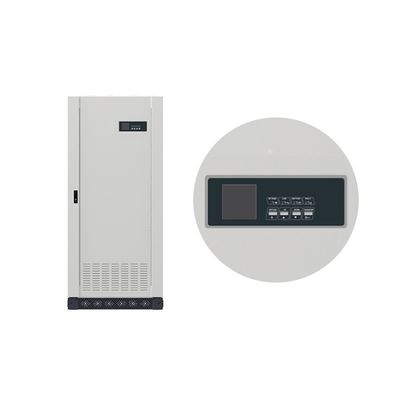

10KVA 20KVA 30KVA 40KVA 60KVA 80KVA 100KVA 120KVA 160KVA Giant iND ll Industrial Supply Online UPS
Product Summary
Product nameGiant iND IIRated Capacity10kva-160kvaRectifier Type6 pulse / 12 pulsePower Factor0.9, customized up to 1.0Input Voltage380VACI400VACI415VACFrequency50Hz/60Hz + 10%Output Voltage380VACI400VACI415VACTVSS40KAFrequency50Hz/60Hz± 1%Altitude1000mSafetyIEC62040-1-2017Battery Voltage384 VDC ...
Key Attributes
Brand Name:
Visench
Model Number:
Visench Giant iND II
Place of Origin:
Guangdong, China
Price:
$1,693.00 - $13,542.00/pieces
Product Custom Attributes
Highlight
10KVA industrial online UPS
,100KVA giant online UPS
,160KVA industrial supply UPS
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Security / Monitoring / Alarm
Electric Energy:
10000 Wh
Product Name:
Giant IND II
Rated Capacity:
10kva-160kva
Rectifier Type:
6 Pulse / 12 Pulse
Power Factor:
0.9, Customized Up To 1.0
Input Voltage:
380VACI400VACI415VAC
Output Voltage:
380VACI400VACI415VAC
Frequency:
50Hz/60Hz + 10%
TVSS:
40KA
Size(mm):
800 X 800 X 1800
Weight(Kgs):
349/385/427/508/563
Product Description
Product name | Giant iND II |
Rated Capacity | 10kva-160kva |
Rectifier Type | 6 pulse / 12 pulse |
Power Factor | 0.9, customized up to 1.0 |
Input Voltage | 380VACI400VACI415VAC |
Frequency | 50Hz/60Hz + 10% |
Output Voltage | 380VACI400VACI415VAC |
TVSS | 40KA |
Frequency | 50Hz/60Hz± 1% |
Altitude | 1000m |
Safety | IEC62040-1-2017 |
Battery Voltage | 384 VDC (Adjustable) |
Cold Start | Yes |
Dry Contacts | 5 outputs and 4 inputs |
IP Protection | IP31 (default), IP42 (optional) |
Operating Temperature | 0~ 40°C |
Size(mm) | 800 x 800 x 1800 |
Weight(Kgs) | 349/385/427/508/563 |
MODEL | Giant iND II 31-10K | Giant iND II 51-20K | Giant iND II 31-30K | Giant iND II 31-40K | Giant iND II 31-60K | Giant iND II 31-80K | ||||||
CAPACITY | 10KVA/ 8KW | 20KVA/ 16KW | 30KVA/ 24KW | 40KVA/ 32KW | 60KVA/ 48KW | 80KVA/ 64KW | ||||||
INPUT | ||||||||||||
Rectifier Type | 6 pulse | |||||||||||
Main Input and Bypass Input | Supports dual inputs | |||||||||||
Nominal Voltage | 380VAC/400VAC/415VAC | |||||||||||
Acceptable Voltage Range | 304VAC～456VAC | |||||||||||
Frequency | 50Hz/60Hz±10% | |||||||||||
TVSS | 40kA | |||||||||||
BYPASS | ||||||||||||
Nominal Voltage | 220VAC | |||||||||||
Input Voltage Range | 165VAC~275VAC | |||||||||||
BATTERY | ||||||||||||
Battery Voltage | 384VDC(Adjustable) | |||||||||||
Cold Start | Yes | |||||||||||
OUTPUT | ||||||||||||
Power Factor | 0.8 | |||||||||||
Nominal Output Voltage | 220VAC/230VAC/240VAC | |||||||||||
Output Voltage Regulation | ±1% | |||||||||||
Frequency | 50Hz/60Hz±1% | |||||||||||
Overload Capability | 110%continuous running;125%for 10 min;>150%for 1 min | |||||||||||
PHYSICAL | ||||||||||||
IP Protection | P31 (default),IP42 (optional) | |||||||||||
Dimensions,DxWxH(mm) | 800x800x1800 | |||||||||||
Net Weight (Kgs) | 285 | 319 | 337 | 387 | 468 | 523 | ||||||
ENVIRONMENT | ||||||||||||
Operating Temperature | 0~40℃ | |||||||||||
Storage Temperature | -25°℃~55℃ | |||||||||||
Humidity | 0~95%(non-condensing) | |||||||||||
Altitude | 1000m | |||||||||||
MANAGEMENT | ||||||||||||
Modbus RS-232/RS485 | Supports Windows@family,Linux and MAC | |||||||||||
Dry Contacts | 5 outputs and 4 inputs | |||||||||||
Optional SNMP | Power management from SNMP manager and web browser | |||||||||||
STANDARD | ||||||||||||
Safety | IEC62040-1-2017 | |||||||||||
EMC Immunity | IEC61000-4-5 | |||||||||||
FMC Emissions | IEC62040-2-2018 | |||||||||||
Approvals | CE/CB/Conformance testing/EMC/ROHS2/Reach/YDT1095-2018 | |||||||||||
