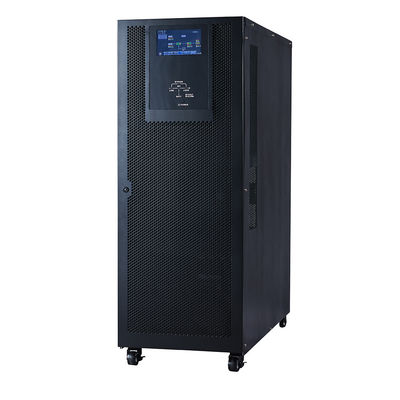

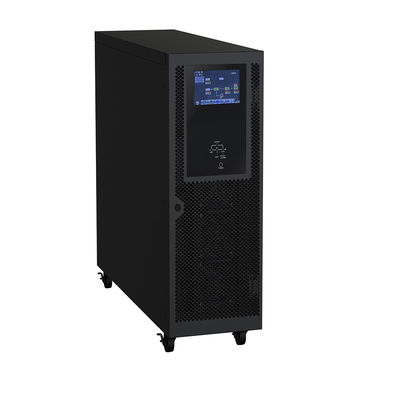

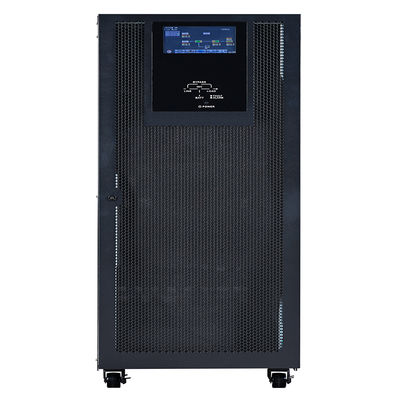

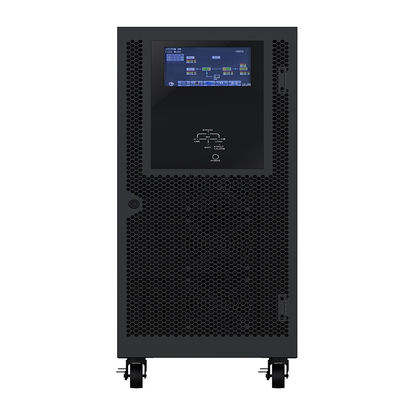

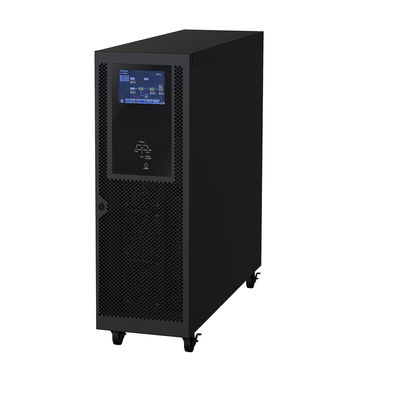

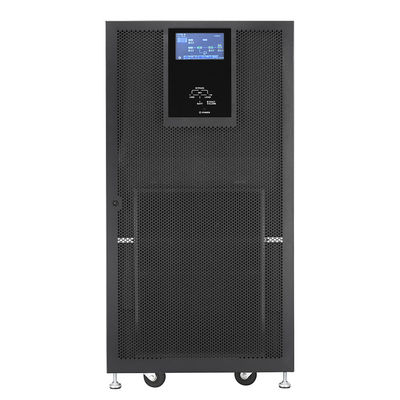

3 Phase IP20 120KVA 120KW 120000W 120000VA Visench Fortress Online Ups For Data Center
Product Summary
Product nameFortress 3p3pRated Capacity60KVA-300KVAPower Factor0.99Input Voltage3 x 38014001415 VAC (3Ph+N)Frequency40Hz ~70HzOutput Voltage3 x 38014001415 VAC (3Ph+N)IP ClassIP20Battery TypeExternal BatteryPHASE3-phase in / 3-phase outHarmonic Distortion≤ 2% THD (Linear Load);≤ 4% THD (Non-linear ...
Key Attributes
Brand Name:
Visench
Model Number:
Visench Fortress
Place of Origin:
Guangdong, China
Price:
$2,331.00 - $11,176.00/pieces
Product Custom Attributes
Highlight
3 phase online UPS for data center
,120KVA online UPS IP20
,Visench Fortress online UPS
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Networking
Electric Energy:
60000 Wh
Product Name:
Fortress 3p3p
Rated Capacity:
60KVA-300KVA
Power Factor:
0.99
Input Voltage:
3 X 38014001415 VAC (3Ph+N)
Output Voltage:
3 X 38014001415 VAC (3Ph+N)
IP Class:
IP20
Battery Type:
External Battery
Temperature Compensation:
Yes
Size(mm):
1000x320x800
Weight(Kgs):
94/169/249/360
Product Description
Product name | Fortress 3p3p |
Rated Capacity | 60KVA-300KVA |
Power Factor | 0.99 |
Input Voltage | 3 x 38014001415 VAC (3Ph+N) |
Frequency | 40Hz ~70Hz |
Output Voltage | 3 x 38014001415 VAC (3Ph+N) |
IP Class | IP20 |
Battery Type | External Battery |
PHASE | 3-phase in / 3-phase out |
Harmonic Distortion | ≤ 2% THD (Linear Load);≤ 4% THD (Non-linear Load) |
Temperature Compensation | Yes |
Battery Mode | 94.50% |
Frequency Range | 46Hz~ 54Hz or 56Hz~ 64HZ |
Altitude** | <1000m for Nominal power |
Operating Temperature | 0-40°C |
Size(mm) | 1000x320x800 |
Weight(Kgs) | 94/169/249/360 |
MODEL | 60K | 100K | 120K | 180K | 200K | |||||
PHASE | 3-phase in /3-phase out | |||||||||
CABNET CAPACTY | 60KVA/60KW | 100KVA/100KW | 120KVA/120KW | 180KVA/180KW | 200KVA/200KW | |||||
BATTERY TYPE | Extermal Battery | |||||||||
PARALLEL CAPABILTY | 4 | |||||||||
PHVSICAL | ||||||||||
IP Class | IP20 | |||||||||
Dimension,DxWxH(mm) | 1000 x600x1200 | 1000×480x1600 | 1000x480x1600 | 1000×600x2000 | 1000x600x2000 | |||||
Not Weight (Kgs) | 334 | 517 | 557 | 826 | 866 | |||||
INPUT | ||
Nominal Voltage | 3*380/400/415 VAC (3Ph+N) | |
Voltage Range | 110-300 VAC @50%load;187-276 VAC @100%load | |
Nominal Frequency | 50/60Hz (Auto sensing) | |
Frequency Range | 40Hz-70Hz | |
Power Factor | 20.99 100%load | |
Harmonic Distortion (THDi) | <5% at full linear load | |
OUTPUT | ||
Nominal Voltage | 3x380/400/415 VAC (3Ph+N) | |
Vollage Regulation (Steady state) | ≤±1%Typical (balanced load) | |
Nominal Frequency | 50/60Hz | |
Frequency Range (Synchranized range) | 46Hz-54Hz or 56Hz-64Hz | |
Overioad Capabity | ≤110%for 1 hour,111%～125%for 10 mins,126%~150%for 1 min and>150%for 200ms | |
Harmonic Distortion | ≤2%THD (Linear Load) | |
EFFICIENCY | ||
AC Mode | 92.3% | |
ECO Mode | 95.8% | |
Battery Mode | 91.3% | |
BYPASS | ||
Nominal Voltage | 3x380/400/415 VAC(3Ph+N) | |
Voltage Range | 30%-+20% | |
Frequency Range | 46Hz-54Hz or 56Hz-64Hz | |
Overload Capabiity | ≤110%for 1 hour,111%~125%for 10 mins,126%-150%for 1 min and>150%for 200ms | |
BATTERY/CHARGER | ||
Nominal Voltage | +/-192V~+1-240V (Selectable) | |
Maximum Voltag | +/-240V(12Vx40 Pcs) | |
Minimum Voltage | +/-192V(12Vx32 Pcs | |
Floating Charge Voltage | 2.28V/Call(2.25-2.33 Selectable) | |
Boost Charging Voltage | 2.35V/Cel | |
Temperature Compensation | Yes | |
ENVIRONMENT | ||
Operating Temperature | 0-40℃ | |
Operating Humidity | 95 and non-condonsing | |
Altitude* | <1000m for Nominal power | |
MANAGEMENT | ||
Smart RS-232/USB | Supports WindowsFamily,Linux and MAC | |
Optional SNMP | Power management from SNMP manager and web browser | |
STANARDS | ||
Safety | IEC/EN 62040-1 | |
EMC | IEC/EN 62040-2 | |
