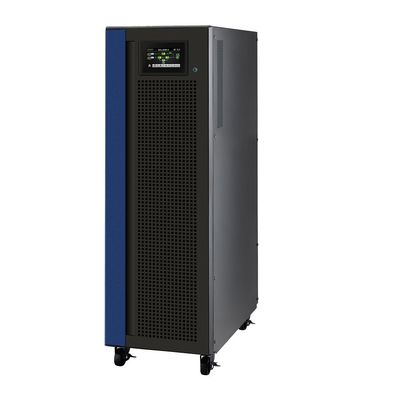

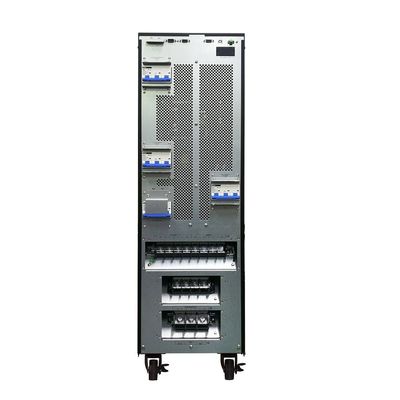

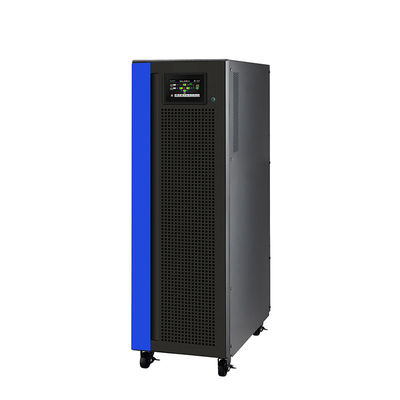

10KW 10000W 10000VA 3 Phase Pure Sinewave On-line OEM Ups For Security Monitoring Alarm
Product Summary
Product nameGalleon III 3p3pRated Capacity10KVA-40KVAPower Factor0.99Input Voltage3 x 360/380/400/415 VAC(3Ph+N)Frequency40~70 HZOutput Voltage3 x 360*1380*/400/415 VAC (3Ph+N)WaveformPure Sine waveBattery Type12V/9AhPHASE3Ph in/ 3Ph out or 3Ph in 1Ph out or 1Ph in 1Ph outHarmonic Distortion≤ 2% THD ...
Key Attributes
Brand Name:
Visench
Model Number:
Visench Galleon III
Place of Origin:
Guangdong, China
Price:
$1,170.00 - $2,229.00/pieces
Product Custom Attributes
Highlight
10KW 3 phase online UPS
,10000VA pure sinewave UPS
,security monitoring alarm UPS
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Telecommunications
Electric Energy:
10000 Wh
Product Name:
Galleon III 3p3p
Rated Capacity:
10KVA-40KVA
Power Factor:
0.99
Input Voltage:
3 X 360/380/400/415 VAC(3Ph+N)
Frequency:
40~70 HZ
Output Voltage:
3 X 360*1380*/400/415 VAC (3Ph+N)
Waveform:
Pure Sine Wave
Battery Type:
12V/9Ah
Size(mm):
630 X 250 X 826
Weight(Kgs):
37/43/56
Product Description
Product name | Galleon III 3p3p |
Rated Capacity | 10KVA-40KVA |
Power Factor | 0.99 |
Input Voltage | 3 x 360/380/400/415 VAC(3Ph+N) |
Frequency | 40~70 HZ |
Output Voltage | 3 x 360*1380*/400/415 VAC (3Ph+N) |
Waveform | Pure Sine wave |
Battery Type | 12V/9Ah |
PHASE | 3Ph in/ 3Ph out or 3Ph in 1Ph out or 1Ph in 1Ph out |
Harmonic Distortion | ≤ 2% THD (Linear Load) ;≤ 5 % THD (Non-inear Load) |
Current Crest Ratio | 3:1(max.) |
Battery Mode | 94.50% |
Frequency Range | 46~54Hz or 56~64Hz |
Inverter to Bypass | Zero |
Operating Temperature | 0-40°C |
Size(mm) | 630 x 250 x 826 |
Weight(Kgs) | 37/43/56 |
MODEL | 30k(L) | 40k(L) | 60k(L) | 100k(L) | 120k(L) | 180k(L) | 200k(L) | ||||||
PHASE | 3-phase in/3-phase out | ||||||||||||
CAPACTY | 30kVA/30KW | 40kVA/40KW | 60kVA/60KW | 100kVA/100KW | 120kVA/120KW | 180kVA/180KW | 200KVA/200KW | ||||||
PARALLEL CAPABIUTY | 4 | |
INPUT | ||
Nominal Votage | 3*360/380/400/415 VAC (3Ph+N) | |
Voltage Range | 110-300 VAC@50%load;176-276 VAC @100%bad | |
Frequency Range | 40-70Hz | |
Power Factor | ≥0.99 @100%load | |
Harmoric Distorfon(THDi) | ＜4%a full linear load | |
OUTPUT | ||
Output Voltage | 3x3607380*400415VAC3Ph+N | |
AC Vultage Regukstion (Batt.Mode) | ±1% | |
Frequency Range (Synchrorized Range) | 46-54Hz or 56-64Hz | |
Frequency Range (Batt.Mode) | 5960 Hz±1% | |
Curert Crest Ratio | 3:1(max) | |
Harmoric Distorfion | ≤2%THD (Linear Load);≤5 %THO (Non-inear Laad) | |
Transfer time AC mode bo Batery mode | Zero | |
Transfer time Inveter to Bypass | Zero | |
Wavefrom (Batt.Made) | pure Sineware | |
Overload Capability | 100-110%for 60 min,111-125%for 10 min,126%-150%far 1 min;>150%immedalely shutdown | |
BYPASS | ||
Nominal Voltage | 3x380/3801400A415VAC (3Ph+N) | |
Voltage Range | 305AC-457VAC | |
Frequency Range (Synchonized Range) | 46-54Hz or 56-64Hz | |
Overload Capability | >130%1 minute default);Cartinously warking until breaker protection (optional) | |
EFFICIENCY | ||
AC Mode | 95.5% | |
ECO Made | 98.5% | |
Bettery Mode | 94.5% | |
INDICATORS | ||
Touch colar LCD Pamel | UPS status,Load level,Battery level,Irput/Ouput Voltage,Disdrage timer,and Fault condisitions | |
ENWIRONMENT | ||
Operating Temperatue | 0_40℃ | |
Operaing Humidity | <96 %and condensing | |
Alititude* | 0~1000m at full load | |
MANAGEMENT | ||
Smart RS-232USB | Supparts Windows Family,Linux and MAC | |
optional SNMP | Power mannagemert fom SNMP manager and web browser | |
BATTERY | ||||||||||||
Standard Model | Battery Type | 12V/7Ah | 12V/9Ah | NA | ||||||||
Mumbers | (16+16)x2 | (16+16)x2 | ||||||||||
Charging Current (max) | 2A | 2A | ||||||||||
Charging Voltage | +/- 13.65 V*N ± 1% (N=16~20) | |||||||||||
Long-run Model | Battery Type | Depending on application | ||||||||||
Mumbers | 32~40pes (Adjustable) | |||||||||||
Charging Current (max) | 1A-12A, Adustaile | 1A-12A, Adjustabe | 1-18A, Adudp | 2-38A,Adjustabe | 3-54A,Adjustable | |||||||
Charging Voltage | +/_A13.85VN A420) | |||||||||||
