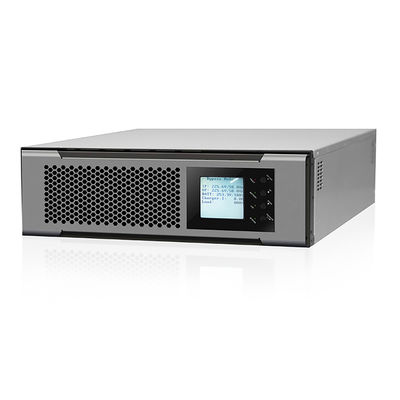

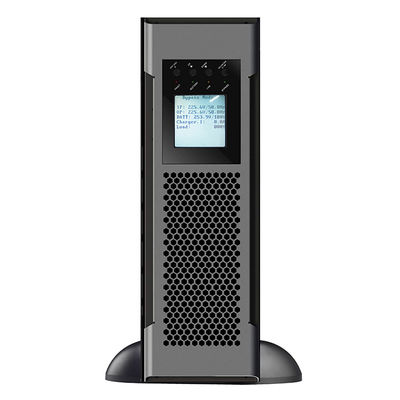

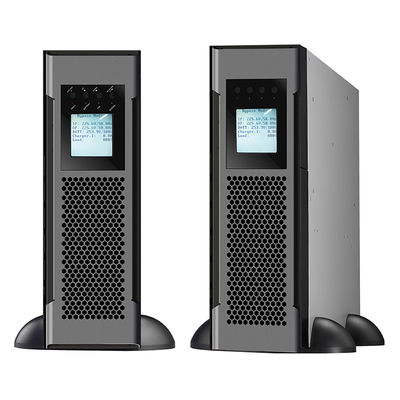

3 Phase 10KVA 6KVA 3KVA Visench Arena 3U Pure Sinewave OEM UPS for Telecommunications
Product Summary
Product nameArena 3U Online UPSPHASE3 phase in/3 phase outInput Voltage3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)Power Factor≥0.99 @100%loadOutput Voltage3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)Current Crest Ratio3:1 (max.)WaveformPure SinewaveOperating Humidity0-95%RH @0-40°℃(non-condensing...
Key Attributes
Brand Name:
Visench
Model Number:
Visench Arena 3U
Place of Origin:
Guangdong, China
Price:
$857.00 - $1,628.00/pieces
Product Custom Attributes
Highlight
3 phase pure sinewave UPS
,10KVA telecommunications UPS
,3U OEM online UPS
Warranty:
1year
Phase:
Single Phase
Protection:
Short Circuit
Type:
On-line
Application:
Telecommunications
Electric Energy:
3000 Wh
Product Name:
Arena 3U Online UPS
PHASE:
3 Phase In/3 Phase Out
Input Voltage:
3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)
Power Factor:
≥0.99 @100%load
Output Voltage:
3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)
Current Crest Ratio:
3:1 (max.)
Waveform:
Pure Sinewave
Operating Humidity:
0-95%RH @0-40°℃(non-condensing)
Dimension,DxWxH(mm):
678x418x129 [3U]
Net Weight (kgs):
20.5
Product Description
Product name | Arena 3U Online UPS |
PHASE | 3 phase in/3 phase out |
Input Voltage | 3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE) |
Power Factor | ≥0.99 @100%load |
Output Voltage | 3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE) |
Current Crest Ratio | 3:1 (max.) |
Waveform | Pure Sinewave |
Operating Humidity | 0-95%RH @0-40°℃(non-condensing) |
Dimension,DxWxH(mm) | 678x418x129 [3U] |
Net Weight (kgs) | 20.5/17.6/21 |
Frequency Range | 46~54Hz or 56~64Hz |
Harmonic Distortion | ≤2%THD (Linear Load);≤3%THD (Non-linear Load) |
Inverter to Bypass | zero |
CAPACITY | 3k-10k |
Voltage Range | 190-520 VAC(3-phase)@50%load 305-478 VAC(3-phase)@100%load |
THDi | <4%@full linear load |
Operating Humidity | 0-95%RH @0-40°℃(non-condensing) |
MODEL | Arena 3/3-10K | Arena 3/1-10K | Arena 1/1-10K | Arena 2/2-6K LV | Arena 3/3-10K LV | |||||||||
PHASE | 3 phase in/3 phase out | 3 phase in /1 phase out | 1 phase in /1 phase out | 2 phase in /2 phase out | 3 phase in /3 phase out | |||||||||
CAPACITY | 10000VA/10000 W | 10000VA/10000 W | 10000VA/10000 W | 6000 VA/6000 W | 10000 VA/8000 W | |||||||||
PARALLEL CAPABILITY | 10 | 10 | 10 | 10 | 10 | |||||||||
INPUT | ||||||||||||||
Nominal Voltage | 3x360VAC/380VAC/400VAC/415VAC(3Ph+N+PE) | 3x360VAC/380VAC/400VAC/415VAC(3Ph+N+PE) | 208VAC/220VAC/230VAC 1240VAC(1Ph+N+PE) | 100/200,110/220,120/208，120/240,127/220 VAC (2P+N+PE） | 3x173VAC/190VAC/200VAC/208/220VAC (3Ph+N+PE) | |||||||||
Voltage Range | 190-520 VAC(3-phase)@50%load 305-478 VAC(3phase)@100%load | 110-300 VAC @50%load 76-276 VAC @100%load | 88-155 VAC(L-N) 152-269 VAC (L-L) | 88-155 VAC (L-N) 152-269 VAC(L-L) | ||||||||||
Frequency Range | 40 Hz~70 Hz | |||||||||||||
Power Factor | ≥0.99 @100%load | |||||||||||||
THDi | <4%@full linear load | |||||||||||||
OUTPUT | ||||||||||||||
Output Voltage | 360VAC/380VAC/400VAC/ 415VAC(3Ph+N | 208*/220/230/240VAC (L+N) | 208*/220/230/240VAC (L+N) | 100/200,110/220,120/208 120/240,127/220VAC (2Ph+N) | 173VAC/190VAC/200VAC/208VAC/220VAC(3Ph+N | |||||||||
Frequency Range (Synchronized Range) | 46~54Hz or 56~64Hz | |||||||||||||
Frequency Range (Batt.Mode) | 50Hz±0.1 Hz or 60 Hz±0.1 Hz | |||||||||||||
Current Crest Ratio | 3:1 (max.) | |||||||||||||
Harmonic Distortion | ≤2%THD (Linear Load);≤3%THD (Non-linear Load) | |||||||||||||
Transfer Time | AC Mode to Batt.Mode | zero | ||||||||||||
Inverter to Bypass | zero | |||||||||||||
Waveform(Batt.Mode) | Pure Sinewave | |||||||||||||
EFFICIENCY | ||||||||||||||
AC Mode | 94% | 94% | 93.5% | 91% | 92% | |||||||||
ECO Mode | 97% | 97% | 97% | 97% | 97% | |||||||||
Battery Mode | At Full Load | 93% | 92.5% | 92% | 91% | 92% | ||||||||
Peak | 93.5% | 93% | 92.5% | 91.5% | 92% | |||||||||
BATTERY CHARGER | ||||||||||||||
Battery Voltage | ±12V/9 Ah | |||||||||||||
Battery Numbers | 16~20 pcs (adjustable)x 2 | 16~20pcs (adjustable)x 2 | 16~20 pcs (adjustable)x 2 | 8~10pcs (adjustable)x 2 | 8~10pcs (adjustable)x 2 | |||||||||
Nominal Voltage | +1-192V (12Vx 32 pcs) | +1-192V (12Vx32 pcs) | +1-192V (12Vx 32 pcs) | +1-96V (12Vx 16 pcs | +/-96V (12Vx 16 pcs | |||||||||
Maximum Voltage | +1-240V (12Vx40 pcs) | +1-240V (12Vx40 pcs) | +1-240V (12Vx40 pcs) | +1-120V (12Vx20pcs) | +1-120V (12Vx20pcs) | |||||||||
Minimum Voltage | +/-192V(12Vx 32 pcs) | +1-192V (12Vx 32 pcs) | +1-192V (12V x 32 pcs) | +1-96V (12Vx 16pcs) | +1-96V (12Vx 16pcs) | |||||||||
Charging Voltage | ±218V | ±218V | ±218V | ±109V | ±109V | |||||||||
Typical Recharging Time | 9 hours recover to 90%capacity | |||||||||||||
Charging Current | ±4A | |||||||||||||
INDICATORS | ||||||||||||||
1CD/LED Display | UPS status,Load level,Battery level,Input/Output voltage,Discharge timer,and Fault conditions | |||||||||||||
PHYSICAL | ||||||||||||||
Dimension,DxWxH(mm) | 678x418x129 [3U] | |||||||||||||
Net Weight (kgs) | 20.5 | 20.5 | 20.5 | 17.6 | 21 | |||||||||
ENVIRONMENT | ||||||||||||||
Operating Humidity | 0-95%RH @0-40°℃(non-condensing) | |||||||||||||
Noise Level | Less than 55dB @1 Meter | Less than 55dB @1 Meter | Less than 55dB @1 Meter | Less than 58dB @1 Meter | Less than 58dB @1 Meter | |||||||||
MANAGEMENT | ||||||||||||||
Smart RS-232/USB | Supports Windows@Family,Linux and MAC | |||||||||||||
