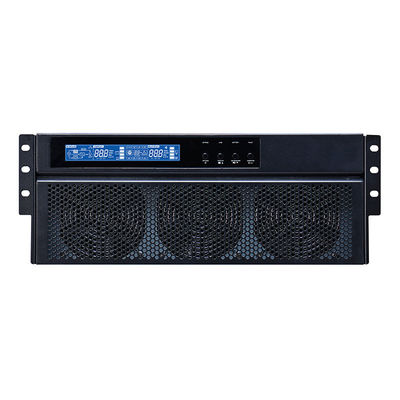

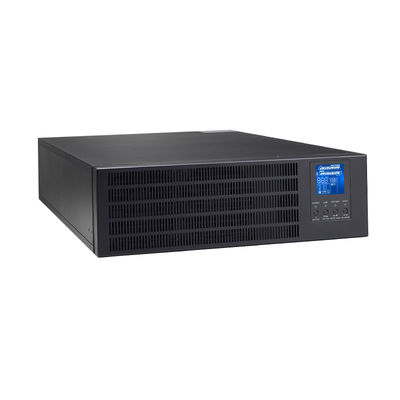

10KW 15KW 20KW 30KW 40KW 60KW OEM Three Phase Online UPS For Networking Power Factor 0.99
Product Summary
MODEL10KL15KL20KL30KL40KL60KLPHASE3-phase in/3-phase outCAPACITY10KVA/10KW15KVA/15KW20KVA/20KW30KVA/30KW40KVA/40KW60KVA/6DKWPARALLEL CAPABILITY4INPUTNominal Voltage3×400 VAC (3Ph+N)or 208*220/230/240 VAC (Ph-N)Voltage Range190-520 VAC(3-phase)@50%load;305-478 VAC(3-phase)@100%loadFrequency48~54 Hz ...
Key Attributes
Brand Name:
Visench
Model Number:
Visench Galleon II Rack
Place of Origin:
Guangdong, China
Price:
$999.00 - $2,621.00/pieces
Product Custom Attributes
Highlight
Three Phase Online UPS 10KW
,High Power Online UPS 60KW
,Networking UPS Power Factor 0.99
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Networking
Electric Energy:
10000 Wh
Product Name:
Galleon II 3P3P Rack
Rated Capacity:
10KVA-60KVA
Power Factor:
0.99
Input Voltage:
208/220/230/240 VAC(Ph-N)
Output Voltage:
3 X 360*/380/4001415 VAC(3Ph+N)or 208*12201230/240 VAC (Ph-N)
Waveform:
Pure Sine Wave
Battery Type:
Depending On The Applications
Inverter To Bypass:
Zero
Size(mm):
680 X 438 X 133
Weight(Kgs):
27/30/32/34/45
Product Description
MODEL | 10KL | 15KL | 20KL | 30KL | 40KL | 60KL | ||||||||
PHASE | 3-phase in/3-phase out | |||||||||||||
CAPACITY | 10KVA/10KW | 15KVA/15KW | 20KVA/20KW | 30KVA/30KW | 40KVA/40KW | 60KVA/6DKW | ||||||||
PARALLEL CAPABILITY | 4 | |||||||||||||
INPUT | ||||||||||||||
Nominal Voltage | 3×400 VAC (3Ph+N)or 208*220/230/240 VAC (Ph-N) | |||||||||||||
Voltage Range | 190-520 VAC(3-phase)@50%load;305-478 VAC(3-phase)@100%load | |||||||||||||
Frequency | 48~54 Hz or 56~84Hz | |||||||||||||
Power Factor | ≥0.90 @100%load | |||||||||||||
OUTPUT | ||||||||||||||
Output Voltage | 3x380Y3801400/415 VAC(3Ph+N)or 208*220/230/240 VAC (Ph-N) | 3x380Y380/400/415 VAC(3Ph+N) | ||||||||||||
AC Voltage Regulation (Batt.Mode) | ±1% | |||||||||||||
Frequency Range (Synchranized Range) | 46~54Hz or 56~64Hz | |||||||||||||
Frequency Range (Batt.Mode) | 50 Hz±0.1 Hzor60 Hz±0.1 Hz | |||||||||||||
Current Crest Ratio | 3:1 (max.) | |||||||||||||
Harmonic Distortion | ≤2%THD(Linear Load):≤5%THD (Non-linear Load | |||||||||||||
Transfer Time | AC mode to Battery mode | Zero | ||||||||||||
Invener to Bypass | Zero | |||||||||||||
Waveform (Batt.Mode) | Pure Sinewave | |||||||||||||
Overload | AC Mode | 100-110%for 60 min,110-125%for 10 min,125%~150%for 1 min;>150%immediately | ||||||||||||
Battery Mode | 100-110%for 60 min,110-125%for 10 min,125%~150%for 1 min;>150%immediately | |||||||||||||
EFFICIENCY | ||||||||||||||
AC Mode | 95.5% | |||||||||||||
ECO Mode | 98.5% | |||||||||||||
Battery Mode | 94.5% | |||||||||||||
BATTERY | ||||||||||||||
Battery Type | Depending on the applications | |||||||||||||
Battery Numbers | 20 pcs | 32~40 pcs(Adjustable) | ||||||||||||
Charging Current (max.) | 1A~12A(Adjustable) | 1A-10A (Adjustable) | 1A~18A (Adjustable) | |||||||||||
Charging Voltage | +1-13.65 VDC x N (N=10) | +113.85 VDCxN (N=16~20) | ||||||||||||
PHYSICAL | ||||||||||||||
Dimension,DxWxH(mm) | 880x438x133(3U) | 797x438x176(4U） | ||||||||||||
Net Weight (Kgs) | 26 | 28 | 28 | 29 | 40 | 45 | ||||||||
ENVIRONMENT | ||||||||||||||
Operating Temperature | 0-40℃ | |||||||||||||
Operating Humidity | <95% and non-condensing | |||||||||||||
Noise Level | Less than 62dBA @1Meter | Less than 65dB @1 Meter | Less than 65dB @1 Meter | Less than 65dB @1 Meter | Less than 70dB @1 Meter | |||||||||
MANAGEMENT | ||||||||||||||
Smart RS-232/USB | Supports WindowsO family.Linux and MAC | |||||||||||||
Optional SNMP | Power management from SNMP manager and web browser | |||||||||||||
Product name | Galleon II 3P3P Rack |
Rated Capacity | 10KVA-60KVA |
Power Factor | 0.99 |
Input Voltage | 208*122012301240 VAC(Ph-N) |
Frequency | 46~54 Hz or 56~64Hz |
Output Voltage | 3 x 360*/380/4001415 VAC(3Ph+N)or 208*12201230/240 VAC (Ph-N) |
Waveform | Pure Sine wave |
Battery Type | Depending on the applications |
PHASE | 3-phase in/ 3-phase out |
Harmonic Distortion | ≤ 2 % THD (Linear Load) ; ≤ 5 % THD (Non-inear Load) |
Current Crest Ratio | 3:1(max.) |
Battery Mode | 94.50% |
Frequency Range | 46~54Hz or 56~64Hz |
Inverter to Bypass | Zero |
Operating Temperature | 0-40°C |
Size(mm) | 680 x 438 x 133 |
Weight(Kgs) | 27/30/32/34/45 |
