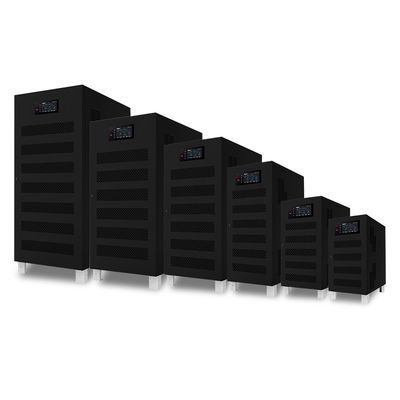

40KW 40000VA 40000W Visench Giant ll 40K Industrial PF 0.99/1Three Phase OEM UPS For Networking
Product Summary
Product nameGiant 3p3pRated Capacity10kva-500kvaPower Factor0.9, customized up to 1.0Input Voltage380VAC/400VACI415VACFrequency50Hz±10%Output Voltage380VAC/400VACI415VACTVss40kA (optionalOverload Capability110%continuous running;125% for 10minRectifier Type6 pulseInput Voltage Range285VAC~475VACBate...
Key Attributes
Brand Name:
Visench
Model Number:
Visench Giant 3p 3p
Place of Origin:
Guangdong, China
Price:
$1,169.00 - $27,771.00/pieces
Product Custom Attributes
Highlight
40KW industrial UPS
,three phase online UPS
,high power networking UPS
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Networking
Electric Energy:
10000 Wh
Product Name:
Giant 3p3p
Rated Capacity:
10kva-500kva
Power Factor:
0.9, Customized Up To 1.0
Input Voltage:
380VAC/400VACI415VAC
Output Voltage:
380VAC/400VACI415VAC
Frequency:
50Hz±10%
TVSS:
40kA (optional
Overload Capability:
110%continuous Running;125% For 10min
Size(mm):
656 X 405 X 817
Weight(Kgs):
120/145/193/278/365/471
Product Description
Product name | Giant 3p3p |
Rated Capacity | 10kva-500kva |
Power Factor | 0.9, customized up to 1.0 |
Input Voltage | 380VAC/400VACI415VAC |
Frequency | 50Hz±10% |
Output Voltage | 380VAC/400VACI415VAC |
TVss | 40kA (optional |
Overload Capability | 110%continuous running;125% for 10min |
Rectifier Type | 6 pulse |
Input Voltage Range | 285VAC~475VAC |
Batery voltage | 384 VDC (Adjustable) |
IP Protection | IP31 (default), IP42 (optional) |
Altitude | 1000m |
Storage Temperature | （—）25°C~55°C |
Operating Temperature | 0~ 50°C |
Size(mm) | 656 x 405 x 817 |
Weight(Kgs) | 120/145/193/278/365/471 |
MODEL | Giant II 15K | Giant II 30K | Giant II 60K | Giant II 100K | Giant II 160K | |||||
CAPACITY | 15KVA/13.5KW | 30 KVA/27KW | 60KVA/54KW | 100KVA/90KW | 160KVA/144KW | |||||
INPUT | ||||||||||
Rectifier Type | 6 pulse | 12 pulse | ||||||||
Main Input and Bypass Input | Supports dual inputs | |||||||||
Nominal Voltage | 380VAC/400VAC/415VAC | |||||||||
Acceptable Voltage Range | 304VAC～456VAC | |||||||||
Frequency | 50Hz±10% | |||||||||
TVSS | 40kA(optional) | |||||||||
BYPASS | ||||||||||
Nominal Voltage | 380VAC/400VAC/415VAC | |||||||||
Input Voltage Range | 285VAC~475VAC | |||||||||
BATTERY | ||||||||||
Battery Voltage | 384 VDC(Adjustable) | |||||||||
Charging curent | The charging current is determined by the battery capacity.charging current range is 0.1C to 0.2C,Default is 0.1 C Maximum 0.2C,5A @full load | |||||||||
Cold Start | Yes | |||||||||
OUTPUT | ||||||||||
Power Factor | 0.9,customized up to 1.0 | |||||||||
Nominal Output Voltage | 380VAC/400VAC/415VAC | |||||||||
Output Voltage Regulation | ±1% | |||||||||
Overload Capability | 110%continuous running;125%for 10 min;>150%for 1 min | |||||||||
PHYSICAL | ||||||||||
IP Protection | IP31 (default),IP42 (optional) | |||||||||
Dimensions,DxWxH(mm) | 656x405x817 | 656x405x941 | 818x432x1159 | 971x554x1290 | 1051x705x1646 | |||||
Net Weight (Kgs) | 145 | 278 | 471 | 650 | 790 | |||||
ENVIRONMENT | ||||||||||
Operating Temperature | 0~50℃ | |||||||||
Storage Temperature | 25°℃~55℃ | |||||||||
Humidity | 0~95%(non-condensing) | |||||||||
Altitude | 1000m | |||||||||
MANAGEMENT | ||||||||||
Modbus RS-232/RS485 | Supports Windows@family,Linux and MAC | |||||||||
Dry Contacts | 5 outputs and 4 inputs | |||||||||
Optional SNMP | Power management from SNMP manager and web browser | |||||||||
STANDARD | ||||||||||
Safety | EC62040-1-2017 | |||||||||
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
1. May I take some samples to test before I placing the order?
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
