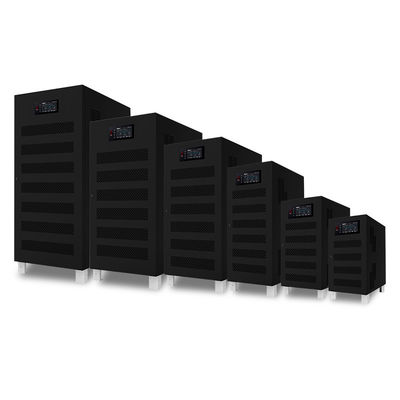

10kva-500kva Rated Capacity Visench OEM Three Phase UPS for High Capacity and Efficiency
Product Summary
Product nameGiant 3p3pRated Capacity10kva-500kvaPower Factor0.9, customized up to 1.0Input Voltage380VAC/400VACI415VACFrequency50Hz±10%Output Voltage380VAC/400VACI415VACTVss40kA (optionalOverload Capability110%continuous running;125% for 10minRectifier Type6 pulseInput Voltage Range285VAC~475VACBate...
Key Attributes
Brand Name:
Visench
Model Number:
Visench Giant 3p 3p
Place of Origin:
Guangdong, China
Price:
$1,169.00 - $27,771.00/pieces
Product Custom Attributes
Highlight
10kva-500kva three phase UPS
,high capacity online UPS
,efficient OEM three phase UPS
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Computer/networking
Electric Energy:
10000 Wh
Product Name:
Giant 3p3p
Rated Capacity:
10kva-500kva
Power Factor:
0.9, Customized Up To 1.0
Input Voltage:
380VAC/400VACI415VAC
Output Voltage:
380VAC/400VACI415VAC
Frequency:
50Hz±10%
TVSS:
40kA (optional
Overload Capability:
110%continuous Running;125% For 10min
Size(mm):
656 X 405 X 817
Weight(Kgs):
120/145/193/278/365/471
Product Description
Product name | Giant 3p3p |
Rated Capacity | 10kva-500kva |
Power Factor | 0.9, customized up to 1.0 |
Input Voltage | 380VAC/400VACI415VAC |
Frequency | 50Hz±10% |
Output Voltage | 380VAC/400VACI415VAC |
TVss | 40kA (optional |
Overload Capability | 110%continuous running;125% for 10min |
Rectifier Type | 6 pulse |
Input Voltage Range | 285VAC~475VAC |
Batery voltage | 384 VDC (Adjustable) |
IP Protection | IP31 (default), IP42 (optional) |
Altitude | 1000m |
Storage Temperature | （—）25°C~55°C |
Operating Temperature | 0~ 50°C |
Size(mm) | 656 x 405 x 817 |
Weight(Kgs) | 120/145/193/278/365/471 |
MODEL | Giant II 15K | Giant II 30K | Giant II 60K | Giant II 100K | Giant II 160K | |||||
CAPACITY | 15KVA/13.5KW | 30 KVA/27KW | 60KVA/54KW | 100KVA/90KW | 160KVA/144KW | |||||
INPUT | ||||||||||
Rectifier Type | 6 pulse | 12 pulse | ||||||||
Main Input and Bypass Input | Supports dual inputs | |||||||||
Nominal Voltage | 380VAC/400VAC/415VAC | |||||||||
Acceptable Voltage Range | 304VAC～456VAC | |||||||||
Frequency | 50Hz±10% | |||||||||
TVSS | 40kA(optional) | |||||||||
BYPASS | ||||||||||
Nominal Voltage | 380VAC/400VAC/415VAC | |||||||||
Input Voltage Range | 285VAC~475VAC | |||||||||
BATTERY | ||||||||||
Battery Voltage | 384 VDC(Adjustable) | |||||||||
Charging curent | The charging current is determined by the battery capacity.charging current range is 0.1C to 0.2C,Default is 0.1 C Maximum 0.2C,5A @full load | |||||||||
Cold Start | Yes | |||||||||
OUTPUT | ||||||||||
Power Factor | 0.9,customized up to 1.0 | |||||||||
Nominal Output Voltage | 380VAC/400VAC/415VAC | |||||||||
Output Voltage Regulation | ±1% | |||||||||
Overload Capability | 110%continuous running;125%for 10 min;>150%for 1 min | |||||||||
PHYSICAL | ||||||||||
IP Protection | IP31 (default),IP42 (optional) | |||||||||
Dimensions,DxWxH(mm) | 656x405x817 | 656x405x941 | 818x432x1159 | 971x554x1290 | 1051x705x1646 | |||||
Net Weight (Kgs) | 145 | 278 | 471 | 650 | 790 | |||||
ENVIRONMENT | ||||||||||
Operating Temperature | 0~50℃ | |||||||||
Storage Temperature | 25°℃~55℃ | |||||||||
Humidity | 0~95%(non-condensing) | |||||||||
Altitude | 1000m | |||||||||
MANAGEMENT | ||||||||||
Modbus RS-232/RS485 | Supports Windows@family,Linux and MAC | |||||||||
Dry Contacts | 5 outputs and 4 inputs | |||||||||
Optional SNMP | Power management from SNMP manager and web browser | |||||||||
STANDARD | ||||||||||
Safety | EC62040-1-2017 | |||||||||
