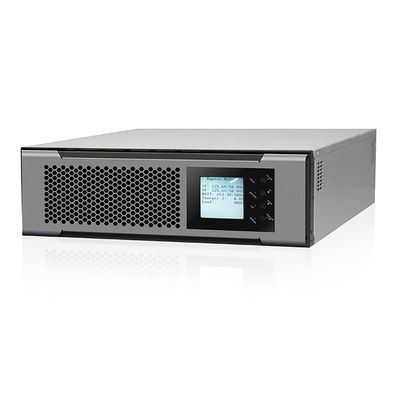

Visench Arena 3/3-10k 10000VA/10000W 3U 10KVA 10KW for Security/Monitoring/Alarm System
Product Summary
Product nameArena 3U Online UPSPHASE3 phase in/3 phase outInput Voltage3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)Power Factor≥0.99 @100%loadOutput Voltage3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)Current Crest Ratio3:1 (max.)WaveformPure SinewaveOperating Humidity0-95%RH @0-40°℃(non-condensing...
Key Attributes
Brand Name:
Visench
Model Number:
Visench Arena 3U
Place of Origin:
Guangdong, China
Price:
$857.00 - $1,628.00/pieces
Product Custom Attributes
Highlight
10KVA online UPS for security systems
,10000VA UPS for monitoring equipment
,3U rackmount UPS with warranty
Warranty:
1year
Phase:
Single Phase
Protection:
Short Circuit
Type:
On-line
Application:
Security / Monitoring / Alarm
Electric Energy:
3000 Wh
Product Name:
Arena 3U Online UPS
PHASE:
3 Phase In/3 Phase Out
Input Voltage:
3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)
Power Factor:
≥0.99 @100%load
Output Voltage:
3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)
Current Crest Ratio:
3:1 (max.)
Waveform:
Pure Sinewave
Operating Humidity:
0-95%RH @0-40°℃(non-condensing)
Dimension,DxWxH(mm):
678x418x129 [3U]
Net Weight (kgs):
20.5
Product Description
Product name | Arena 3U Online UPS |
PHASE | 3 phase in/3 phase out |
Input Voltage | 3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE) |
Power Factor | ≥0.99 @100%load |
Output Voltage | 3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE) |
Current Crest Ratio | 3:1 (max.) |
Waveform | Pure Sinewave |
Operating Humidity | 0-95%RH @0-40°℃(non-condensing) |
Dimension,DxWxH(mm) | 678x418x129 [3U] |
Net Weight (kgs) | 20.5/17.6/21 |
Frequency Range | 46~54Hz or 56~64Hz |
Harmonic Distortion | ≤2%THD (Linear Load);≤3%THD (Non-linear Load) |
Inverter to Bypass | zero |
CAPACITY | 3k-10k |
Voltage Range | 190-520 VAC(3-phase)@50%load 305-478 VAC(3-phase)@100%load |
THDi | <4%@full linear load |
Operating Humidity | 0-95%RH @0-40°℃(non-condensing) |
MODEL | Arena 3/3-10K | Arena 3/1-10K | Arena 1/1-10K | Arena 2/2-6K LV | Arena 3/3-10K LV | |||||||||
PHASE | 3 phase in/3 phase out | 3 phase in /1 phase out | 1 phase in /1 phase out | 2 phase in /2 phase out | 3 phase in /3 phase out | |||||||||
CAPACITY | 10000VA/10000 W | 10000VA/10000 W | 10000VA/10000 W | 6000 VA/6000 W | 10000 VA/8000 W | |||||||||
PARALLEL CAPABILITY | 10 | 10 | 10 | 10 | 10 | |||||||||
INPUT | ||||||||||||||
Nominal Voltage | 3x360VAC/380VAC/400VAC/415VAC(3Ph+N+PE) | 3x360VAC/380VAC/400VAC/415VAC(3Ph+N+PE) | 208VAC/220VAC/230VAC 1240VAC(1Ph+N+PE) | 100/200,110/220,120/208，120/240,127/220 VAC (2P+N+PE） | 3x173VAC/190VAC/200VAC/208/220VAC (3Ph+N+PE) | |||||||||
Voltage Range | 190-520 VAC(3-phase)@50%load 305-478 VAC(3phase)@100%load | 110-300 VAC @50%load 76-276 VAC @100%load | 88-155 VAC(L-N) 152-269 VAC (L-L) | 88-155 VAC (L-N) 152-269 VAC(L-L) | ||||||||||
Frequency Range | 40 Hz~70 Hz | |||||||||||||
Power Factor | ≥0.99 @100%load | |||||||||||||
THDi | <4%@full linear load | |||||||||||||
OUTPUT | ||||||||||||||
Output Voltage | 360VAC/380VAC/400VAC/ 415VAC(3Ph+N | 208*/220/230/240VAC (L+N) | 208*/220/230/240VAC (L+N) | 100/200,110/220,120/208 120/240,127/220VAC (2Ph+N) | 173VAC/190VAC/200VAC/208VAC/220VAC(3Ph+N | |||||||||
Frequency Range (Synchronized Range) | 46~54Hz or 56~64Hz | |||||||||||||
Frequency Range (Batt.Mode) | 50Hz±0.1 Hz or 60 Hz±0.1 Hz | |||||||||||||
Current Crest Ratio | 3:1 (max.) | |||||||||||||
Harmonic Distortion | ≤2%THD (Linear Load);≤3%THD (Non-linear Load) | |||||||||||||
Transfer Time | AC Mode to Batt.Mode | zero | ||||||||||||
Inverter to Bypass | zero | |||||||||||||
Waveform(Batt.Mode) | Pure Sinewave | |||||||||||||
EFFICIENCY | ||||||||||||||
AC Mode | 94% | 94% | 93.5% | 91% | 92% | |||||||||
ECO Mode | 97% | 97% | 97% | 97% | 97% | |||||||||
Battery Mode | At Full Load | 93% | 92.5% | 92% | 91% | 92% | ||||||||
Peak | 93.5% | 93% | 92.5% | 91.5% | 92% | |||||||||
BATTERY CHARGER | ||||||||||||||
Battery Voltage | ±12V/9 Ah | |||||||||||||
Battery Numbers | 16~20 pcs (adjustable)x 2 | 16~20pcs (adjustable)x 2 | 16~20 pcs (adjustable)x 2 | 8~10pcs (adjustable)x 2 | 8~10pcs (adjustable)x 2 | |||||||||
Nominal Voltage | +1-192V (12Vx 32 pcs) | +1-192V (12Vx32 pcs) | +1-192V (12Vx 32 pcs) | +1-96V (12Vx 16 pcs | +/-96V (12Vx 16 pcs | |||||||||
Maximum Voltage | +1-240V (12Vx40 pcs) | +1-240V (12Vx40 pcs) | +1-240V (12Vx40 pcs) | +1-120V (12Vx20pcs) | +1-120V (12Vx20pcs) | |||||||||
Minimum Voltage | +/-192V(12Vx 32 pcs) | +1-192V (12Vx 32 pcs) | +1-192V (12V x 32 pcs) | +1-96V (12Vx 16pcs) | +1-96V (12Vx 16pcs) | |||||||||
Charging Voltage | ±218V | ±218V | ±218V | ±109V | ±109V | |||||||||
Typical Recharging Time | 9 hours recover to 90%capacity | |||||||||||||
Charging Current | ±4A | |||||||||||||
INDICATORS | ||||||||||||||
1CD/LED Display | UPS status,Load level,Battery level,Input/Output voltage,Discharge timer,and Fault conditions | |||||||||||||
PHYSICAL | ||||||||||||||
Dimension,DxWxH(mm) | 678x418x129 [3U] | |||||||||||||
Net Weight (kgs) | 20.5 | 20.5 | 20.5 | 17.6 | 21 | |||||||||
ENVIRONMENT | ||||||||||||||
Operating Humidity | 0-95%RH @0-40°℃(non-condensing) | |||||||||||||
Noise Level | Less than 55dB @1 Meter | Less than 55dB @1 Meter | Less than 55dB @1 Meter | Less than 58dB @1 Meter | Less than 58dB @1 Meter | |||||||||
MANAGEMENT | ||||||||||||||
Smart RS-232/USB | Supports Windows@Family,Linux and MAC | |||||||||||||
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
