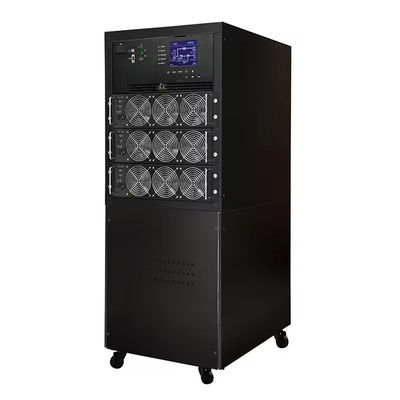

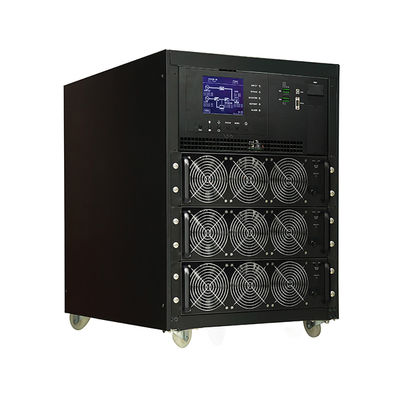

Visench PM-20HV 20KW 20KVA 20000VA 20000W 3Phase PF0.99 External Battery Online UPS For Telecommunications
Product Summary
Product nameVisench +Power EPHASE3-phase in/3-phase outMAX CABINET CAPACITY*60KW/90KWBattery TypeExternal BatteryInput Voltage3x380VAC/400VAC/415VAC (3Ph+N)Frequency Range40Hz~70HzPower Factor>0.99 at 100%load,>0.98 at 50%loadHarmonic Distortion (THDi)0.98 at 50%loadHarmonic Distortion (THDi)150...
Key Attributes
Brand Name:
Visench
Model Number:
Visench +Power E
Place of Origin:
Guangdong, China
Price:
$1,165.00 - $1,714.00/pieces
Product Custom Attributes
Highlight
20KW 3Phase Online UPS
,External Battery Online UPS
,Telecommunications Online UPS with PF0.99
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Telecommunications
Electric Energy:
20000 Wh
Product Name:
Visench +Power E
PHASE:
3-phase In/3-phase Out
MAX CABINET CAPACITY*:
60KW/90KW
Battery Type:
External Battery
Input Voltage:
3x380VAC/400VAC/415VAC (3Ph+N)
Frequency Range:
40Hz~70Hz
Power Factor:
>0.99 At 100%load,>0.98 At 50%load
Harmonic Distortion (THDi):
<3%@100%load
Output Voltage:
3x380VAC/400VAC/415VAC (3Ph+N)
Cabinet Dimension (Dx Wx H)mm:
1000x515x763
Product Description
Product name | Visench +Power E |
PHASE | 3-phase in/3-phase out |
MAX CABINET CAPACITY* | 60KW/90KW |
Battery Type | External Battery |
Input Voltage | 3x380VAC/400VAC/415VAC (3Ph+N) |
Frequency Range | 40Hz~70Hz |
Power Factor | >0.99 at 100%load,>0.98 at 50%load |
Harmonic Distortion (THDi) | <3%@100%load |
Output Voltage | 3x380VAC/400VAC/415VAC (3Ph+N) |
Cabinet Dimension (Dx Wx H)mm | 1000x515x763 |
Net Weight (kg) | 182/183.5 |
Operating Temperature | 0～40℃ |
Relative Humidity | 0-95%non-condensing |
Altitude | <1000m for Nominal power |
iP Protection | IP 20 |
Surge protection | IEC 61643-1 |
MODEL | +Power E 15U-60 | +Power E 15U-90 | ||
PHASE | 3-phase in/3-phase out | |||
MAX CABINET CAPACITY* | 60KW | 90KW | ||
BATTERY TYPE | External Battery | |||
ONE POWER MODULE CAPACITY | 20KVA/20KW | 30KVA/30KW | ||
MAX.POWER MODULE NO | 3 | |||
INPUT | ||||
Nominal Voltage | 3x380VAC/400VAC/415VAC (3Ph+N) | |||
Voitage Range | 305～478 VAC at 70%-100%load;208~478 VAC for | |||
Nominal Frequency | 5060z(Auto sensing) | |||
Frequency Range | 40Hz~70Hz | |||
Power Factor | >0.99 at 100%load,>0.98 at 50%load | |||
Harmonic Distortion (THDi) | <3%@100%load | |||
OUTPUT | ||||
Nominal Voltage | 3x380VAC/400VAC/415VAC (3Ph+N) | |||
Voltage Regulation (Steady state) | ≤±1%Typical (balanced load) ≤±2%Typical (unbalanced load) | |||
Nounal Frequency | 50/60Hz | |||
Frequency Range (Synchronized) | 46Hz~54Hz or 56Hz～64Hz | |||
Overload Capability | 1 hour for 110%,10 mins for 125%,1 min for 150%and 200ms for>150% | |||
Harmonic Distortion | ≤2%THD (Linear Load);≤4%THD (Non-linear Load) | |||
Efficiency | Up to 94.5% | |||
BATTERY/CHARGER | ||||
Nominal Voltage | +1-216V (12Vx36 Pcs) | |||
Maimum Voltage | +/-240V (12Vx40 Pcs) | |||
Minimum Voltage | +/-192V (12Vx 32 Pcs) | |||
Float Charging Voltage | 2.25V/Cell | |||
Boost Charging Voltage | 2.35V/Cell | |||
Temperature Compensation | Yes | |||
Mavimum Charging Current | 6A(User-adjustable) | 8A(User-adjustable) | ||
PHYSICAL | ||||
Cabinet Dimension (Dx Wx H)mm | 1000x515x763 | |||
Net Weight (kg) | 182 | 183.5 | ||
ENVIRONMENT | ||||
Operating Temperature | 0～40℃ | |||
Relative Humidity | 0-95%non-condensing | |||
Altitude | <1000m for Nominal power | |||
iP Protection | IP 20 | |||
MANAGEMENT | ||||
Smart RS-232/USB | Supports Windows Famiy Linuy and MAC | |||
Optlonal SNMF | Power management from SNMP manager and web browser | |||
STANDARDS | ||||
Safety | EC/EN 60950-1;IEC/EN 62040-1 | |||
EMC | IEC/EN 62040-2 Category C3 | |||
