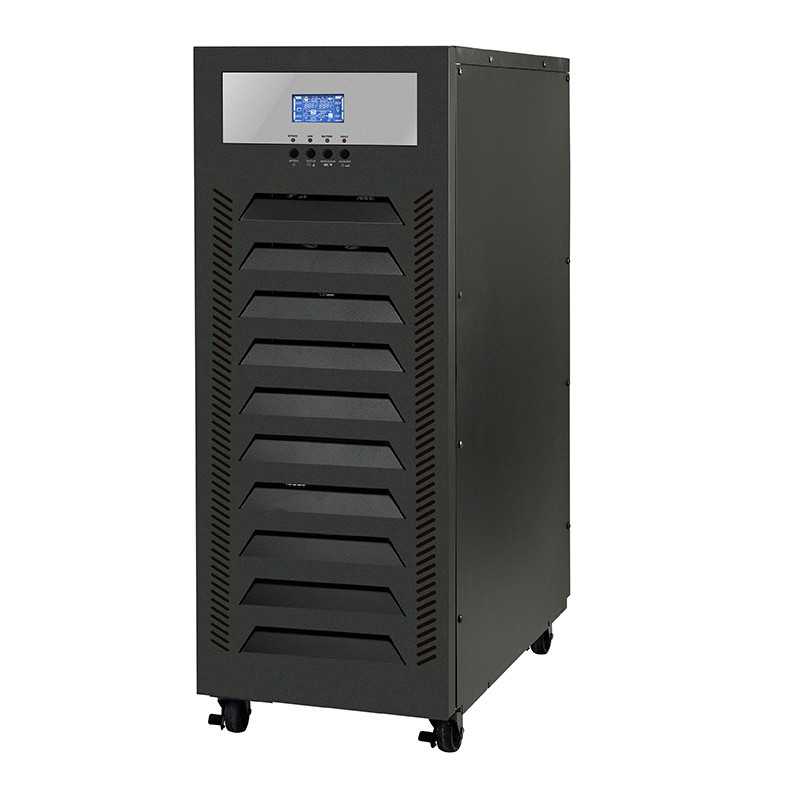

Telecommunications Visench OEM Giant Elite Single Phase UPS 6KVA-10KVA Rated Capacity

Place of Origin	Guangdong, China
Brand Name	Visench
Model Number	Visench Giant Elite
Price	$591.00 - $780.00/pieces

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Warranty	1year	Phase	Single Phase
Protection	Short Circuit	Type	On-line
Application	Telecommunications	Electric Energy	50000 Wh
Product Name	Giant Elite 1p1p	Rated Capacity	6kva-10kva
Voltage Regulation	± 1%	Input Voltage	208VAC1220VAC1230VAC
Output Voltage	208VAC1220VAC/230VAC	Waveform	Pure Sine Wave
Inverter To Bypass	Zero	Operating Temperature	0 To 50°C
Size(mm)	592 X 300 X826	Weight(Kgs)	106/114/122/130/138

Leave a Message

Product Description

MODEL			Giant Elite 6k(L)	Giant Elite 7.5k(L)	Giant Elite 10k(L)
PHASE			Single phase with ground
CAPACITY			6KVA/4.8KW	7.5KVA/6KW	10KVA/8KW
INPUT
Nominal Voltage			208VAC/220VAC/230VAC
Voltage Range			165VAC~285VAC @16 pcs of batteries;185VAC~285VAC @18 pcs of batteries
Frequenc			40 Hz~55 Hz @50Hz system;56 Hz~64 Hz @60Hz system
OUTPUT
Outout Voltage			208VAC/220VAC/230VAC
Voltage Regulation			±1%
Frequency Range (Synchronized Range)			45Hz~55 Hz or 56 Hz~64 Hz
Frequency Range (Batt.Mode)			50 Hz±0.1 Hz or 60Hz±0.1 Hz
Current Crest Ratio			3:1
Harmonic Distortion			≤3%THD(Linear Load);≤5%THD (Non-linear Load)
Transfer Time	AC to DC	Zero
		Inverter to Bypass	Zero
Waveform (Batt.Mode)			Pure Sinewave
EFFICIENCY
AC Mode			88.3%
Battery Mode			92%
INDICATORS
LCD			UPS status,load level,battery level,input/output voltage and frequency,fault code/waming code
ALARM
Battery Mode			Sounding every 4 seconds
Low Battery			Sounding every second
Overload			Sounding twice every second
Fault			Continously sounding
ENVIRONMENT
Operating Temperature			0~50°C(battery life cycle will be shorten when temperature is above 25°C)
Operating Humidity			<95 %and non-condensing
Noise Level			Less than 60dBA @1 Meter
MANAGEMENT
Smart RS-232/USB			Supports Windows Family,Linux and MAC
Dry Contact			Five signals:AC failure,low battery,UPS alarm,bypass and UPS fault
Optional SNMP			Power management from SNMP manager and web browser

BATTERY

Standard Model

Battery Type

12V/9Ah

Battery Numbers**

16 pcs

Recharging Time

6 hours recover to 90%capacity

Charging Current (max.)

Charging Voltage

218.4V±1%

Long-run Mode

Battery Type

Depending on the applications

Numbers

16 pc

18 pc

16 pc

18 pc

16 pc

18 pc

Charging Current (max.)

Default:8A;2A/4A/8A(Adjustable)

Charging Voltage

218.4V±1%

245.7V±1%

218.4V±1%

245.7V±1%

218.4V±1%

245.7 V±1%
