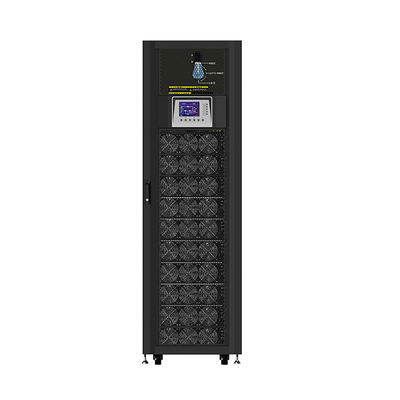

Telecommunications Visench Power 30U-90HV 90KW Modular 90KVA 90000VA 90000W PF 0.99 Online UPS
Product Summary
Product nameVisench +Power Modular UPSPHASE3-phase in/3-phase outCABINET CAPACTY20KW-300KWBATTERY TYPEBuilt -in/External BatteryNominal Voltage3x208/220 VAC (3Ph+N)Frequcncy Range40Hz~70HzPower Factor>0.99 at 100%load,>0.98 at 50%loadEiffcilencyUp to 92.5%at over 50%laadMaximum Charging Current8A ...
Key Attributes
Brand Name:
Visench
Model Number:
Visench +Power Modular
Place of Origin:
Guangdong, China
Price:
$1,233.00 - $4,445.00/pieces
Product Custom Attributes
Highlight
90KW modular online UPS
,90KVA UPS with PF 0.99
,90000VA telecommunications UPS
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Telecommunications
Electric Energy:
90000 Wh
Product Name:
Visench +Power Modular UPS
PHASE:
3-phase In/3-phase Out
CABINET CAPACTY:
20KW-300KW
BATTERY TYPE:
Built -in/External Battery
Nominal Voltage:
3x208/220 VAC (3Ph+N)
Frequcncy Range:
40Hz~70Hz
Power Factor:
>0.99 At 100%load
Eiffcilency:
Up To 92.5%at Over 50%load
Cabinet Dimension (Dx Wx H)mm:
1100x600x1475
Net Weight (kg):
675/932/335
Product Description
Product name | Visench +Power Modular UPS |
PHASE | 3-phase in/3-phase out |
CABINET CAPACTY | 20KW-300KW |
BATTERY TYPE | Built -in/External Battery |
Nominal Voltage | 3x208/220 VAC (3Ph+N) |
Frequcncy Range | 40Hz~70Hz |
Power Factor | >0.99 at 100%load,>0.98 at 50%load |
Eiffcilency | Up to 92.5%at over 50%laad |
Maximum Charging Current | 8A for each power module (User-adjustable) |
Input Voltage | 3x208/220 VAC (3Ph+N) |
Output Voltage | 3x208/220 VAC (3Ph+N) |
IP Protection | IP 20 |
Operating Temperature | 0~40°℃ |
Temperature Compensaton | Yes |
Maximum Charging Current | 8A for each power module (User-adjustable) |
Cabinet Dimension (Dx Wx H)mm | 1100x600x1475 |
Net Weight (kg) | 675/932/335 |
MODEL | +Power 30U-60LV | +Power 42U-80LV | +Power 30U-80LV | +Power 30U-120LV | +Power 42U-140LV | |||||||||
PHASE | 3-phase in/3-phase out | |||||||||||||
BATTERY TYPE | Built -in Battery | External Battery | ||||||||||||
ONE POWER MODULE CAPACITY | 20KVA/20KW | |||||||||||||
MAX.POWER MODULE NO. | 3 | 4 | 4 | 6 | 7+1 | |||||||||
MAX.BATTERY SET NO.** | 3 | 4 | - | - | - | |||||||||
INPUT | ||||||||||||||
Nominal Voltage | 3x208/220 VAC (3Ph+N) | |||||||||||||
Woltane Range | 182V-253V at 90%~100%load 156V~253V at 63%-90%load 121V~253V far <63%Load | |||||||||||||
Nominal Frequency | 50/60Hz(Auto sensing) | |||||||||||||
Frequcncy Range | 40Hz~70Hz | |||||||||||||
Power Factor | >0.99 at 100%load,>0.98 at 50%load | |||||||||||||
Harmonic Distortion (THDi) | ＜3%@100%load | |||||||||||||
OUTPUT | ||||||||||||||
Nominal Voltage | 3x208V/220VAC (3Ph+N) | |||||||||||||
Voltage Regulation (Steady state) | ≤±1%Typical (balanced load);≤±2%Typical (imbalanced load） | |||||||||||||
Nomnal Frequtncy | 50/60Hz | |||||||||||||
Frequency Range (Synchronized) | 46Hz～54Hz or 56Hz~64Hz | |||||||||||||
Onedoad Cepability | hour for 110%,10 mins for 125%.:1 min for 150%,200ms for >150% | |||||||||||||
Harmonic Distortion | ≤2%THD(Linear Laad);≤4%THD (Non-linear Load) | |||||||||||||
Eiffcilency | Up to 92.5%at over 50%load | |||||||||||||
BATTERY/CHARGER | ||||||||||||||
Mominal Votnge | +1-120V (12V x 20 pcs) | |||||||||||||
Float Charging Valtage | 2.3V/Cell | |||||||||||||
Boost Charging Voltage | 2.35V/Cell | |||||||||||||
Temperature Compensaton | Yes | |||||||||||||
Maximum Charging Current | 8A for each power module (User-adjustable) | |||||||||||||
PHYSICAL | ||||||||||||||
Cabinet Dimension (Dx Wx H)mm | 1100x600x1475 | 1100x600x 2010 | 1100x600x1475 | 1100 x600x1475 | 1100x600x2010 | |||||||||
Net Weight (kg) | 670.5 | 926 | 329 | 428.5 | 7Power Modules;504 8 Power Modules:537 | |||||||||
ENVIRONMENT | ||||||||||||||
Operating Temperature | 0~40°℃ | |||||||||||||
Rolatwe Humid | 0~95%non-condemsing | |||||||||||||
Altitude | ≤1000m for Nominal power | |||||||||||||
IP Protection | IP 20 | |||||||||||||
MANAGEMENT | ||||||||||||||
Smart RS-232/USB | Supports Windows Famlly,Lnux and MAC | |||||||||||||
Optional SNMP | Power management from SNMP manager and web browser | |||||||||||||
STANDARDS | ||||||||||||||
Safety | UL1778,CSA C22.2 No.107.3-05 | |||||||||||||
EMC | FCC Part 15,Subpart B Class A | |||||||||||||
