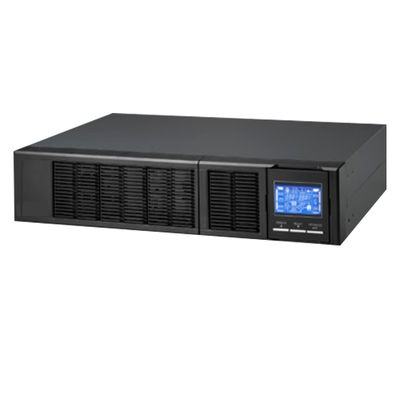

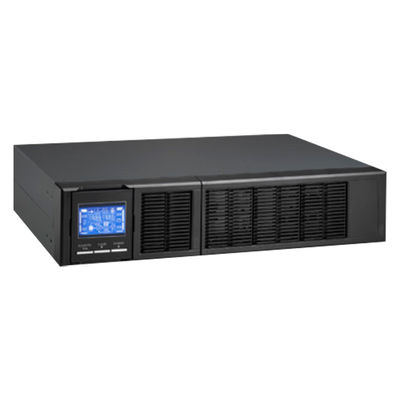

Visench Winner Pro 3KR L 3KVA 3KW 3000W 3000VA Pure Sinewave Single Phase Online UPS
Product Summary
Product nameWinner Pro RackRated Capacity1KVA -10KVAPower Factor0.99Input Voltage208/220/230/240VACFrequency40Hz-70HzOutput Voltage208/220/230/240VACWaveformPure Sine waveBattery Type12V/9AHPHASESingle phase with grounHarmonic Distortion≤ 3 % THD (Linear Load),Harmonic DistortionCurrent Crest Ratio3...
Key Attributes
Brand Name:
Visench
Model Number:
Winner Pro Rack
Place of Origin:
Guangdong, China
Price:
$115.00 - $348.00/pieces
Product Custom Attributes
Highlight
3KVA pure sinewave online UPS
,3000W single phase UPS
,3KW online UPS with warranty
Warranty:
1year
Phase:
Single Phase
Protection:
Short Circuit
Type:
On-line
Application:
Telecommunications
Electric Energy:
1000 Wh
Product Name:
Winner Pro Rack
Rated Capacity:
1KVA -10KVA
Power Factor:
0.99
Input Voltage:
208/220/230/240VAC
Output Voltage:
208/220/230/240VAC
Frequency:
40Hz To 70Hz
Waveform:
Pure Sine Wave
PHASE:
Single Phase With Ground
Battery Type:
12V/9AH
Inverter To Bypass:
4 Ms (Typical)
Product Description
Product name | Winner Pro Rack |
Rated Capacity | 1KVA -10KVA |
Power Factor | 0.99 |
Input Voltage | 208/220/230/240VAC |
Frequency | 40Hz-70Hz |
Output Voltage | 208/220/230/240VAC |
Waveform | Pure Sine wave |
Battery Type | 12V/9AH |
PHASE | Single phase with groun |
Harmonic Distortion | ≤ 3 % THD (Linear Load),Harmonic Distortion |
Current Crest Ratio | 3:01 |
Voltage Regulatior | 土1% |
Frequency Range | 47~ 53 Hz or 57~ 63 Hz |
Inverter to Bypass | 4 ms (Typical) |
Typical Recharge Time | 4 hours recover to 90% capacity |
Size(mm) | 310x438x88/410x438x88/630x438x88(mm) |
Weight(Kgs) | 12/19//14.2/15 |
MODEL | Winner Pro 1KR(L) | Winner Pro 2KR(L) | Winner Pro 3KR(L) | Winner Pro 6KR(L) | Winner Pro 10KR(L) | |||||
PHASE | Single phase with groud | |||||||||
CAPACITI | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 6000VA/4800W | 10000VA/8000W | |||||
INPUT | ||||||||||
Nominal Voltage | 110/115/120/127VAC or 208/220/230/240VAC | 208/220/230/240VAC | ||||||||
Input Voltage Range | 55-145 VAC or110-300 VAC at 50%load 85-140 VAC or 160-280 VAC at 100%load | 110-300 VAC±3%at 50%Load 176-300 VAC±3%at 100%Load | ||||||||
Frequency Range | 40Hz ~70 Hz | 46Hz~54 Hz or 56Hz~64 Hz | ||||||||
Power Factor | ≥0.99 @Nominal Voltage (100%load) | |||||||||
OUTPUT | ||||||||||
Output Voltage | 110/115/120/127VAC or 208/220/230/240VAC | 208/220/230/240VAC | ||||||||
Voltage Regulation | ±1% | ±1% | ||||||||
Frequency Range (Synchronized Range) | 47~53 Hz or 57～63 Hz | 46Hz~54 Hz or 56Hz~64 Hz | ||||||||
Frequency Range (Batt.Mode) | 50 Hz±0.25 Hzor60Hz±0.3 Hz | 50 Hz±0.1 Hzor 60 Hz±0.1 Hz | ||||||||
Current Crest Ratio | 3:1 | |||||||||
Harmonic Distortion | ≤3%THD (Linear Load) ≤6%THD (Non-linear Load) | ≤3%THD (Linear Load) ≤5%THD (Non-linear Load) | ||||||||
Transfer Time AC Mode to Battery Mode | Zero | 0 ms | ||||||||
Transfer Time Inverter to Bypass | 4 ms (Typical) | 0 ms | ||||||||
Waveform(Batt.Mode) | Pure Sinewave | |||||||||
EFFICIENCY | ||||||||||
AC Mode | 88% | 89% | 90% | 92% | 93% | |||||
Battery Mode | 83% | 87% | 88% | 90% | 91% | |||||
INDICATORS | ||||||||||
LCD Pane | UPS status,Load level,Battery level,Input/Output voltage,Discharge timer,and Fault conditions | |||||||||
ALARM | ||||||||||
Battery Mode | Sounding every 4 seconds | |||||||||
Low Battery | Sounding every second | |||||||||
Overload | Sounding twice every second | |||||||||
Fault | Continuously sounding | |||||||||
ENVIRONMENT | ||||||||||
Humidity | 20-90 %RH @0-40℃(non-condensing) | 0-95 %RH @0-40°℃(non-condensing) | ||||||||
Noise Level | Less than 50dB @1 Meter | Less than 55dB @1 Meter | Less than 58dB @1 Meter | |||||||
MANAGEMENT | ||||||||||
Smart RS-232/USB | Supports Windows Family,Linux and MAC | |||||||||
Optional SNMP | Power management from SNMP manager and web browser | |||||||||
