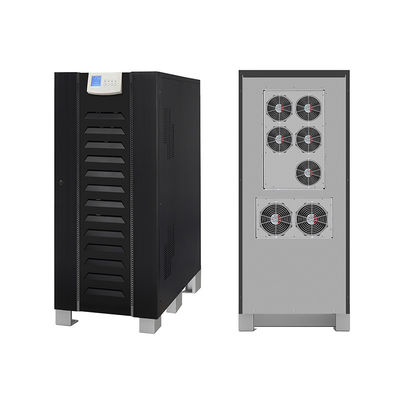

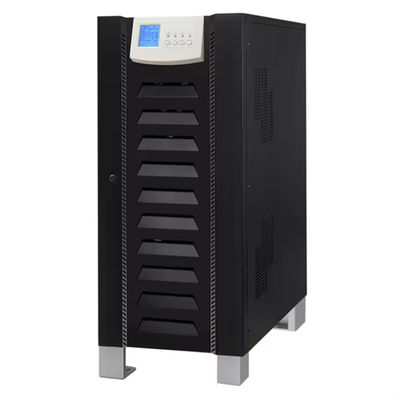

Pure Sinewave 10KVA 10KW 10000W Three Phase Online Data Center UPS Visench Giant31-10K
Product Summary
Product nameGiant 3p1pRated Capacity10KVA-40KVAPower Factor0.8Input Voltage3x380VAC/400VAC (3Ph + N or 3Ph + N + G)Frequency50Hz/60Hz +5 Hz (+10%)Output Voltage220VAC1230VAC1240VAC (Adjustable)WaveformPure SinewaveBattery Type6 pulsePHASE3PhaseFrequency Stability± 1%Short-circuit Capability60...
Key Attributes
Brand Name:
Visench
Model Number:
Visench Giant
Place of Origin:
Guangdong, China
Price:
$1,868.00 - $3,261.00/pieces
Product Custom Attributes
Highlight
10KVA pure sinewave online UPS
,three phase data center UPS
,10000W online UPS with warranty
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Security / Monitoring / Alarm
Electric Energy:
10000 Wh
Product Name:
Giant 3p1p
Rated Capacity:
10KVA-40KVA
Power Factor:
0.8
Input Voltage:
3x380VAC/400VAC (3Ph + N Or 3Ph + N + G)
Frequency:
50Hz/60Hz +5 Hz (+10%)
Output Voltage:
220VAC1230VAC1240VAC (Adjustable)
Waveform:
Pure Sinewave
PHASE:
3Phase
Size(mm):
656 X405 X817
Weight(Kgs):
118/120/145/193/278
Product Description
Product name | Giant 3p1p |
Rated Capacity | 10KVA-40KVA |
Power Factor | 0.8 |
Input Voltage | 3x380VAC/400VAC (3Ph + N or 3Ph + N + G) |
Frequency | 50Hz/60Hz +5 Hz (+10%) |
Output Voltage | 220VAC1230VAC1240VAC (Adjustable) |
Waveform | Pure Sinewave |
Battery Type | 6 pulse |
PHASE | 3Phase |
Frequency Stability | ± 1% |
Short-circuit Capability | 60~100ms |
Connection Type | Hardwire 3-wire(1Ph+N+G) |
Crest Factor | 3:01 |
Rated output voltage | 384 VDC |
Operating Temperature | 0-35c |
Size(mm) | 656 x405 x817 |
Weight(Kgs) | 118/120/145/193/278 |
MODEL | Giant31-10k | Giant 31-15k | Giant31-20k | Giant31-30k | Giant 31-40k | |||||||
CAPACITY | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | |||||||
Input | ||||||||||||
Nominal Voltage | 3*380VAC/400VAC(3PH + N or 3ph + N+ G | |||||||||||
Acceptable Voltage Range | 165VAC～280VAC (Ph-N)/285VAC~485VAC (Ph-Ph) | |||||||||||
Frequency | 50Hz/60Hz±5 Hz(±10%) | |||||||||||
INVERTER | ||||||||||||
Nominal Voltage | 220VAC/230VAC/240VAC(Adjustable) | |||||||||||
Waveform | Pure Sinewave | |||||||||||
Output Voltage Stability | Steady state | ±1% | ||||||||||
Transient state | ±5% | |||||||||||
Frequency | 50 Hz/60 Hz | |||||||||||
Frequency Stability | ±1% | |||||||||||
Frequency Synchronisation Range | ±5Hz(Equal to bypass working range) | |||||||||||
Frequency Synchronisation Speed | 1~2 Hz/s | |||||||||||
Power Factor | 0.8 | |||||||||||
Crest Factor | 3:1 | |||||||||||
Total Harmonic Distortion (THDv) | <2%(Linear Load);<5%(Non-linear Load) | |||||||||||
Dynamic in-rush Voltage Range | 0%>100%->0%(R Load)100%->20%(R Load)±3% | |||||||||||
Dynamic Recovery Time (III Grade) | 0%~100%RCD load;<60 ms recover to 90%of nominal voltage | |||||||||||
Transfer Time | 0 ms | |||||||||||
Overload Capability | 0%～110%continuous running;110%～150%for 10 min~1 min;>160%for 200ms | |||||||||||
Short-circuit Capability | 60~100ms | |||||||||||
Transient Response Time | <5ms | |||||||||||
BYPASS | ||||||||||||
Connection Type | Hardwire 3-wire (1Ph+N+G) | |||||||||||
Input Voltage Range | 220VAC±25% | |||||||||||
Overload Capability/Short-circuit Capability | 1.5 In~1.8 In 1h~30s | |||||||||||
1.8 In~>2.0 In 30s~200ms | ||||||||||||
SYSTEM | ||||||||||||
Efficiency (@linear load ) | ≥88% | ≥90% | ||||||||||
ECO Mode (Non-parallel models) | Yes | |||||||||||
EPO Function | Yes | |||||||||||
Standard | IEC 61000-4-5 Protection surge,IEC 62040-2 EMC/EMI,IEC62040-1 Safety | |||||||||||
BATTERY &CHARGER | ||||||||||||
Rectifier | Type | 6 pulse | ||||||||||
Rated output voltage | 384 VDC | |||||||||||
Charger voltage | 190VDC~435VDC(Adjustable) | |||||||||||
Charging current(max) | Default 10A,Maximum=Capacity/Battery Voltage | Default 10A,Maximum 40A,5A@Full load | ||||||||||
Battery | Type | Support VRLA Battery | ||||||||||
Numbers | 32 pcs (29～32 adjustable) | |||||||||||
Cold Start | Yes | |||||||||||
PHYSICAL | ||||||||||||
IP Protection | IP20 (Default),IP21/IP31 (Option) | |||||||||||
Dimensions,DxWxH(mm) | 656x405x817 | 821x432x1159 | 821x432x1159 | |||||||||
Net Weight (Kgs) | 118 | 120 | 145 | 193 | 278 | |||||||
ENVIRONMENT | ||||||||||||
Operating Temperature | 0~35°C continuous running,40℃ 8-hour running at nomina linput voltage,recharging batteries and no overload 45°C derating to 85%with linear load | |||||||||||
Operating Humidity | 0~90%(non-condensing) | |||||||||||
Noise Level | Less than 70dB @1 Meter | |||||||||||
MANAGEMENT | ||||||||||||
Modbus RS-232/RS485 | Supports WindowsB Family,Linux and MAC | |||||||||||
Dry Contacts | 6 outputs and 2 inputs | |||||||||||
Optional SNMP | Power management from SNMP manager and web browser | |||||||||||
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
