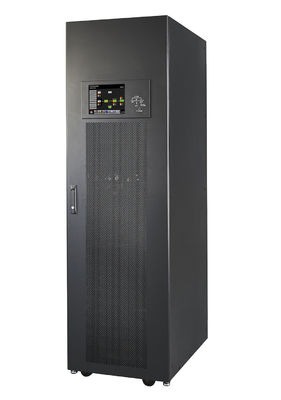

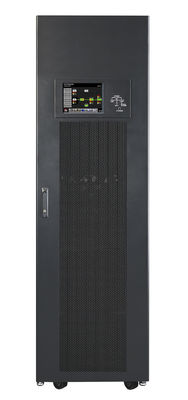

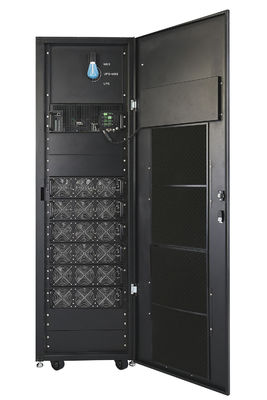

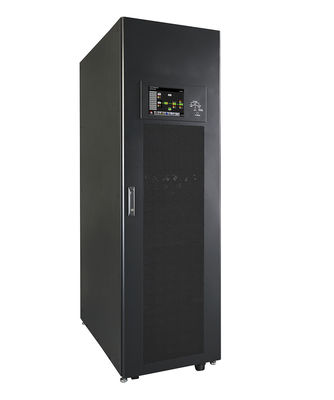

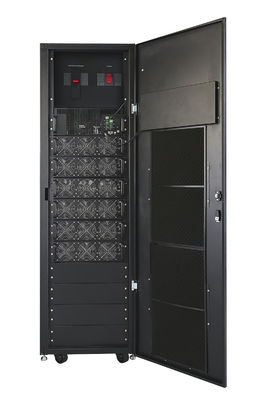

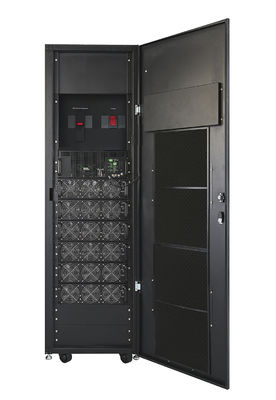

Visench APlus 50kw Power Module 3 Phase UPS 300KVA 350KVA 400KVA 500KVA Online UPS
Product Summary
Product nameAPlus（50kw power module）Rated Capacity300kva-500kvaPower Factor0.99Input Voltage3 x 380/400/415 VAC (3Ph+N)Frequency50/60HzOutput Voltage3 x 380/400/415 VAC (3Ph+N)Temperature CompensationYesBattery TypeExternal BatteryPHASE3-phase in / 3-phase outHarmonic Distortion< 4% @ 100% ...
Key Attributes
Brand Name:
Visench
Model Number:
Visench APlus 50kw Power Module
Place of Origin:
Guangdong, China
Price:
$1,296.00 - $6,669.00/pieces
Product Custom Attributes
Highlight
50kw 3 phase UPS module
,300KVA online UPS power module
,500KVA UPS with warranty
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Computer/networking
Electric Energy:
50000 Wh
Product Name:
APlus(50kw Power Module)
Rated Capacity:
300kva-500kva
Power Factor:
0.99
Input Voltage:
3 X 380/400/415 VAC (3Ph+N)
Output Voltage:
3 X 380/400/415 VAC (3Ph+N)
Frequency:
50 To 60Hz
Temperature Compensation:
Yes
Battery Type:
External Battery
Size(mm):
850 X600x2000
Weight(Kgs):
490/545/654/932/1020
Product Description
Product name | APlus（50kw power module） |
Rated Capacity | 300kva-500kva |
Power Factor | 0.99 |
Input Voltage | 3 x 380/400/415 VAC (3Ph+N) |
Frequency | 50/60Hz |
Output Voltage | 3 x 380/400/415 VAC (3Ph+N) |
Temperature Compensation | Yes |
Battery Type | External Battery |
PHASE | 3-phase in / 3-phase out |
Harmonic Distortion | < 4% @ 100% load |
Operating Temperature | 0~40°C |
Efficiency | 96.00% |
Frequency Range | 40Hz~70Hz |
Relative Humidity | 0~95% non-condensing |
Altitude* | <1000m for Nominal power |
Size(mm) | 850 x600x2000 |
Weight(Kgs) | 490/545/654/932/1020 |
MODEL | A+42U-300(PM-50)S | A+42U-300(PM-50) | A+42U-350(PM-50) | A+420-400(PM-50) | A+42U-500(PM-50) | |||||
PHASE | 3-phase in/3-phase out | |||||||||
CABINET CAPACITY* | 300KW | 300KW | 350KW | 400KW | 500KW | |||||
BATTERY TYPE | Fxfomal Battery | |||||||||
ONE POWER MODULE CAPACITY | 50KVA/50KW | |||||||||
MAX.POWER MODULE NO | 6 | 6 | 7 | 8 | 10 | |||||
PHYSICAL | ||||||||||
Cabinet Dimension (D xW x H)mm | 850x600x 2000 | 1065x600×2010 | 1100x600x2010 | 1100x600x2010 | 1065x1000x2000 | |||||
Net Weight (Kg) | 490 | 545 | 654 | 932 | 1020 | |||||
INPUT | ||
Nominal Votage | 3x380/400/415 VAC (3Ph+N) | |
Voltage Range | -20% ~+15% | |
Nominad Frequency | 50160Hz(Auto Sensing) | |
Fneguency Range | 40Hz~70Hz | |
Power Factor | >0.99 100%Load,>0.98 @50%Load | |
Harmonic Distortion (THDi) | <4%@100%load | |
OUTPUT | ||
Nominal Votage | 3x380/4001415 VAC(3Ph+N) | |
Valtage Regulation(Steady state) | ≤±1%Typical (balanced load);≤±2%Typlcal (unbalanced laad) | |
Nominad Frequency | 50V60Hz | |
Frequency Range(Synchronized) | 46Hz~54Hz or 56Hz～64Hz | |
Overdrload Capability | hour for ≤110%,10 mins tor 111%~125%,1 min for 126%~150 and 200ms tor>150% | |
Harmonic Distortion | ≤2%THD(Linear Load);≤4%THD(Non-linear Load) | |
Eficiency | 96% | |
BATTERY/CHARGER | ||
Nominal Valtage | +/_192V~-240V (Selectabe) | |
Maximum Voltage | +/_240V (12Vx 40 Pcs) | |
Minimum Voitage | +/_192V (12Vx32 Pcs) | |
Floating Charge Vltage | 2.28V/Cell(2.25~2.33 Selectable) | |
Boost Charging Voltage | 2.35W/Cell | |
Temperature Compensation | Yes | |
Maximum Charging Current (Per Power Module) | 12A(Adjustable) | |
ENVIRONMENT | ||
Operating Temperature | 0~40℃ | |
Relative Humidi | 0~95%non-condensing | |
Altitude* | ＜1000m tor Nominal Power | |
IP Protection | IP 20 | |
MANAGEMENT | ||
Smart RS-232/USB | Supports Windows Family.Linux and MAC | |
Optional SNMP | Power management from SNMP manager and web browser | |
STANDARDS | ||
Safety | IEC/EN 62040-1 | |
EMC | IEC/EN 62040-2 Category C3 | |
