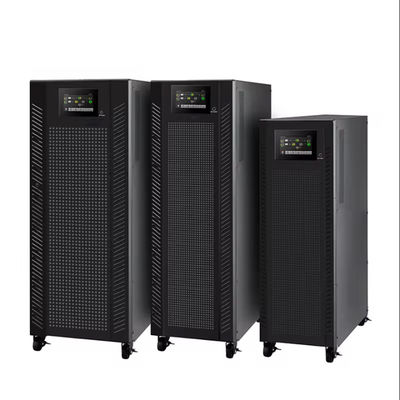

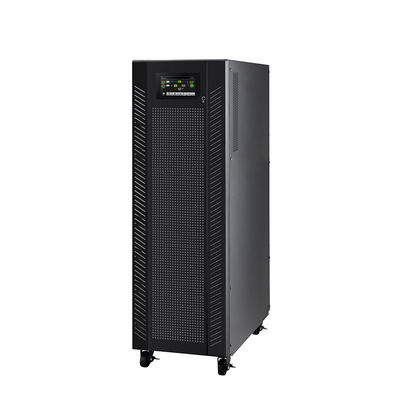

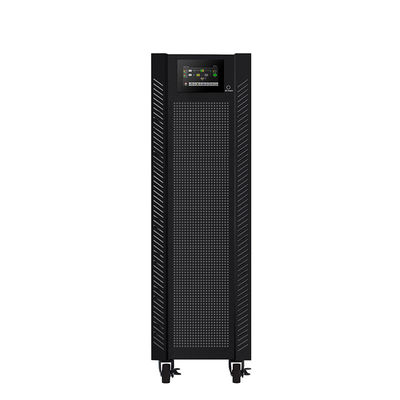

10KVA 20KVA 30KVA 40KVA PF 0.99 Three Phase Online Tower Pure Sine Wave Power Supply UPS
Product Summary
MODEL10K(L）15K（L)20K(L)30KL40KLPHASE3-phase in/3-phase outCAPACITY10KVA/10KW15KVA/15KW20KVA/20KW30KVA/30KW40KV /40KWINPUTHominsl Voltage3x208/220 VAC(Ph-Ph) 3x120/127 VAC (Ph-N)Voltage Range138~270 VAC(3-phase)@50%load;173~253 VAC(3-phase)@100%load 80~156 VAC(Ph-N) 50%load;100~148 VAC(Ph-N)@100...
Key Attributes
Brand Name:
Visench
Model Number:
Visench Galleon II
Place of Origin:
Guangdong, China
Price:
$905.00 - $1,773.00/pieces
Product Custom Attributes
Highlight
Three Phase Online UPS
,Pure Sine Wave Power Supply
,Tower UPS with PF 0.99
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Networking
Electric Energy:
10000 Wh
Product Name:
Galleon Ll 3-phase In/3-phase Out
Rated Capacity:
10KVA-40KVA
Power Factor:
0.99
Input Voltage:
3 X 360/380/400/415 VAC
Output Voltage:
3 X 360/380/400/415 VAC
Frequency:
40~70 HZ
Waveform:
Pure Sine Wave
PHASE:
3Ph In/ 3Ph Out
Inverter To Bypass:
Zero
Size(mm):
630 X 250 X 826
Product Description
MODEL | 10K(L） | 15K（L) | 20K(L) | 30KL | 40KL | |||||
PHASE | 3-phase in/3-phase out | |||||||||
CAPACITY | 10KVA/10KW | 15KVA/15KW | 20KVA/20KW | 30KVA/30KW | 40KV /40KW | |||||
INPUT | ||||||||||
Hominsl Voltage | 3x208/220 VAC(Ph-Ph) 3x120/127 VAC (Ph-N) | |||||||||
Voltage Range | 138~270 VAC(3-phase)@50%load;173~253 VAC(3-phase)@100%load 80~156 VAC(Ph-N) 50%load;100~148 VAC(Ph-N)@100%load | |||||||||
Frequency Range | 46~54 Hz or 56~64Hz | |||||||||
Power Factor | ≥0.99 @100%Load | |||||||||
OUTPUT | ||||||||||
Quput Voltage | 3x208/220 VAC(Ph-Ph) 3x120/127 VAC(Ph-N) | |||||||||
AC Voltage Regulation (Batt.Mode） | ±1% | |||||||||
Frequency Range (Synchrenized Range) | 46~54Hz or 56~64Hz | |||||||||
Frequency Range (Batt.Mode) | 50Hz±0.1Hz or 60 Hz±0.1 Hz | |||||||||
Current Crest Rati | 3:1(max） | |||||||||
Harmonic Distortion | ≤2%THD(Linear Load); ≤4%THD (Non-linear Load PF≥0.8) | |||||||||
Transfer Time AC Mode to Batt.Mode | Zero | |||||||||
Transfer Time Inverter to Bypass | Zero | |||||||||
Waveform (Balt.Mode) | Pure Sine wave | |||||||||
Overload AC Mode | 100-110%for 1 hr,110-130%for 1 min,>130%for 1 second | |||||||||
Overload Battery Mode | 100-110%for 30 seconds,110-130%for 10 seconds,>130%far 1 second | |||||||||
EFFICIENCY | ||||||||||
AC Mode | 93% | |||||||||
ECO Mode | 97% | |||||||||
Baltery Mode | 92.5% | |||||||||
BATTERY | ||||||||||
Standanm Mode | ||||||||||
Battery Type | 12 V/9 Ah | 12 V/9 Ah | 12 V/9 Ah | 12 V/7 Ah | 12 V/9 Ah | |||||
Numbers | (10+10)pcs x 1 string Optiona for max.2 strings | (10+10)pcs x 2 strings Optional for max.3 strings | (10+10)pcs x 3 strings | NA | ||||||
Typical Recharge Time | 9 hours recover to 90%capacity | |||||||||
Charging Current (max.) | 1A~12A(Adiustable Max.12A | 4ABN12A.(Aditable) Optional parallel up to Max.20A | ||||||||
Charging Voltage | +/-C33136.5 VDC±10% | |||||||||
Long-run Mode | ||||||||||
Batery Type | Depending on the capacity of extemal batteries | |||||||||
Numbers | 18~20 pes (Adjustable) | |||||||||
Charging Current (max) | 1A~12A(Adjustable) Max.12A | 4A/8A/12A(Adjustable) Optional parallel up to Max.20A | 8AN/18A/24A(Adjustable) | |||||||
Charging Woltage | +/-13.65V*N (N =8~10) | |||||||||
NDICATORS | ||||||||||
LCD Display | UPS status,Load level,Battery level,Input/Output valtage.Discharge timer,and Fault conditions | |||||||||
PHYSICAL | ||||||||||
Standard Model Dimension,DxWsH (mm) | 867x250x826 | 865x300x 1020 | NA | |||||||
Standard Model Net Weight (kgs) | 95 | 181 | 231 | |||||||
Long-nun Mode Dimension,DxWxH (mm) | 887x250x82 | 865x300x1020 | 790x420x1200 | |||||||
Long-nun Mode Net Weight (kgs) | 45 | 80 | 81 | 150 | 160 | |||||
ENVIRONMENT | ||||||||||
Operation Temperture | 0-40°C | |||||||||
Operation Humidity | <95%and non-condersing | |||||||||
Noise Level | Less than 60dB @ Meter | Less than 70dB @1 Meter | Less than 75dB@ 1 Meter | |||||||
MANAGEMENT | ||||||||||
Smart RS-232/USB | Supports Windows2000/2003/XPNista/2008,Windows*7/8/10,Linux and MAC | |||||||||
Optional SNMP | Power management from SNMP manager and web browser | |||||||||
Product name | Galleon ll 3-phase in/3-phase out |
Rated Capacity | 10KVA-40KVA |
Power Factor | 0.99 |
Input Voltage | 3 x 360/380/400/415 VAC |
Frequency | 40~70 HZ |
Output Voltage | 3 x 360/380/400/415 VAC |
Waveform | Pure Sine wave |
Battery Type | 12V/9AH |
PHASE | 3Ph in/ 3Ph out or 3Ph in 1Ph out or 1Ph in 1Ph out |
Harmonic Distortion | ≤2%THD (Linear Load) ;≤ 5 % THD (Non-inear Load) |
Current Crest Ratio | 3:1(max.) |
Battery Mode | 94.50% |
Frequency Range | 46~54 Hz or 56~64H2 |
Inverter to Bypass | Zero |
Typical Recharge Time | 9 hours recover to 90% capacity |
Size(mm) | 630 x 250 x 826 |
Weight(Kgs) | 127/139/207/233 |
