Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center

Quality Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center factory
Quality Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center factory
Quality Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center factory
Quality Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center factory
Quality Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center factory

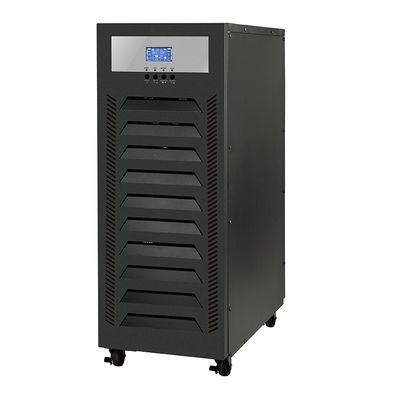

Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center

Product Summary

Product nameGiant Elite 1p1pRated Capacity6kva-10kvaVoltage Regulation± 1%Input Voltage208VAC1220VAC1230VACFrequency40 Hz~ 55 Hz @ 50Hz system ; 56 Hz~ 64 Hz @ 60Hz systemOutput Voltage208VAC1220VAC/230VACWaveformPure SinewaveBattery Type12V/ 9AhPHASESingle phase with groundHarmonic Distortion≦ 3 % ...

Key Attributes
Brand Name: Visench
Model Number: Visench Giant Elite
Place of Origin: Guangdong, China
Price: $591.00 - $780.00/pieces
Product Custom Attributes
Highlight

6KVA pure sine wave UPS

,

10KVA single phase UPS

,

data center online UPS

Warranty:
1year
Phase:
Single Phase
Protection:
Short Circuit
Type:
On-line
Application:
Telecommunications
Electric Energy:
50000 Wh
Product Name:
Giant Elite 1p1p
Rated Capacity:
6kva-10kva
Voltage Regulation:
± 1%
Input Voltage:
208VAC1220VAC1230VAC
Output Voltage:
208VAC1220VAC/230VAC
Waveform:
Pure Sine Wave
Inverter To Bypass:
Zero
Operating Temperature:
0 To 50°C
Size(mm):
592 X 300 X826
Weight(Kgs):
106/114/122/130/138
Product Description
Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 0
Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 1
Product name
Giant Elite 1p1p
Rated Capacity
6kva-10kva
Voltage Regulation
± 1%
Input Voltage
208VAC1220VAC1230VAC
Frequency
40 Hz~ 55 Hz @ 50Hz system ; 56 Hz~ 64 Hz @ 60Hz system
Output Voltage
208VAC1220VAC/230VAC
Waveform
Pure Sinewave
Battery Type
12V/ 9Ah
PHASE
Single phase with ground
Harmonic Distortion
≦ 3 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)
Current Crest Ratio
3:01
Battery Mode
92.00%
Frequency Range
45Hz~ 55 Hz or 56 Hz~ 64 HZ
Inverter to Bypass
Zero
Operating Temperature
0 ~ 50°C
Size(mm)
592 x 300 x826
Weight(Kgs)
106/114/122/130/138
Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 2
Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 3
Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 4
Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 5
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.

Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 6
Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 7
Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 8
Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 9
Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 10
Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 11
Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 12
Visench Giant Elite 6KVA 7.5KVA 10KVA Pure Sine Wave Single Phase UPS for Data Center 13
1. May I take some samples to test before I placing the order?
Yes, we can offer sample testing for you to verify product quality and performance.

2. What is the warranty?
We support 1 years warranty.

3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.

4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.

5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
