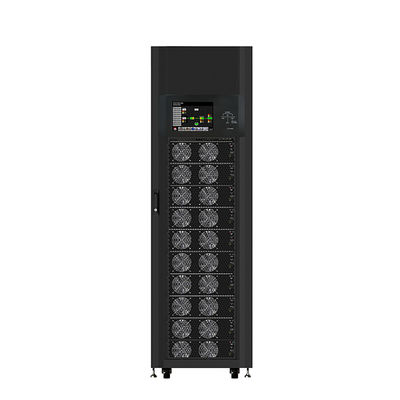

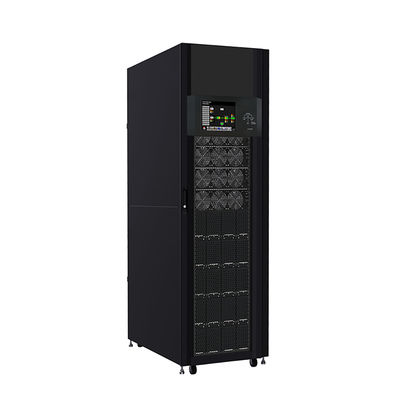

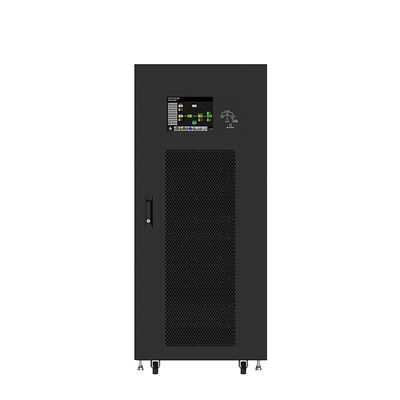

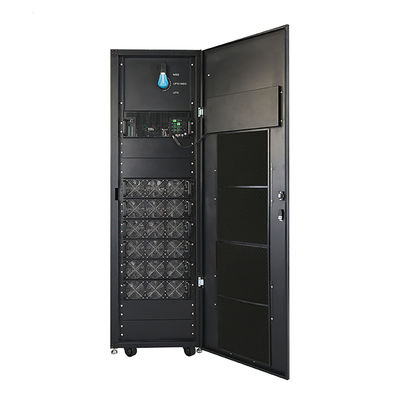

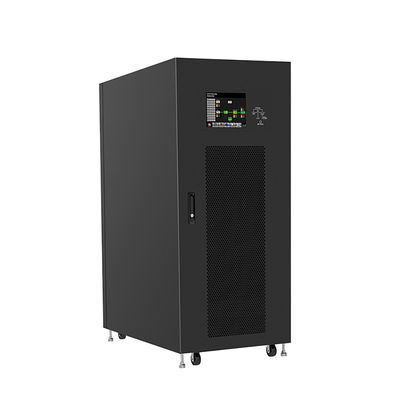

50KVA-500KVA 3 Phase UPS With For Computer/Networking Visench APlus 50kw Power Module
Product nameAPlus（50kw power module）Rated Capacity300kva-500kvaPower Factor0.99Input Voltage3 x 380/400/415 VAC (3Ph+N)Frequency50/60HzOutput Voltage3 x 380/400/415 VAC (3Ph+N)Temperature CompensationYesBattery TypeExternal BatteryPHASE3-phase in / 3-phase outHarmonic Distortion< 4% @ 100% ...
3 phase UPS for computer networking
,50kw power module UPS
,online UPS with warranty
Product name | APlus（50kw power module） |
Rated Capacity | 300kva-500kva |
Power Factor | 0.99 |
Input Voltage | 3 x 380/400/415 VAC (3Ph+N) |
Frequency | 50/60Hz |
Output Voltage | 3 x 380/400/415 VAC (3Ph+N) |
Temperature Compensation | Yes |
Battery Type | External Battery |
PHASE | 3-phase in / 3-phase out |
Harmonic Distortion | < 4% @ 100% load |
Operating Temperature | 0~40°C |
Efficiency | 96.00% |
Frequency Range | 40Hz~70Hz |
Relative Humidity | 0~95% non-condensing |
Altitude* | <1000m for Nominal power |
Size(mm) | 850 x600x2000 |
Weight(Kgs) | 490/545/654/932/1020 |
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
-
