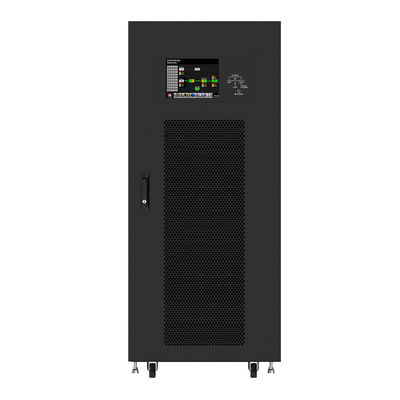

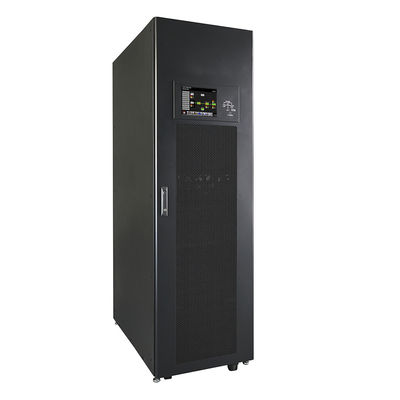

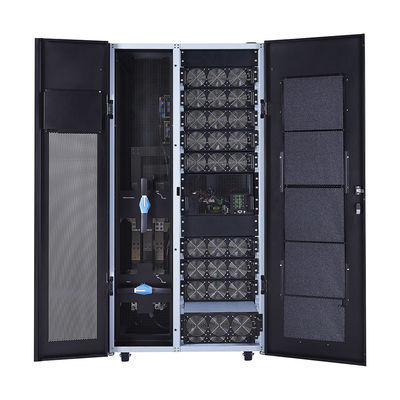

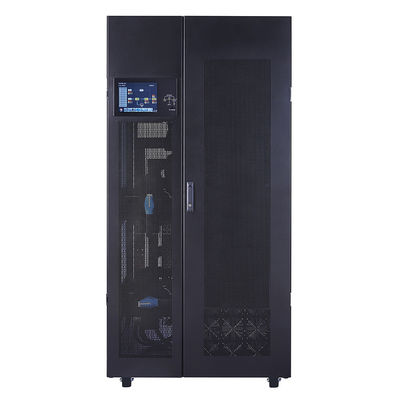

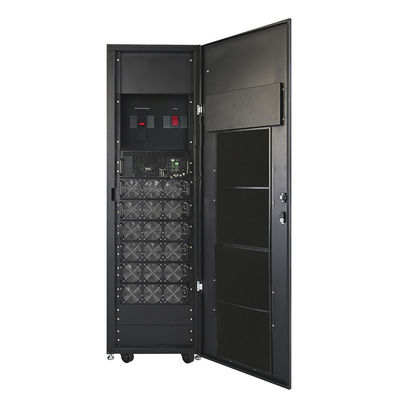

Stable Visench APlus 60kw Power Module 300KVA 420KVA 480KVA 600KVA PF 0.99 Online UPS for Computer/Networking
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Visench |
| Model Number | Visench APlus 60kw Power Module |
| Price | $1,620.00 - $7,869.00/pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1year | Phase | Three Phase |
|---|---|---|---|
| Protection | Short Circuit | Type | On-line |
| Application | Computer/networking | Electric Energy | 60000 Wh |
| Product Name | APlus(60kw Power Module) | Rated Capacity | 60KVA-600KVA |
| Power Factor | 0.99 | Input Voltage | 3 X 380/4001415 VAC (3Ph+N) |
| Frequency | 40Hz To 70Hz | Output Voltage | 3 X 380/4001415 VAC (3Ph+N) |
| Battery Type | External Battery | PHASE | 3-phase In / 3-phase Out |
| Size(mm) | 100x600X1475 | Weight(Kgs) | 308/352/516/654/932/1020 |
Product Description
Product name | APlus（60kw power module） |
Rated Capacity | 120KVA-600KVA |
Power Factor | 0.99 |
Input Voltage | 3 x 380/4001415 VAC (3Ph+N) |
Frequency | 40Hz ~70Hz |
Output Voltage | 3 x 380/4001415 VAC (3Ph+N) |
Altitude* | <1000m for Nominal power |
Battery Type | External Battery |
PHASE | 3-phase in / 3-phase out |
Harmonic Distortion | < 3% @ 100% load |
Eficiency | 96% |
Safety | IEC/EN 62040-1 |
Frequency Range | 46Hz~ 54Hz or 56Hz~ 64Hz |
EMC | IEC/EN 62040-2 Category c3 |
Operating Temperature | 0~40°C |
Size(mm) | 100x600X1475 |
Weight(Kgs) | 308/352/516/654/932/1020 |
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
