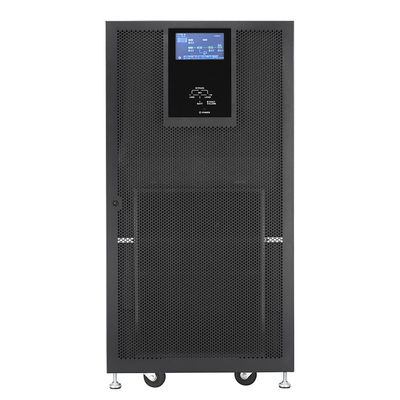

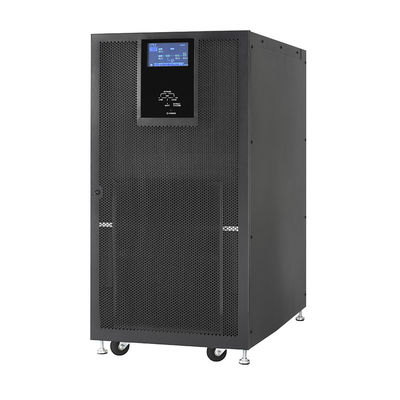

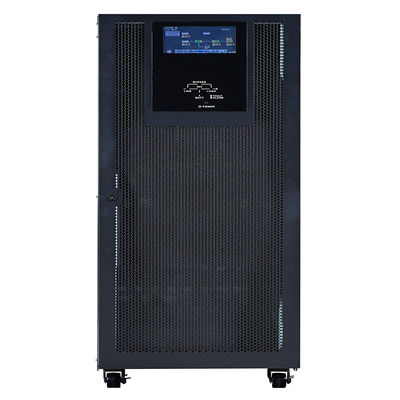

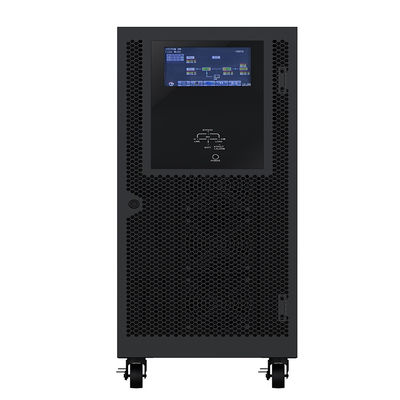

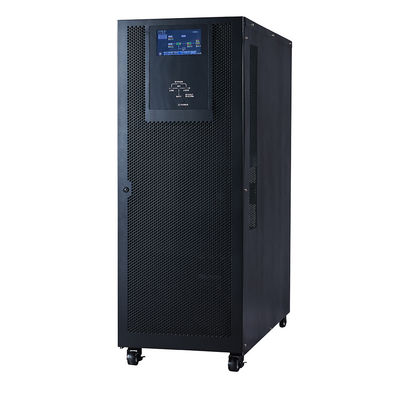

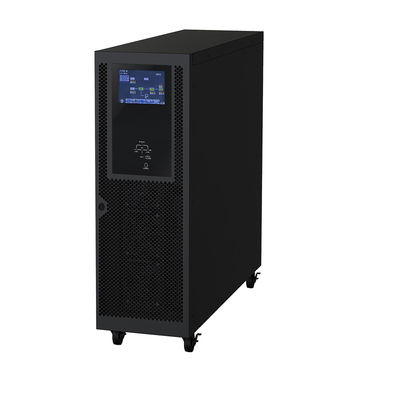

Visench Fortress 60KVA 80KVA 100KVA 120KVA 180KVA 200KVA 240KVA 300KVA Online UPS For Networking
Product nameFortress 3p3pRated Capacity60KVA-300KVAPower Factor0.99Input Voltage3 x 38014001415 VAC (3Ph+N)Frequency40Hz ~70HzOutput Voltage3 x 38014001415 VAC (3Ph+N)IP ClassIP20Battery TypeExternal BatteryPHASE3-phase in / 3-phase outHarmonic Distortion≤ 2% THD (Linear Load);≤ 4% THD (Non-linear ...
60KVA online UPS for networking
,200KVA online UPS with warranty
,300KVA industrial online UPS
Product name | Fortress 3p3p |
Rated Capacity | 60KVA-300KVA |
Power Factor | 0.99 |
Input Voltage | 3 x 38014001415 VAC (3Ph+N) |
Frequency | 40Hz ~70Hz |
Output Voltage | 3 x 38014001415 VAC (3Ph+N) |
IP Class | IP20 |
Battery Type | External Battery |
PHASE | 3-phase in / 3-phase out |
Harmonic Distortion | ≤ 2% THD (Linear Load);≤ 4% THD (Non-linear Load) |
Temperature Compensation | Yes |
Battery Mode | 94.50% |
Frequency Range | 46Hz~ 54Hz or 56Hz~ 64HZ |
Altitude** | <1000m for Nominal power |
Operating Temperature | 0-40°C |
Size(mm) | 1000x320x800 |
Weight(Kgs) | 94/169/249/360 |
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
-
20KVA-200KVA High Frequency UPS Double Conversion Visench 3C3 Series UPS
Visench 3C3 series UPS 20KVA-200KVA Functions & features: On-line UPS DSP system IGBT technology CPU control 20KHz SPWM modulation Larger LCD display Double conversion
-
30KVA-300KVA Visench PT Modular UPS Manufacturers High Power Density
30KVA-300KVA Visench PT Modular UPS Functions&features: three in and three out ups, The product adopts modular design N+X parallel redundancy technique, Product capacity covers various power segments between 20kVA and 300kVA, facilitating flexible configuration and gradual investment by users.This series of UPS can solve almost all the power supply problems, such as power failure, mains high voltage, mains low voltage, voltage instantaneous sag, damping shock, high voltage
