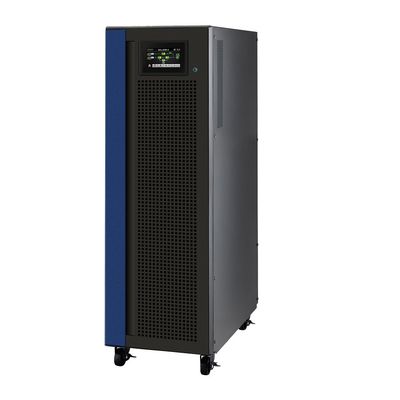

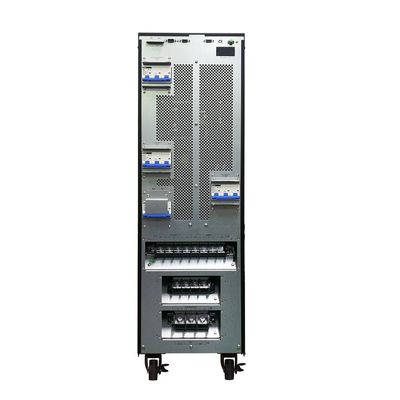

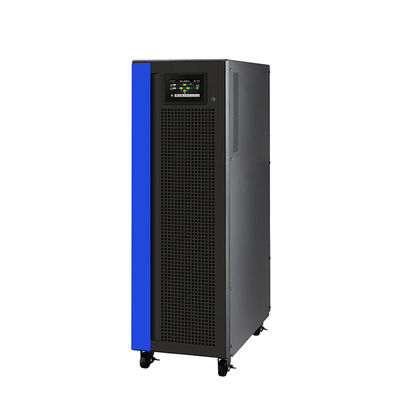

40KVA 3 Phase Pure Sine Wave Galleon III UPS for Telecommunications 0.99 Power Factor
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Visench |
| Model Number | Visench Galleon III |
| Price | $1,170.00 - $2,229.00/pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1year | Phase | Three Phase |
|---|---|---|---|
| Protection | Short Circuit | Type | On-line |
| Application | Telecommunications | Electric Energy | 10000 Wh |
| Product Name | Galleon III 3p3p | Rated Capacity | 10KVA-40KVA |
| Power Factor | 0.99 | Input Voltage | 3 X 360/380/400/415 VAC(3Ph+N) |
| Frequency | 40~70 HZ | Output Voltage | 3 X 360*1380*/400/415 VAC (3Ph+N) |
| Waveform | Pure Sine Wave | Battery Type | 12V/9Ah |
| Size(mm) | 630 X 250 X 826 | Weight(Kgs) | 37/43/56 |
Product Description
Product name | Galleon III 3p3p |
Rated Capacity | 10KVA-40KVA |
Power Factor | 0.99 |
Input Voltage | 3 x 360/380/400/415 VAC(3Ph+N) |
Frequency | 40~70 HZ |
Output Voltage | 3 x 360*1380*/400/415 VAC (3Ph+N) |
Waveform | Pure Sine wave |
Battery Type | 12V/9Ah |
PHASE | 3Ph in/ 3Ph out or 3Ph in 1Ph out or 1Ph in 1Ph out |
Harmonic Distortion | ≤ 2% THD (Linear Load) ;≤ 5 % THD (Non-inear Load) |
Current Crest Ratio | 3:1(max.) |
Battery Mode | 94.50% |
Frequency Range | 46~54Hz or 56~64Hz |
Inverter to Bypass | Zero |
Operating Temperature | 0-40°C |
Size(mm) | 630 x 250 x 826 |
Weight(Kgs) | 37/43/56 |
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
1. May I take some samples to test before I placing the order?
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
