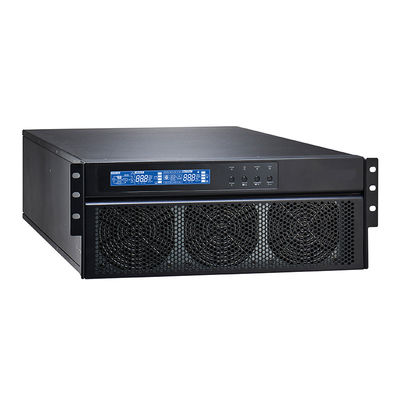

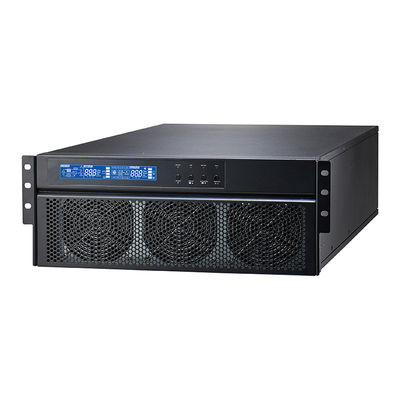

10KVA-60KVA Visench Galleon II Rack Online UPS for Security/Monitoring/Alarm
Product Summary
Product nameGalleon II 3P3P RackRated Capacity10KVA-60KVAPower Factor0.99Input Voltage208*122012301240 VAC(Ph-N)Frequency46~54 Hz or 56~64HzOutput Voltage3 x 360*/380/4001415 VAC(3Ph+N)or 208*12201230/240 VAC (Ph-N)WaveformPure Sine waveBattery TypeDepending on the applicationsPHASE3-phase in/ 3...
Key Attributes
Brand Name:
Visench
Model Number:
Visench Galleon II Rack
Place of Origin:
Guangdong, China
Price:
$999.00 - $2,621.00/pieces
Product Custom Attributes
Highlight
10KVA-60KVA rack online UPS
,Visench Galleon II UPS for security systems
,online UPS with monitoring alarm compatibility
Warranty:
1year
Phase:
Three Phase
Protection:
Short Circuit
Type:
On-line
Application:
Security / Monitoring / Alarm
Electric Energy:
10000 Wh
Product Name:
Galleon II 3P3P Rack
Rated Capacity:
10KVA-60KVA
Power Factor:
0.99
Input Voltage:
208/220/230/240 VAC(Ph-N)
Output Voltage:
3 X 360*/380/4001415 VAC(3Ph+N)or 208*12201230/240 VAC (Ph-N)
Waveform:
Pure Sine Wave
Battery Type:
Depending On The Applications
Inverter To Bypass:
Zero
Size(mm):
680 X 438 X 133
Weight(Kgs):
27/30/32/34/45
Product Description
Product name | Galleon II 3P3P Rack |
Rated Capacity | 10KVA-60KVA |
Power Factor | 0.99 |
Input Voltage | 208*122012301240 VAC(Ph-N) |
Frequency | 46~54 Hz or 56~64Hz |
Output Voltage | 3 x 360*/380/4001415 VAC(3Ph+N)or 208*12201230/240 VAC (Ph-N) |
Waveform | Pure Sine wave |
Battery Type | Depending on the applications |
PHASE | 3-phase in/ 3-phase out |
Harmonic Distortion | ≤ 2 % THD (Linear Load) ; ≤ 5 % THD (Non-inear Load) |
Current Crest Ratio | 3:1(max.) |
Battery Mode | 94.50% |
Frequency Range | 46~54Hz or 56~64Hz |
Inverter to Bypass | Zero |
Operating Temperature | 0-40°C |
Size(mm) | 680 x 438 x 133 |
Weight(Kgs) | 27/30/32/34/45 |
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
1. May I take some samples to test before I placing the order?
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
-
